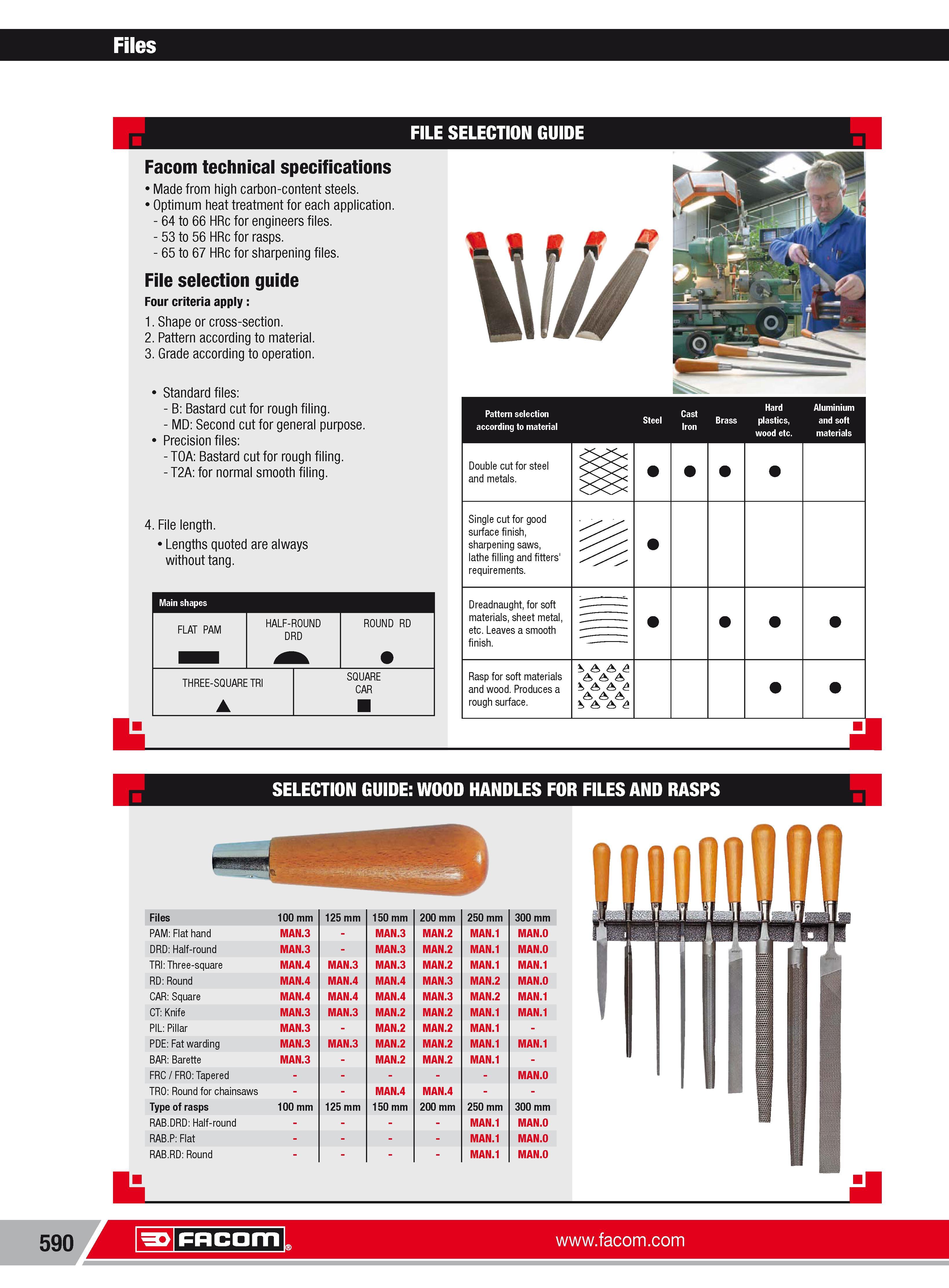

Files d FILE SELECTION GUIDE Facom technical specifications Made from high carbon-content steels. Optimum heat treatment for each application. 64 to 66 HRc for engineers files. 53 to 56 HRc for rasps. 65 to 67 HRc for sharpening files. File selection guide Four criteria apply 1. Shape orcross-section. 2. Pattern according to material. 3. Grade according to operation. Standard files B Bastard cut for rough filing. MD Second cut for general purpose. Precision files -TOA Bastard cut for rough filing. T2A for normal smooth filing. 4. File length. Lengths quoted are always without tang. Main shapes FLAT PAM HALF-ROUND DRD ROUND RD THREE-SQUARE TRI SQUARE CAR Pattern selection according to material Double cut for steel and metals. Hard plastics wood etc. Aluminium and soft materials Single cutfor good surface finish sharpening saws lathe Ailing and fitters' requirements. Dreadnaught for soft materials sheet metal etc. Leaves a smooth finish. Rasp for soft materials and wood. Produces a rough surface. b A A AAA b A A AAA h A A SELECTION GUIDE WOOD HANDLES FOR FILES AND RASPS Files 100 mm 125 mm 150 mm 200 mm 250 mm 300 mm PAM Flat hand MAN.3 MAN.3 MAN.2 MAN.1 MAN.0 DRD Half-round MAN.3 MAN.3 MAN.2 MAN.1 MAN.0 TRI Three-square MAN.4 MAN.3 MAN.3 MAN.2 MAN.1 MAN.1 RD Round MAN.4 MAN.4 MAN.4 MAN.3 MAN.2 MAN.0 CAR Square MAN.4 MAN.4 MAN.4 MAN.3 MAN.2 MAN.1 CT Knife MAN.3 MAN.3 MAN.2 MAN.2 MAN.1 MAN.1 PIL Pillar MAN.3 MAN.2 MAN.2 MAN.1 PDE Fat warding MAN.3 MAN.3 MAN.2 MAN.2 MAN.1 MAN.1 BAR Barette MAN.3 MAN.2 MAN.2 MAN.1 FRC FRO Tapered MAN.0 TRO Round for chainsaws MAN.4 MAN.4 Type of rasps 100 mm 125 mm 150 mm 200 mm 250 mm 300 mm RAB.DRD Half-round MAN.1 MAN.0 RAB.P Flat MAN.1 MAN.0 RAB.RD Round MAN.1 MAN.0 590 Facom Cast Iron Steel Brass
