592 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.566

Каталог FACOM 2013 Инструмент Оборудование Стр. 566 0592 ENG Lab2u

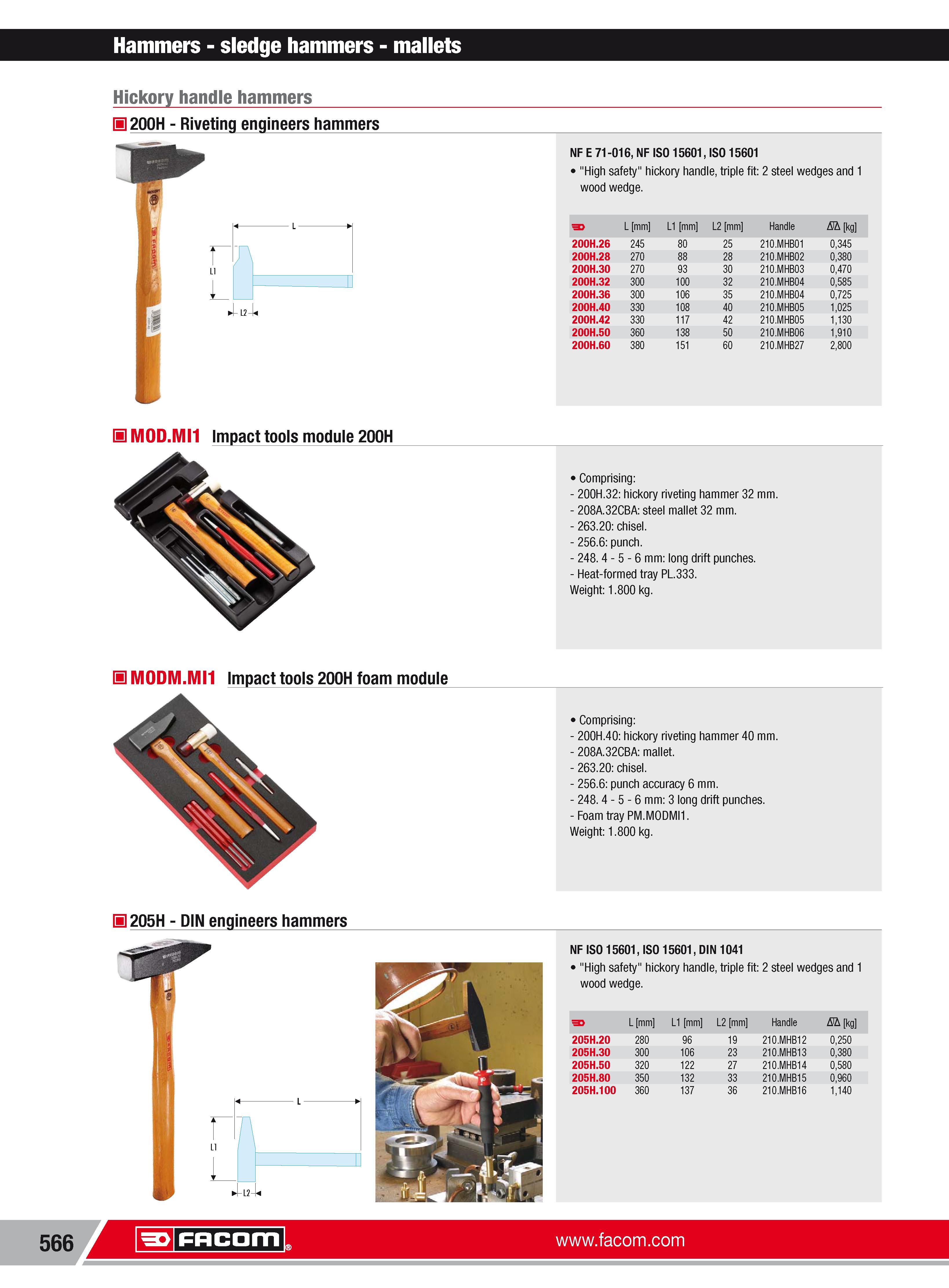

Hammers sledge hammers mallets Hickory handle hammers 200H Riveting engineers hammers NF E 71-016 NF ISO 15601 ISO 15601 "High safety" hickory handle triple fit 2 steel wedges and 1 wood wedge. 'A L24 H MOD.MI1 Impact tools module 200H Comprising 200H.32 hickory riveting hammer 32 mm. 208A.32CBA steel mallet 32 mm. 263.20 chisel. 256.6 punch. 248.4- 5 -6 mm long drift punches. Heat-formed tray PL.333. Weight 1.800 kg. H MODM.MI1 Impact tools 200H foam module Comprising 200H.40 hickory riveting hammer 40 mm. 208A.32CBA mallet. 263.20 chisel. 256.6 punch accuracy 6 mm. 248.4- 5 -6 mm 3 long drift punches. Foam tray PM.MODMI1. Weight 1.800 kg. 205H DIN engineers hammers NF ISO 15601 ISO 15601 DIN 1041 "High safety" hickory handle triple fit 2 steel wedges and 1 wood wedge. L mm L1 mm L2 mm Handle EL kg 205H.20 280 96 19 210.MHB12 0250 205H.30 300 106 23 210.MHB13 0380 205H.50 320 122 27 210.MHB14 0580 205H.80 350 132 33 210.MHB15 0960 205H.100 360 137 36 210.MHB16 1140 566 Facom M
