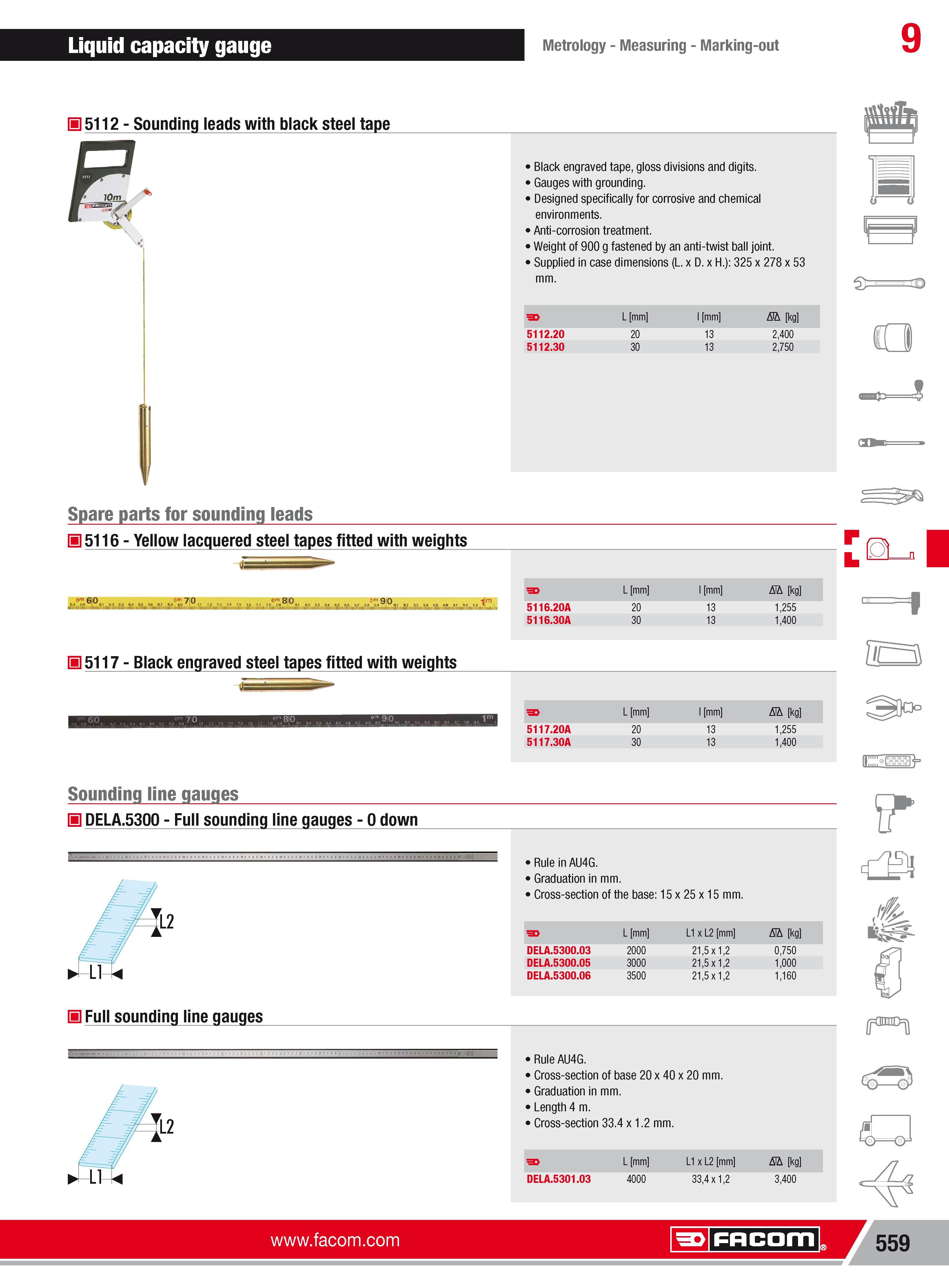

Liquid capacity gauge Metrology Measuring Marking-out 9 5112 Sounding leads with black steel tape Black engraved tape gloss divisions and digits. Gauges with grounding. Designed specifically for corrosive and chemical environments. Anti-corrosion treatment. Weight of 900 g fastened by an anti-twist ball joint. Supplied in case dimensions (L. xD.x H.) 325 x 278 x 53 mm. L mm l mm Nh kg 5112.20 20 13 2400 5112.30 30 13 2750 Spare parts for sounding leads 5116 Yellow lacquered steel tapes fitted with weights 5116.20A 5116.30A L mm 20 30 5117 Black engraved steel tapes fitted with weights 5117.20A 5117.30A L mm 20 30 l mm 13 13 l mm 13 13 Nh kg 1255 1400 Nh kg 1255 1400 s Sounding line gauges H DELA.5300 Full sounding line gauges 0 down Rule in AU4G. Graduation in mm. Cross-section of the base 15x25x15 mm. L mm L1 x L2 mm Nh kg DELA.5300.03 2000 215x12 0750 DELA.5300.05 3000 215x12 1000 DELA.5300.06 3500 215x12 1160 IB Full sounding line gauges Facom Rule AU4G. Cross-section of base 20 x 40 x 20 mm. Graduation in mm. Length 4 m. Cross-section 33.4 x 1.2 mm. 3 L mm L1 x L2 mm Nh kg DELA.5301.03 4000 334x12 3400 Facom 559
