456 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.430

Каталог FACOM 2013 Инструмент Оборудование Стр. 430 0456 ENG Lab2u

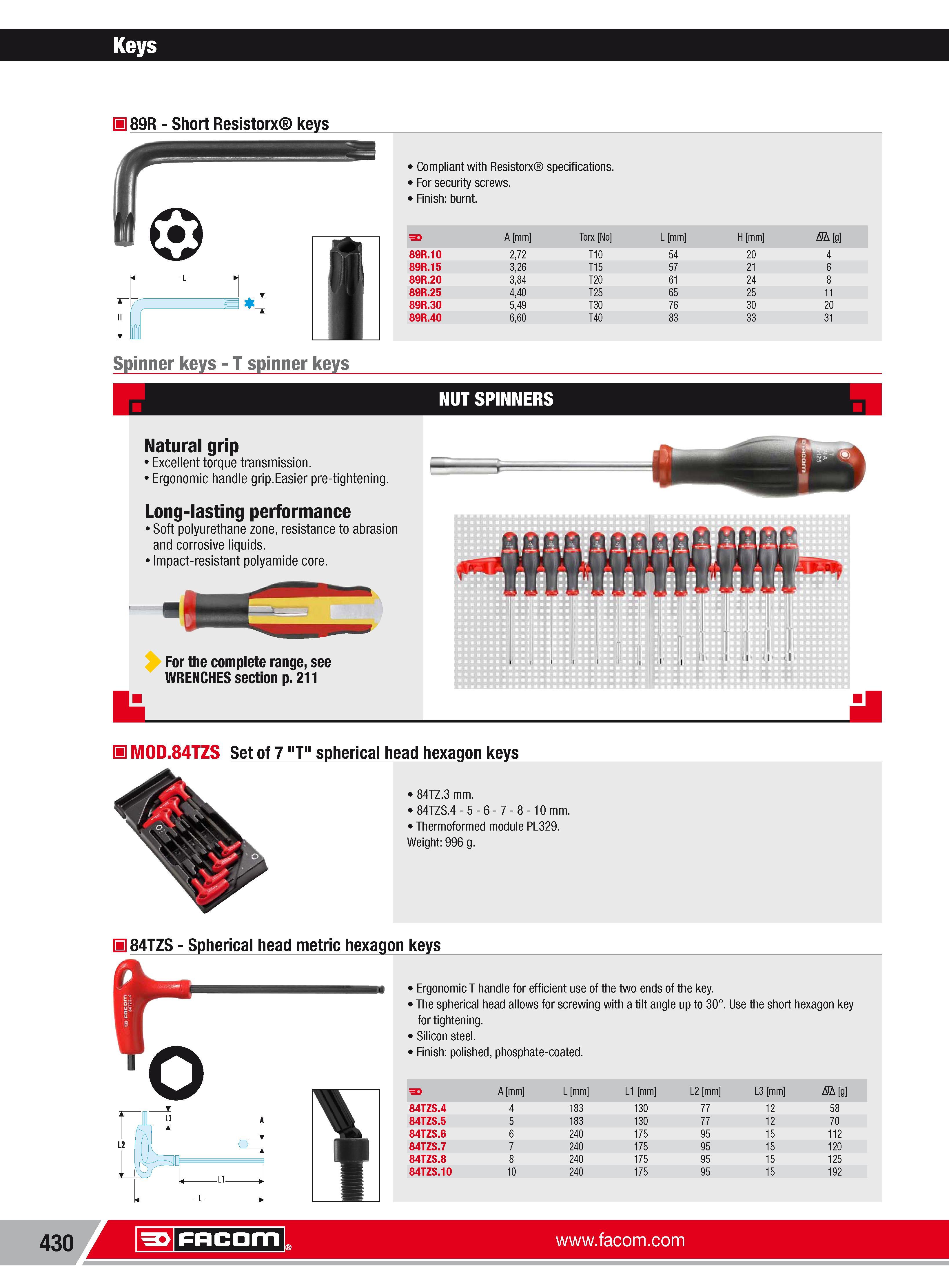

Keys H 89R Short Resistorx keys Spinner keys T spinner keys Compliant with Resistorx specifications. For security screws. Finish burnt. 3 A mm Torx No L mm H mm Nh g 89R.10 272 T10 54 20 4 89R.15 326 T15 57 21 6 89R.20 384 T20 61 24 8 89R.25 440 T25 65 25 11 89R.30 549 T30 76 30 20 89R.40 660 T40 83 33 31 NUT SPINNERS Natural grip Excellent torque transmission. Ergonomic handle grip.Easier pre-tightening. Long-lasting performance Soft polyurethane zone resistance to abrasion and corrosive liquids. Impact-resistant polyamide core. For the complete range see WRENCHES section p. 211 H MOD.84TZS Set of 7 "T" spherical head hexagon keys 84TZ.3 mm. 84TZS.4 -5-6-7-8-10 mm. Thermoformed module PL329. Weight 996 g. H 84TZS Spherical head metric hexagon keys Ergonomic Thandle for efficient use of the two ends of the key. The spherical head allows for screwing with a tilt angle up to 30. Use the short hexagon key for tightening. Silicon steel. Finish polished phosphate-coated. 3 A mm L mm L1 mm L2 mm L3 mm Nh g 84TZS.4 4 183 130 77 12 58 84TZS.5 5 183 130 77 12 70 84TZS.6 6 240 175 95 15 112 84TZS.7 7 240 175 95 15 120 84TZS.8 8 240 175 95 15 125 84TZS.10 10 240 175 95 15 192 430 Facom
