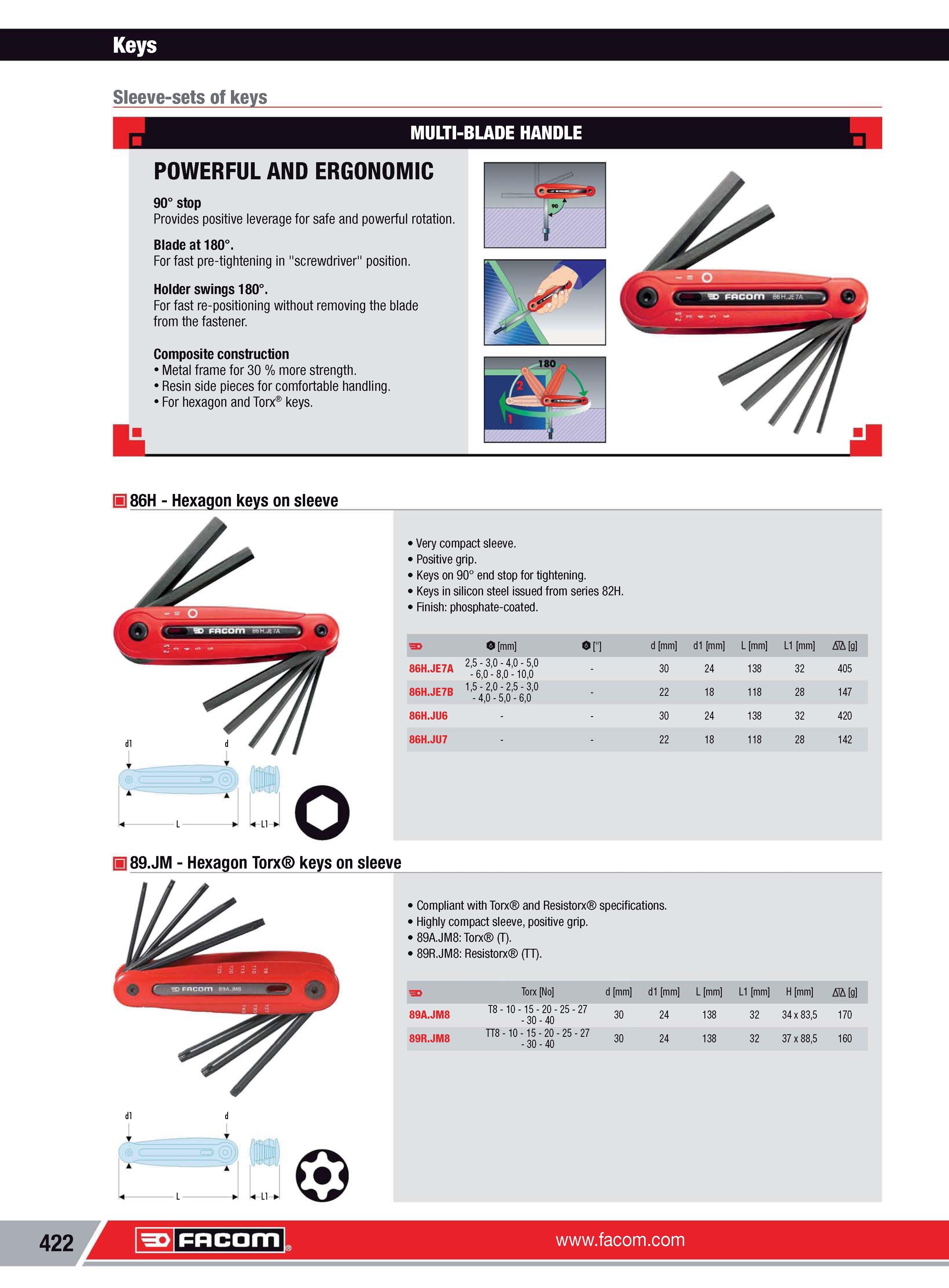

448 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.422

Каталог FACOM 2013 Инструмент Оборудование Стр. 422 0448 ENG Lab2u

Keys Sleeve-sets of keys MULTI-BLADE HANDLE POWERFUL AND ERGONOMIC 90 stop Provides positive leverage for safe and powerful rotation. Blade at 180. For fast pre-tightening in "screwdriver" position. Holder swings 180. For fast re-positioning without removing the blade from the fastener. Composite construction Metal frame for 30 more strength. Resin side pieces for comfortable handling. For hexagon and Torx keys. 86H Hexagon keys on sleeve Very compact sleeve. Positive grip. Keys on 90 end stop for tightening. Keys in silicon steel issued from series 82H. Finish phosphate-coated. 86H.JE7A 86H.JE7B 86H.JU6 86H.JU7 0 mm 2.5 30 40 50 60 80 100 1.5 20 25 30 40 50 60 d mm d1 mm L mm L1 mm m g 30 24 138 32 405 22 18 118 28 147 30 24 138 32 420 22 18 118 28 142 89.JM Hexagon Torx keys on sleeve 89A.JM8 89R.JM8 Torx No T8 10 15 20 25 27 30 40 TT8 10 15 20 25 27 30 40 34 x 835 37 x 885 Compliant with Torx and Resistorx specifications. Highly compact sleeve positive grip. 89A.JM8:Torx (T). 89R.JM8 Resistorx (TT). dl T LI 422 Facom
