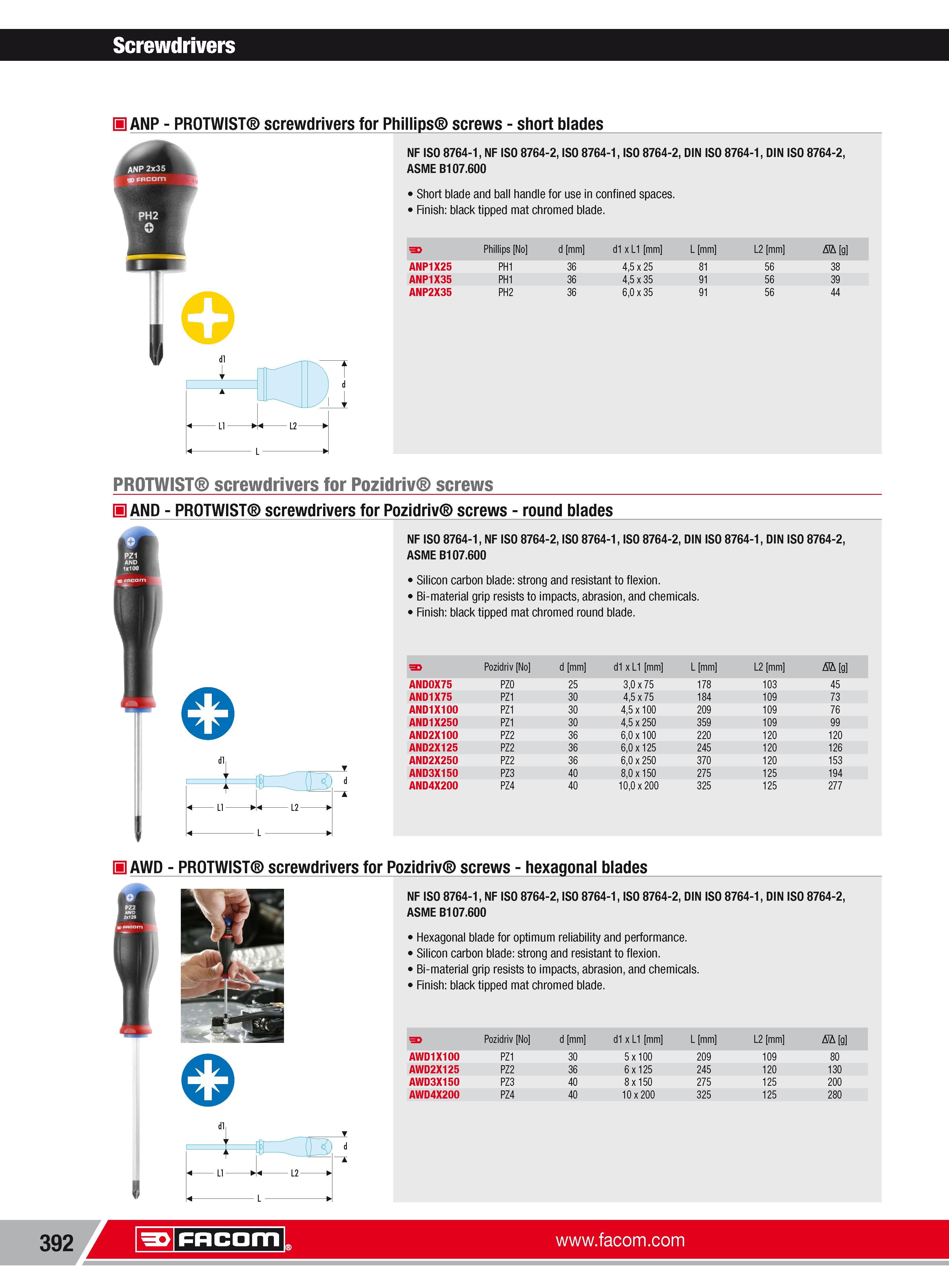

418 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.392

Каталог FACOM 2013 Инструмент Оборудование Стр. 392 0418 ENG Lab2u

Screwdrivers ANP PROTWIST screwdrivers for Phillips screws short blades NF ISO 8764-1 NF ISO 8764-2 ISO 8764-1 ISO 8764-2 DIN ISO 8764-1 DIN ISO 8764-2 ASME B107.600 Short blade and ball handle for use in confined spaces. Finish black tipped mat chromed blade. Phillips No d mm d1 x L1 mm L mm L2 mm Nh g ANP1X25 PH1 36 45 x 25 81 56 38 ANP1X35 PH1 36 45 x 35 91 56 39 ANP2X35 PH2 36 60 x 35 91 56 44 PROTWIST screwdrivers for Pozidriv screws AND PROTWIST screwdrivers for Pozidriv screws round blades NF ISO 8764-1 NF ISO 8764-2 ISO 8764-1 ISO 8764-2 DIN ISO 8764-1 DIN ISO 8764-2 ASME B107.600 Silicon carbon blade strong and resistant to flexion. Bi-material grip resists to impacts abrasion and chemicals. Finish black tipped mat chromed round blade. 3 Pozidriv No d mm d1 x L1 mm L mm L2 mm Nh g AND0X75 PZO 25 30 x 75 178 103 45 AND1X75 PZ1 30 45 x 75 184 109 73 AND1X100 PZ1 30 45 x 100 209 109 76 AND1X250 PZ1 30 45 x 250 359 109 99 AND2X100 PZ2 36 60 x 100 220 120 120 AND2X125 PZ2 36 60 x 125 245 120 126 AND2X250 PZ2 36 60 x 250 370 120 153 AND3X150 PZ3 40 80 x 150 275 125 194 AND4X200 PZ4 40 100 x 200 325 125 277 AWD PROTWIST screwdrivers for Pozidriv screws hexagonal blades NF ISO 8764-1 NF ISO 8764-2 ISO 8764-1 ISO 8764-2 DIN ISO 8764-1 DIN ISO 8764-2 ASME B107.600 Hexagonal blade for optimum reliability and performance. Silicon carbon blade strong and resistant to flexion. Bi-material grip resists to impacts abrasion and chemicals. Finish black tipped mat chromed blade. Pozidriv No d mm d1 x L1 mm L mm L2 mm Nh g AWD1X100 PZ1 30 5 x 100 209 109 80 AWD2X125 PZ2 36 6 x 125 245 120 130 AWD3X150 PZ3 40 8 x 150 275 125 200 AWD4X200 PZ4 40 10 x 200 325 125 280 392 Facom
