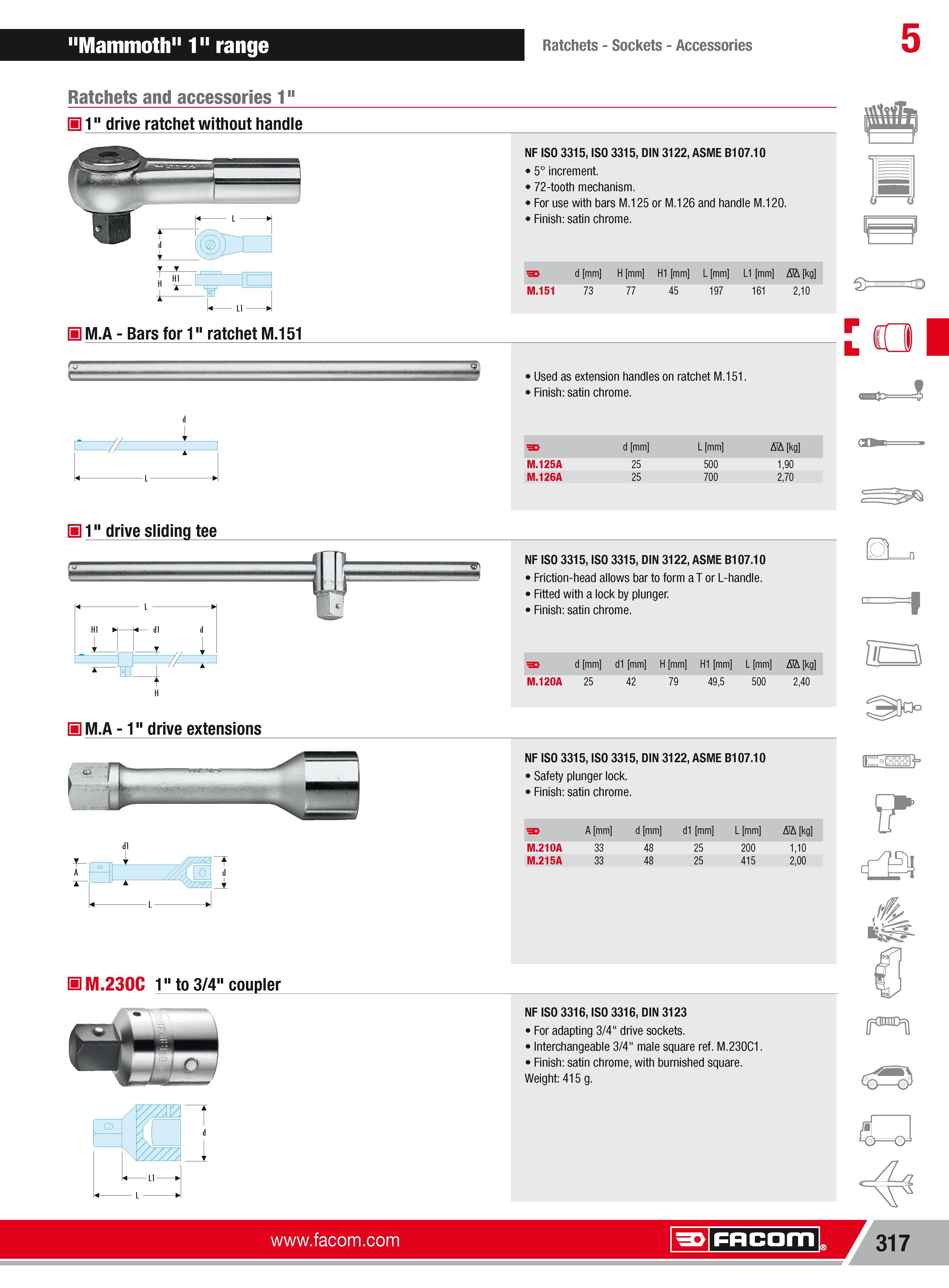

343 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.317

Каталог FACOM 2013 Инструмент Оборудование Стр. 317 0343 ENG Lab2u

"Mammoth" 1" range Ratchets Sockets Accessories 5 Ratchets and accessories 1" H1" drive ratchet without handle H M.A Bars for 1" ratchet M.151 NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 5 increment. 72-tooth mechanism. For use with bars M.125 or M.126 and handle M.120. Finish satin chrome. d mm H mm H1 mm L mm L1 mm AIA kg M.151 73 77 45 197 161 210 Used as extension handles on ratchet M.151. Finish satin chrome. L A 1" drive sliding tee H M.A 1" drive extensions i- A dl 1 A L d mm L mm Nh kg M.125A Cn 500 190 M.126A Cn 700 270 NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 Friction-head allows bar to form aTor L-handle. Fitted with a lock by plunger. Finish satin chrome. d mm d1 mm H mm H1 mm L mm Nh kg M.120A 25 42 79 495 500 240 NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 Safety plunger lock. Finish satin chrome. A mm d mm d1 mm L mm Nh kg M.210A 33 48 25 200 110 M.215A 33 48 25 415 200 M s I9M.230C 1" to 3/4" coupler O LI L NF ISO 3316 ISO 3316 DIN 3123 For adapting 3/4" drive sockets. Interchangeable 3/4" male square ref. M.230C1. Finish satin chrome with burnished square. Weight 415 g. Facom f Facom 317
