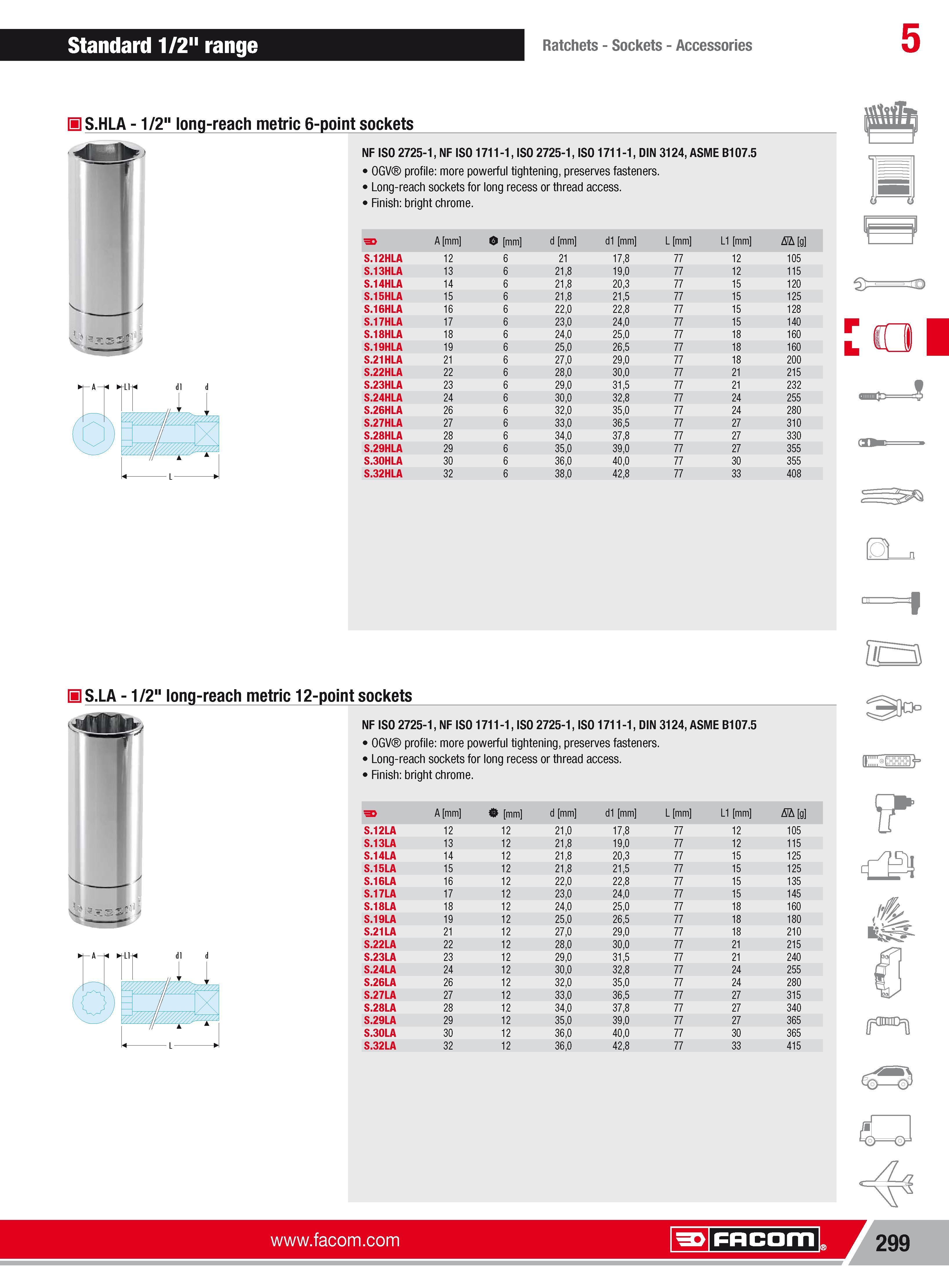

Standard 1/2" range Ratchets Sockets Accessories 5 H S.HLA 1/2" long-reach metric 6-point sockets NF ISO 2725-1 NF ISO 1711-1 ISO 2725-1 ISO 1711-1 DIN 3124 ASME B107.5 OGV profile more powerful tightening preserves fasteners. Long-reach sockets for long recess or thread access. Finish bright chrome. A mm 0 mm d mm d1 mm L mm L1 mm Nh g S.12HLA 12 6 21 178 77 12 105 S.13HLA 13 6 218 190 77 12 115 S.14HLA 14 6 218 203 77 15 120 S.15HLA 15 6 218 215 77 15 125 S.16HLA 16 6 220 228 77 15 128 S.17HLA 17 6 230 240 77 15 140 S.18HLA 18 6 240 250 77 18 160 S.19HLA 19 6 250 265 77 18 160 S.21HLA 21 6 270 290 77 18 200 S.22HLA 22 6 280 300 77 21 215 S.23HLA 23 6 290 315 77 21 232 S.24HLA 24 6 300 328 77 24 255 S.26HLA 26 6 320 350 77 24 280 S.27HLA 27 6 330 365 77 27 310 S.28HLA 28 6 340 378 77 27 330 S.29HLA 29 6 350 390 77 27 355 S.30HLA 30 6 360 400 77 30 355 S.32HLA 32 6 380 428 77 33 408 r S.LA 1/2" long-reach metric 12-point sockets NF ISO 2725-1 NF ISO 1711-1 ISO 2725-1 ISO 1711-1 DIN 3124 ASME B107.5 OGV profile more powerful tightening preserves fasteners. Long-reach sockets for long recess or thread access. Finish bright chrome. Facom 299
