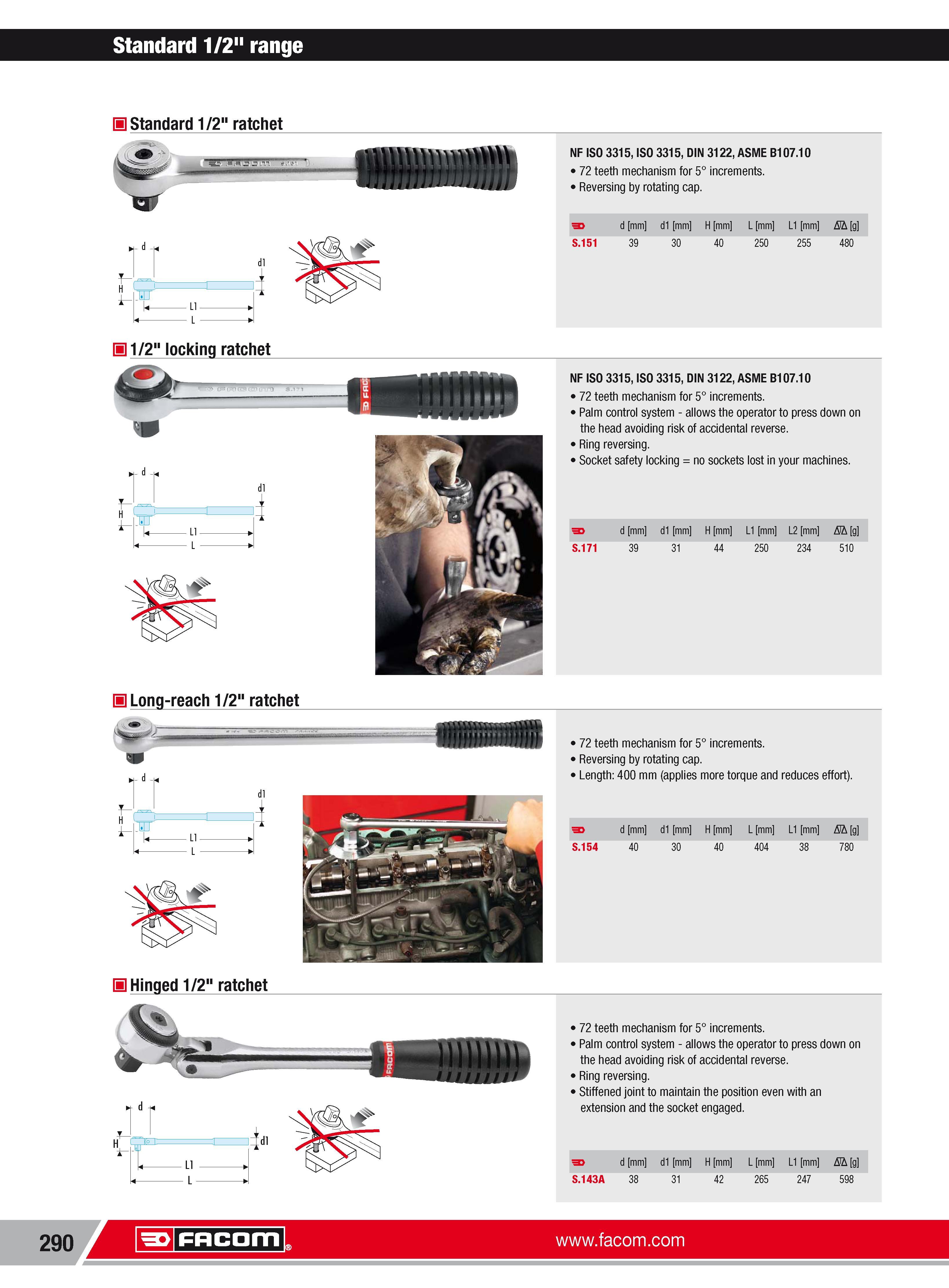

Standard 1/2" range H Standard 1/2" ratchet -d H r i Y Ll A L 1/2" locking ratchet -d i L1 L NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 72 teeth mechanism for 5 increments. Palm control system allows the operator to press down on the head avoiding risk of accidental reverse. Ring reversing. Socket safety locking no sockets lost in your machines. d mm dl mm H mm L1 mm L2 mm Nh g S.171 39 31 44 250 234 510 H Long-reach 1/2" ratchet -d T- H r l Y Ll A L 72 teeth mechanism for 5 increments. Reversing by rotating cap. Length 400 mm (applies more torque and reduces effort). d mm d1 mm H mm L mm L1 mm Nh g S.154 40 30 40 404 38 780 H Hinged 1/2" ratchet A dl LI L 72 teeth mechanism for 5 increments. Palm control system allows the operator to press down on the head avoiding risk of accidental reverse. Ring reversing. Stiffened joint to maintain the position even with an extension and the socket engaged. d mm d1 mm H mm L mm L1 mm IA g S.143A 38 31 42 265 247 598 290 dl dl dl d Facom
