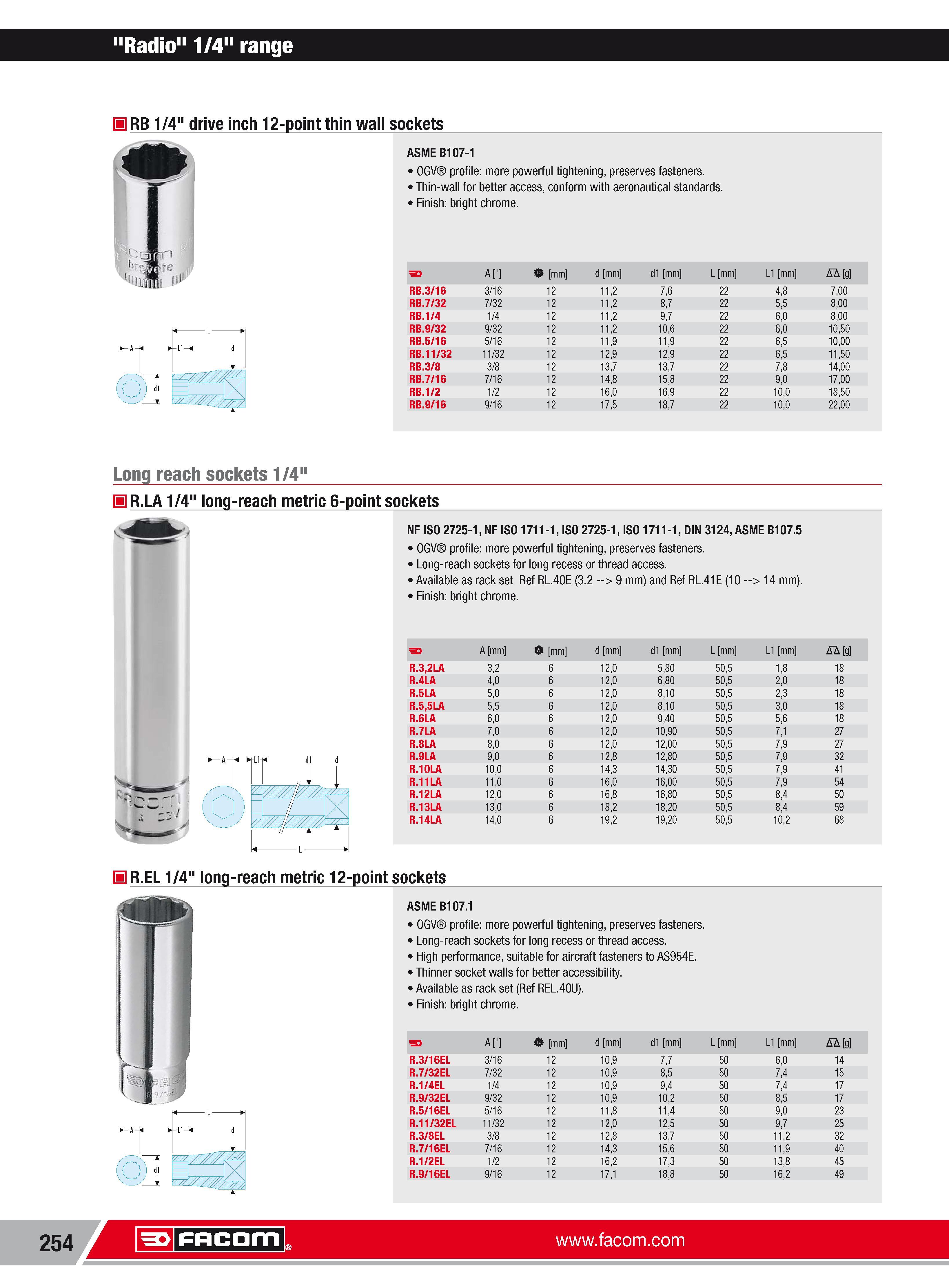

280 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.254

Каталог FACOM 2013 Инструмент Оборудование Стр. 254 0280 ENG Lab2u

"Radio" 1/4" range H RB 1/4" drive inch 12-point thin wall sockets d ASME B107-1 OGV profile more powerful tightening preserves fasteners. Thin-wall for better access conform with aeronautical standards. Finish bright chrome. Long reach sockets 1/4" H R.LA 1/4" long-reach metric 6-point sockets NF ISO 2725-1 NF ISO 1711-1 ISO 2725-1 ISO 1711-1 DIN 3124 ASME B107.5 OGV profile more powerful tightening preserves fasteners. Long-reach sockets for long recess or thread access. Available as rack set Ref RL.40E (3.2 9 mm) and Ref RL.41E(10-14 mm). Finish bright chrome. R.14LA 140 192 1920 505 102 H R.EL 1/4" long-reach metric 12-point sockets ASME B107.1 OGV profile more powerful tightening preserves fasteners. Long-reach sockets for long recess or thread access. High performance suitable for aircraft fasteners to AS954E. Thinner socket walls for better accessibility. Available as rack set (Ref REL.40U). Finish bright chrome. A " & mm d mm d1 mm L mm L1 mm Nh g R.3 16EL 3 16 12 109 77 50 60 14 R.7 32EL 7 32 12 109 85 50 74 15 R.1 4EL 1 4 12 109 94 50 74 17 R.9 32EL 9 32 12 109 102 50 85 17 R.5 16EL 5 16 12 118 114 50 90 23 R.11 32EL 11 32 12 120 125 50 97 25 R.3 8EL 3 8 12 128 137 50 112 32 R.7 16EL 7 16 12 143 156 50 119 40 R.1 2EL 1 2 12 162 173 50 138 45 R.9 16EL 9 16 12 171 188 50 162 49 254 Facom
