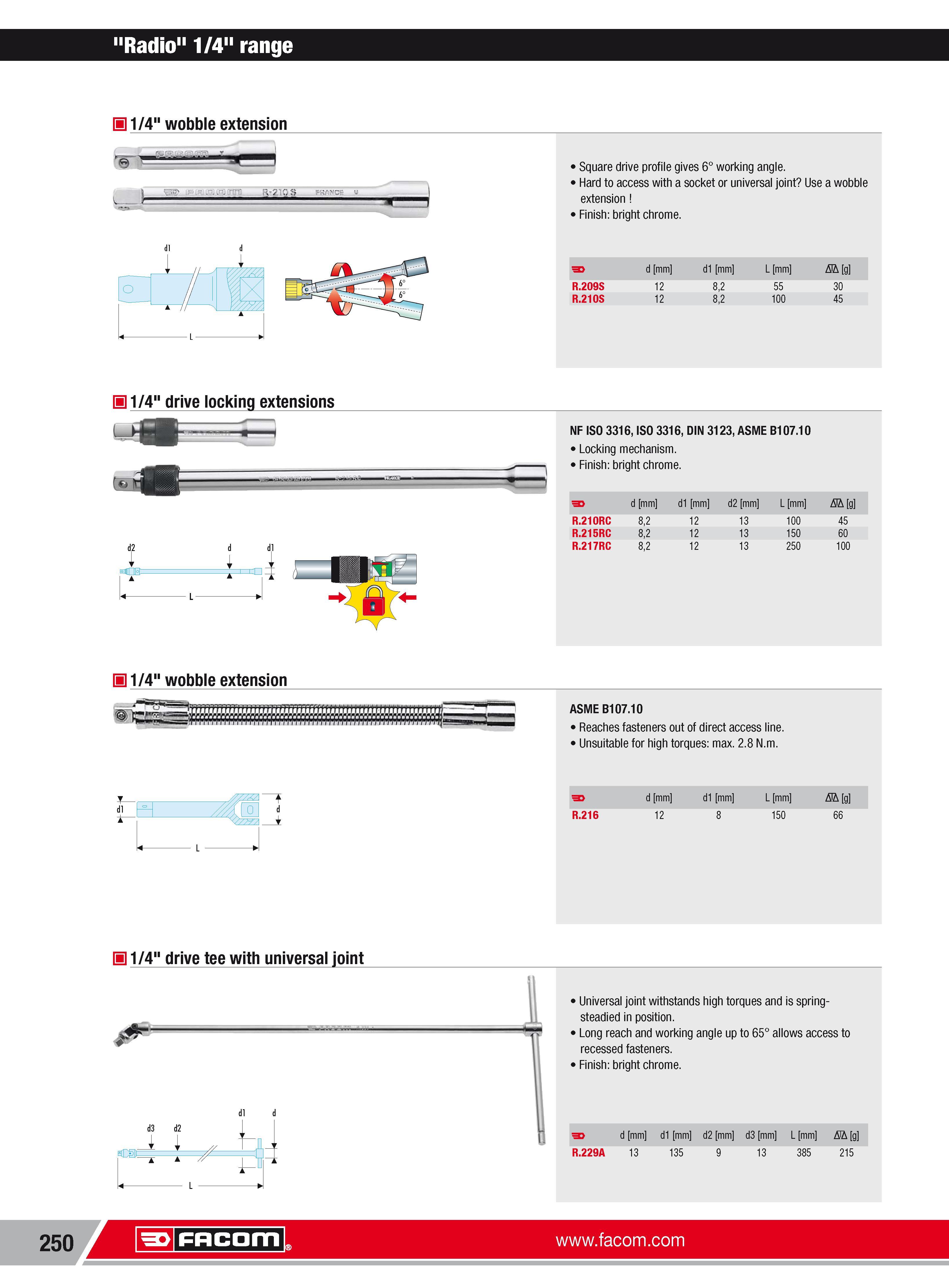

"Radio" 1/4" range 1/4" wobble extension v dl d Square drive profile gives 6 working angle. Hard to access with a socket or universal joint Use a wobble extension Finish bright chrome. d mm d1 mm L mm AIA g R.209S 12 82 55 30 R.210S 12 82 100 45 H1/4" drive locking extensions NF ISO 3316 ISO 3316 DIN 3123 ASME B107.10 Locking mechanism. Finish bright chrome. d mm d1 mm d2 mm L mm AA g R.210RC 2 8 12 13 100 45 R.215RC 82 12 13 150 60 R.217RC 82 12 13 250 100 H1/4" wobble extension dl mam L ASME B107.10 Reaches fasteners out of direct access line. Unsuitable for high torques max. 2.8 N.m. d mm dl mm L mm AA g R.216 12 8 150 66 H1/4" drive tee with universal joint dl d d3 d2 j ri f A L A 250 t Universal joint withstands high torques and is spring-steadied in position. Long reach and working angle up to 65 allows access to recessed fasteners. Finish bright chrome. d mm d1 mm d2 mm d3 mm L mm AA g R.229A 13 135 9 13 385 215 Facom
