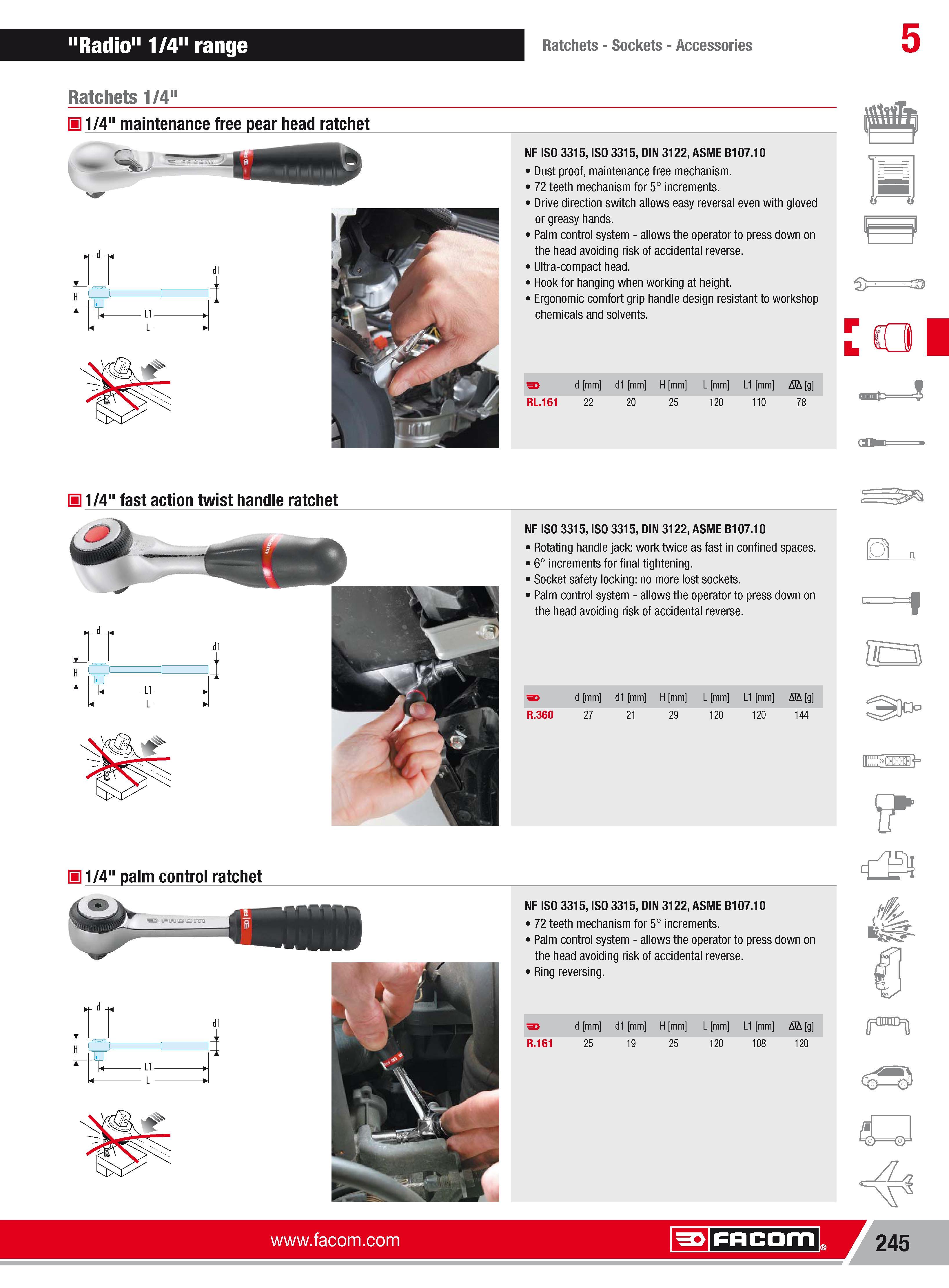

271 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.245

Каталог FACOM 2013 Инструмент Оборудование Стр. 245 0271 ENG Lab2u

"Radio" 1/4" range Ratchets Sockets Accessories 5 Ratchets 1/4" 1/4" maintenance free pear head ratchet H i 11 LI L NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 Dust proof maintenance free mechanism. 72 teeth mechanism for 5 increments. Drive direction switch allows easy reversal even with gloved or greasy hands. Palm control system allows the operator to press down on the head avoiding risk of accidental reverse. Ultra-compact head. Hook for hanging when working at height. Ergonomic comfort grip handle design resistant to workshop chemicals and solvents. d mm RL.161 22 d1 mm 20 H mm 25 L mm 120 L1 mm 110 Nh g 78 ID 1/4" fast action twist handle ratchet H1/4" palm control ratchet -d H 9 A i Ll L NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 Rotating handle jack work twice as fast in confined spaces. 6 increments for final tightening. Socket safety locking no more lost sockets. Palm control system allows the operator to press down on the head avoiding risk of accidental reverse. 3 d mm d1 mm H mm L mm L1 mm AIA g R.360 27 21 29 120 120 144 NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 72 teeth mechanism for 5 increments. Palm control system allows the operator to press down on the head avoiding risk of accidental reverse. Ring reversing. d mm d1 mm H mm L mm L1 mm Nh g R.161 25 19 25 120 108 120 M s Facom 245
