181 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.155

Каталог FACOM 2013 Инструмент Оборудование Стр. 155 0181 ENG Lab2u

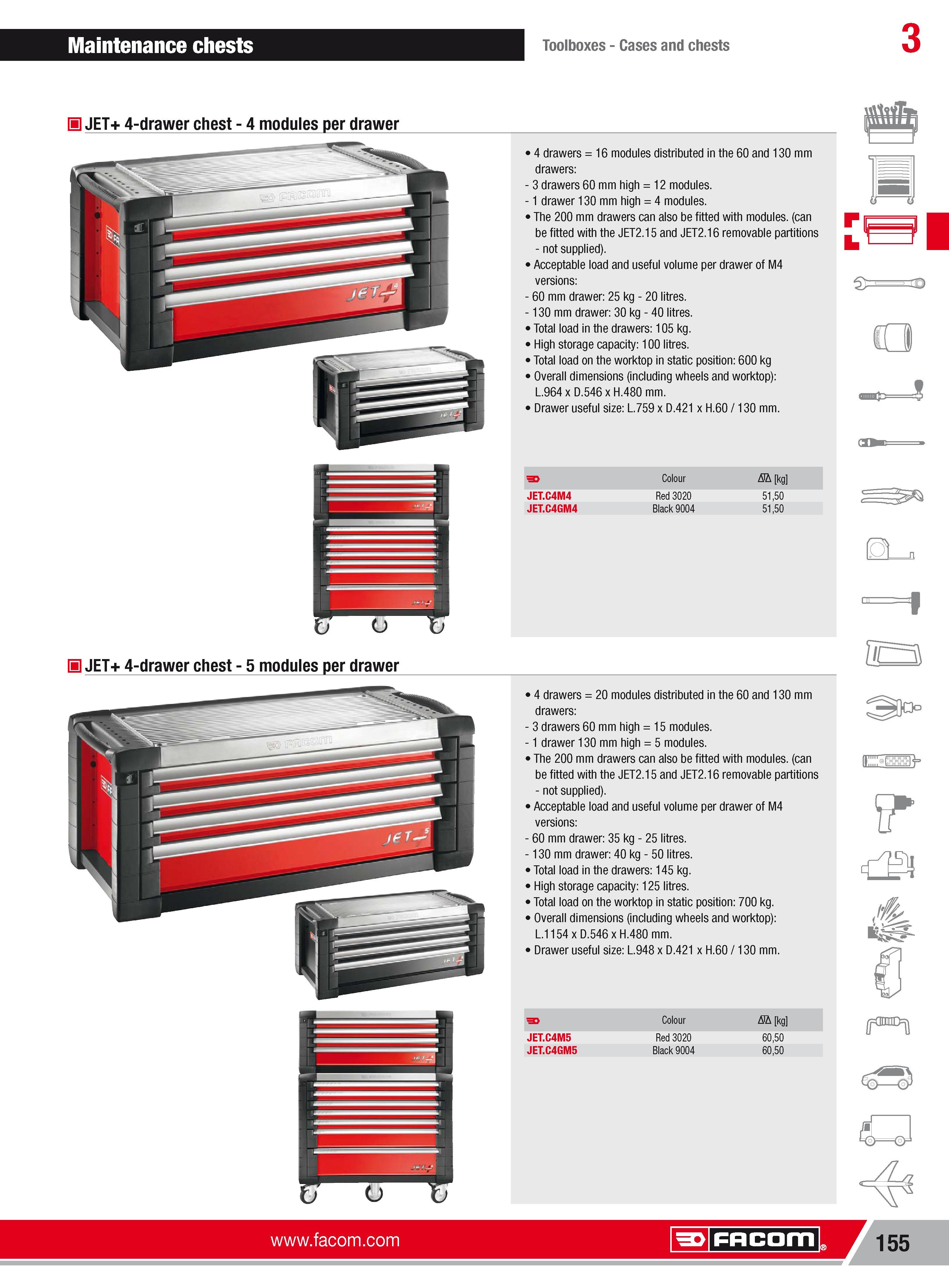

Maintenance chests Toolboxes Cases and chests 3 H JET+ 4-drawer chest 4 modules per drawer 4 drawers 16 modules distributed in the 60 and 130 mm drawers 3 drawers 60 mm high 12 modules. 1 drawer130 mm high 4 modules. The 200 mm drawers can also be fitted with modules (can be fitted with the JET2.15and JET2.16removable partitions not supplied). Acceptable load and useful volume per drawer of M4 versions 60 mm drawer 25 kg 20 litres. 130 mm drawer 30 kg 40 litres. Total load in the drawers 105 kg. High storage capacity 100 litres. Total load on the worktop in static position 600 kg Overall dimensions (including wheels and worktop) L.964 x D.546 x H.480 mm. Drawer useful size L.759 x D.421 x H.60 130 mm. Colour Sh kg JET.C4M4 Red 3020 5150 JET.C4GM4 Black 9004 5150 r JET+ 4-drawer chest 5 modules per drawer 4 drawers 20 modules distributed in the 60 and 130 mm drawers 3 drawers 60 mm high 15 modules. 1 drawer130 mm high 5 modules. The 200 mm drawers can also be fitted with modules (can be fitted with the JET2.15and JET2.16removable partitions not supplied). Acceptable load and useful volume per drawer of M4 versions 60 mm drawer 35 kg 25 litres. 130 mm drawer 40 kg 50 litres. Total load in the drawers 145 kg. High storage capacity 125 litres. Total load on the worktop in static position 700 kg. Overall dimensions (including wheels and worktop) L.1154xD.546xH.480 mm. Drawer useful size L.948 x D.421 x H.60 130 mm. Colour M kg JET.C4M5 Red 3020 6050 JET.C4GM5 Black 9004 6050 Facom 155 Facom
