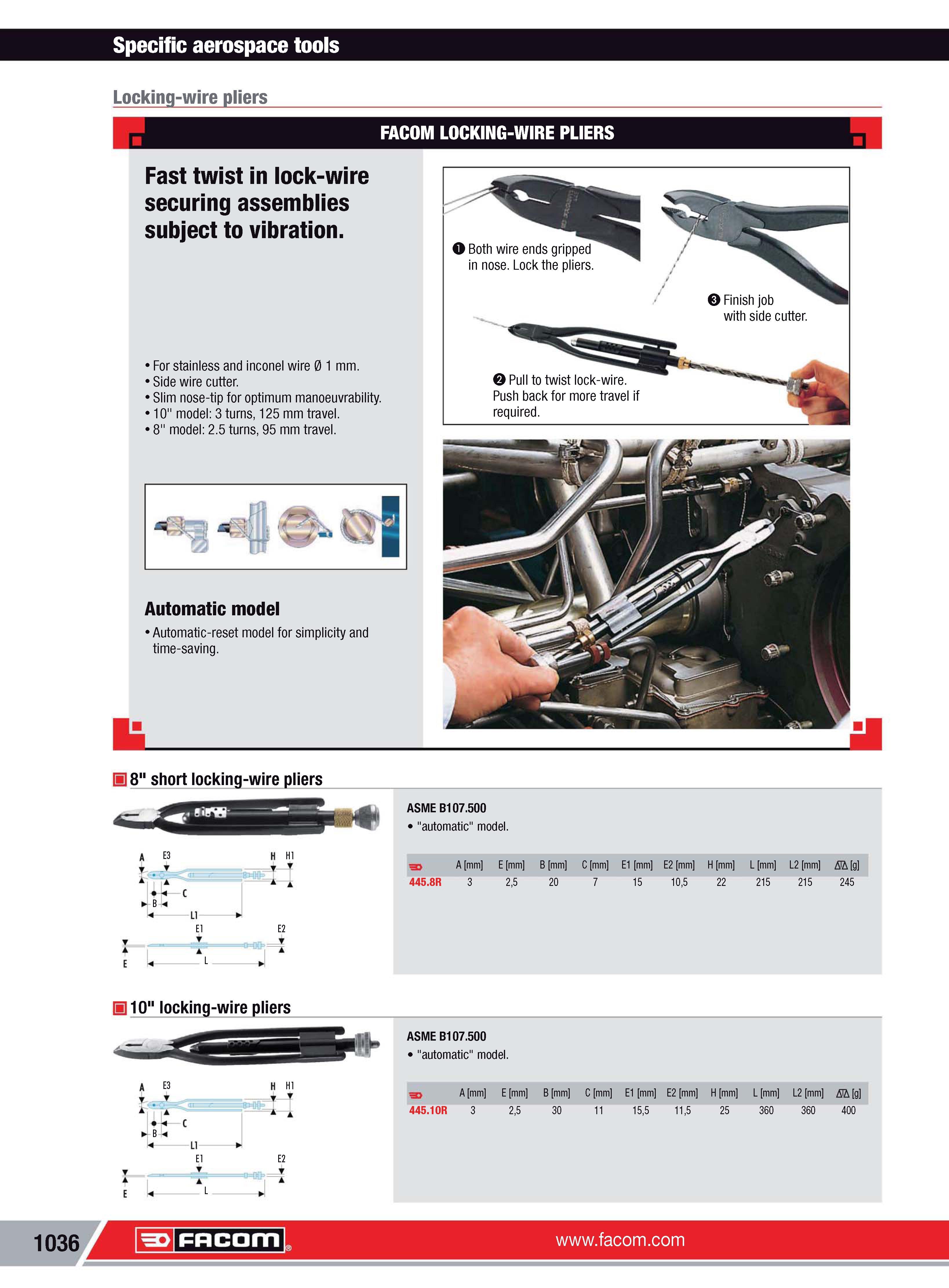

Specific aerospace tools Locking-wire pliers FACOM LOCKING-WIRE PLIERS Fast twist in lock-wire securing assemblies subject to vibration. Both wire ends gripped in nose. Lockthe pliers. For stainless and inconel wire 0 1 mm. Side wire cutter. Slim nose-tip for optimum manoeuvrability. 10" model 3 turns 125 mm travel. 8" model 2.5 turns 95 mm travel. Automatic model Automatic-reset model for simplicity and time-saving. H 8" short locking-wire pliers ASME B107.500 "automatic" model. A E3 l -f c El H HI E2 E A 3) A mm E mm B mm C mm E1 mm E2 mm H mm L mm L2 mm & g 445.8R 3 25 20 7 15 105 22 215 215 245 10" locking-wire pliers ASME B107.500 "automatic" model. A T E3 k A mm E mm B mm C mm E1 mm E2 mm H mm L mm L2 mm Sh i A 'H i 445.10R 3 25 30 11 155 115 25 360 360 400 c B U Ll El E2 T T A A E L M 1036 P with side cutter. 0 Pull to twist lock-wire. Push back for more travel if required. Facom
