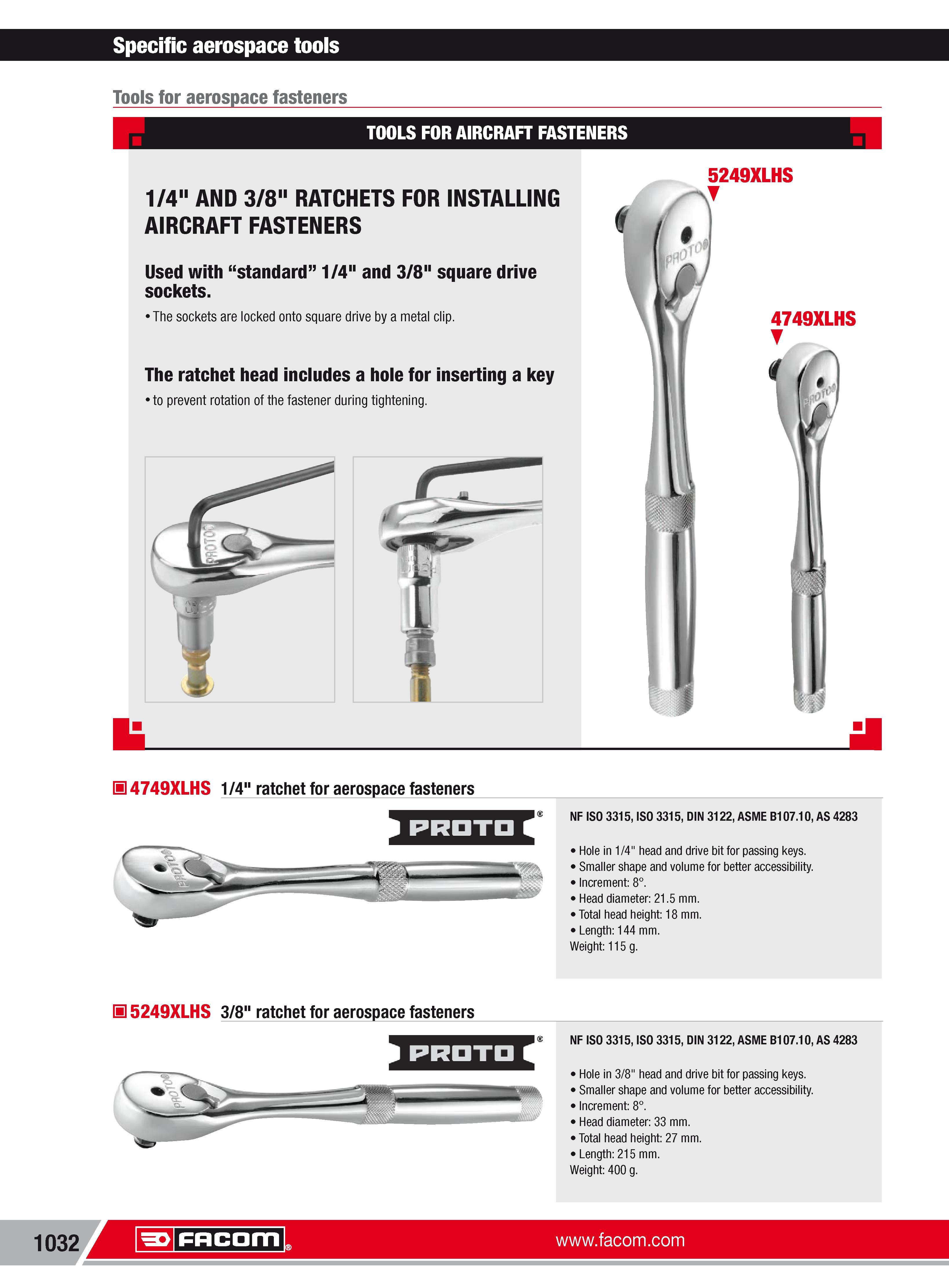

Tools for aerospace fasteners TOOLS FOR AIRCRAFT FASTENERS 1/4" AND 3/8" RATCHETS FOR INSTALLING AIRCRAFT FASTENERS 5249XLHS ST Used with standard 1/4" and 3/8" square drive sockets. The sockets are locked onto square drive by a metal clip. The ratchet head includes a hole for inserting a key to prevent rotation of the fastener during tightening. 4749XLHS H 4749XLHS 1/4" ratchet for aerospace fasteners NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 AS 4283 Hole in 1/4" head and drive bit for passing keys. Smaller shape and volume for better accessibility. Increment 8. Head diameter 21.5 mm. Total head height 18 mm. Length 144 mm. Weight 115g. H 5249XLHS 3/8" ratchet for aerospace fasteners NF ISO 3315 ISO 3315 DIN 3122 ASME B107.10 AS 4283 Hole in 3/8" head and drive bit for passing keys. Smaller shape and volume for better accessibility. Increment 8. Head diameter 33 mm. Total head height 27 mm. Length 215 mm. Weight 400 g. 1032 Facom Specific aerospace tools
