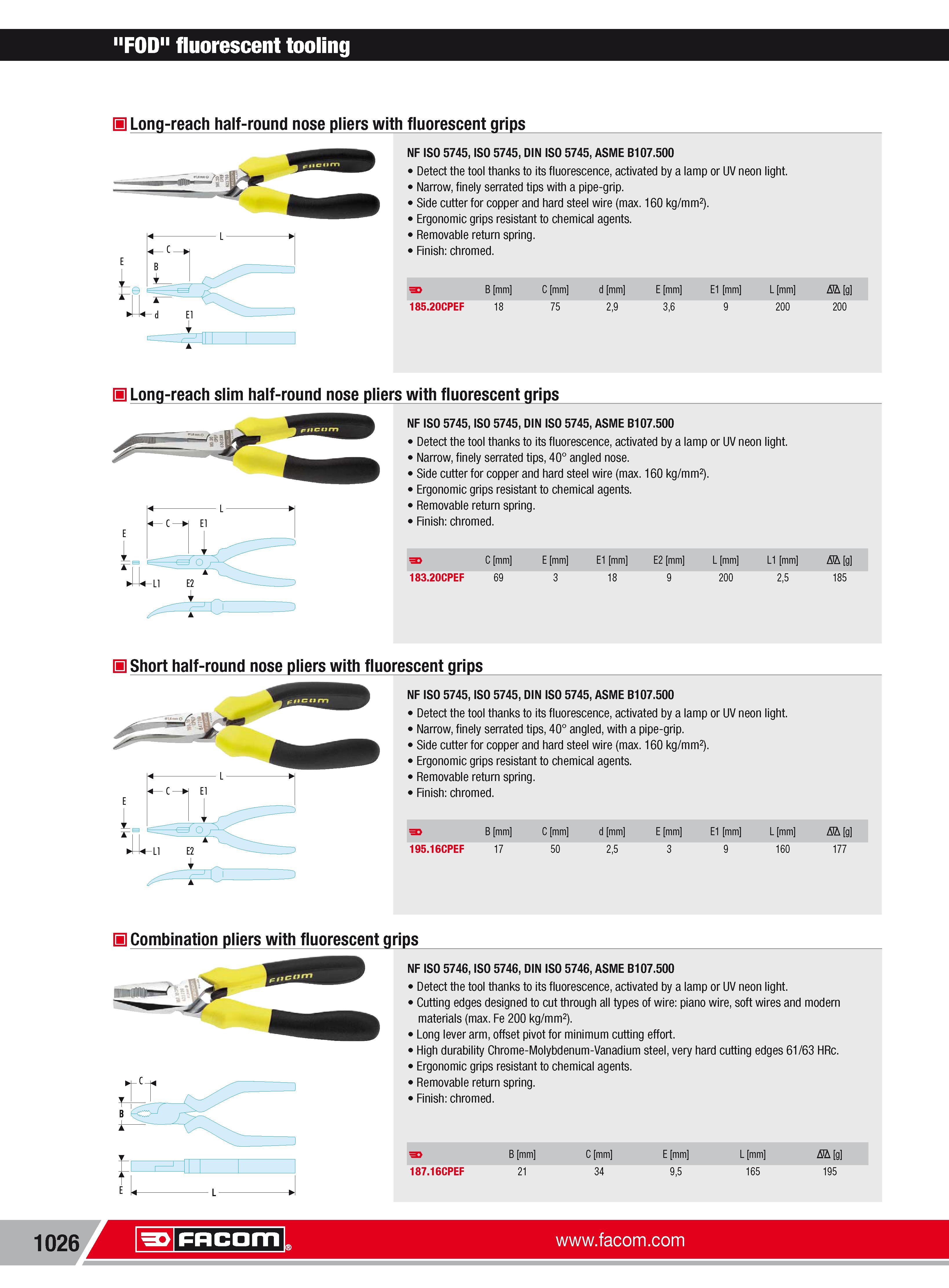

Long-reach half-round nose pliers with fluorescent grips NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Narrow finely serrated tips with a pipe-grip. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 3 B mm C mm d mm E mm E1 mm L mm Nh g 185.20CPEF 18 75 29 36 9 200 200 H Long-reach slim half-round nose pliers with fluorescent grips L El r' NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Narrow finely serrated tips 40 angled nose. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 3 C mm E mm E1 mm E2 mm L mm L1 mm Nh g 183.20CPEF 69 3 18 9 200 25 185 H Short half-round nose pliers with fluorescent grips NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Narrow finely serrated tips 40 angled with a pipe-grip. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 3 B mm C mm d mm E mm E1 mm L mm Nh g 195.16CPEF 17 50 25 3 9 160 177 H Combination pliers with fluorescent grips NF ISO 5746 ISO 5746 DIN ISO 5746 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Cutting edges designed to cut through all types of wire piano wire soft wires and modern materials (max. Fe 200 kg mm2). Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 187.16CPEF B mm 21 C mm 34 E mm 95 L mm 165 Nh g 195 1026 Facom "FOD" fluorescent tooling H
