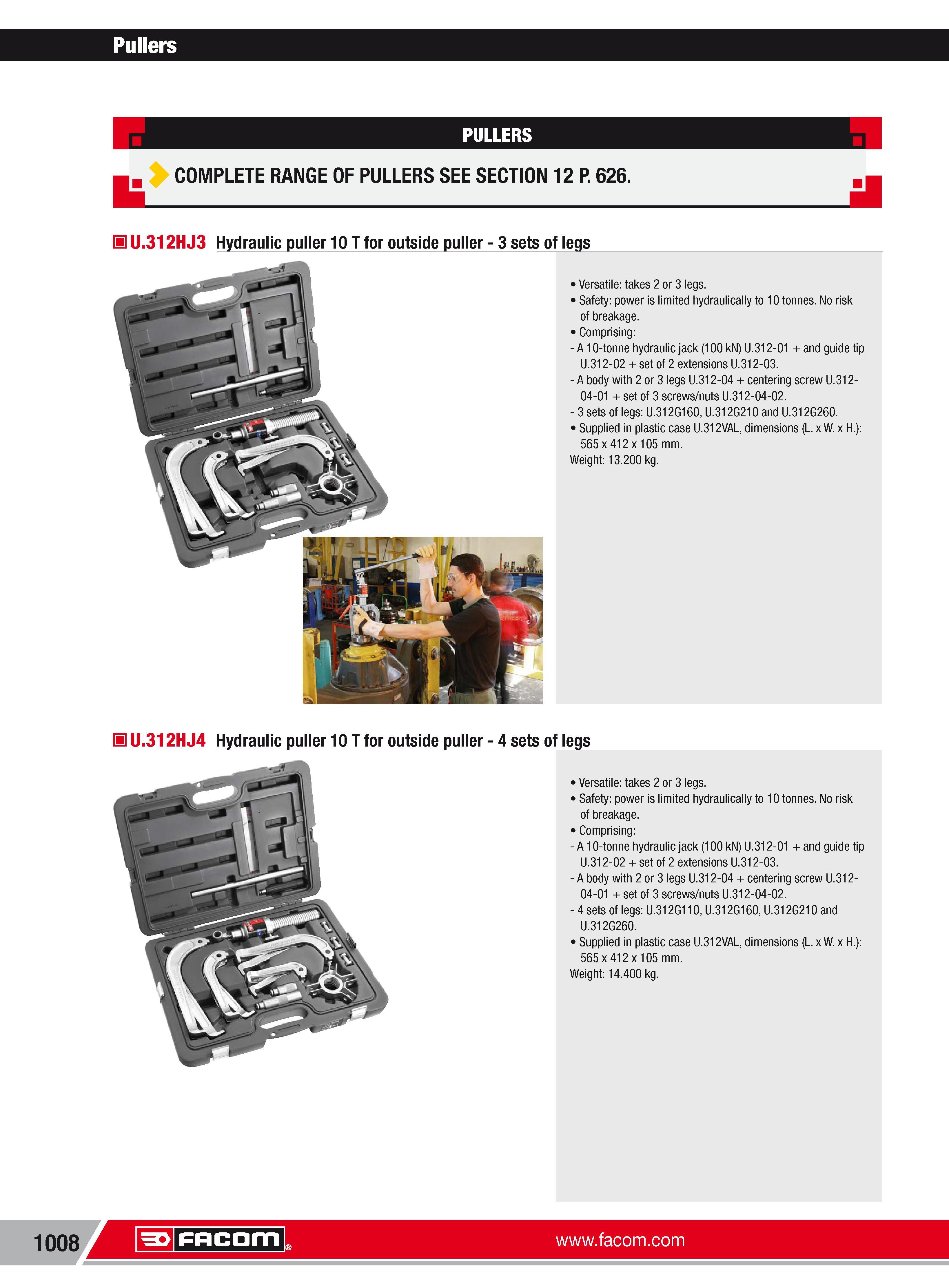

1034 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.1008

Каталог FACOM 2013 Инструмент Оборудование Стр. 1008 1034 ENG Lab2u

Hydraulic puller 10 T for outside puller 3 sets of legs U.312HJ3 Versatile takes 2 or 3 legs. Safety power is limited hydraulically to 10 tonnes. No risk of breakage. Comprising A 10-tonne hydraulic jack (100 kN) U.312-01 + and guide tip U.312-02 + set of 2 extensions U.312-03. A body with 2or3 legs U.312-04 + centering screw U.312-04-01 + set of 3 screws nuts U.312-04-02. 3 sets of legs U.312G160 U.312G210 and U.312G260. Supplied in plastic case U.312VAL dimensions (L. xW.x H.) 565x412x105 mm. Weight 13.200 kg. H U.312HJ4 Hydraulic puller 10 T for outside puller 4 sets of legs Versatile takes 2or3 legs. Safety power is limited hydraulically to 10 tonnes. No risk of breakage. Comprising A 10-tonne hydraulic jack (100 kN) U.312-01 + and guide tip U.312-02 + set of 2 extensions U.312-03. A body with 2or3 legs U.312-04 + centering screw U.312-04-01 + set of 3 screws nuts U.312-04-02. 4 sets of legs U.312G110 U.312G160 U.312G210 and U.312G260. Supplied in plastic case U.312VAL dimensions (L. xW.x H.) 565x412x105 mm. Weight 14.400 kg. 1008 Facom Pullers PULLERS COMPLETE RANGE OF PULLERS SEE SECTION 12 P. 626. H
