101 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.97

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 97 0101 ENG Lab2u

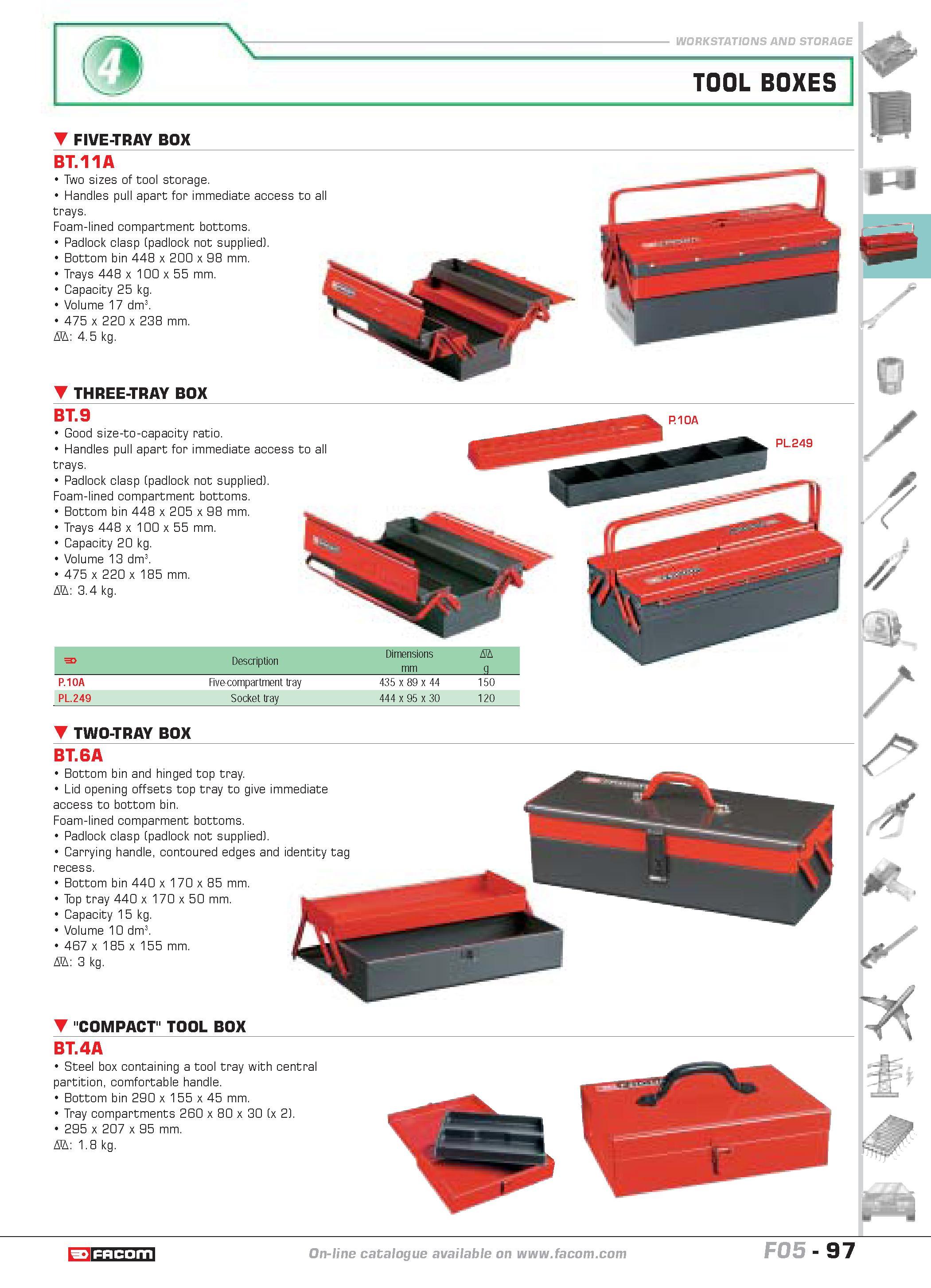

WORKSTATIONS AND STORAGE TOOL BOXES FIVE-TRAY BOX BT.11A Two sizes of tool storage. Handles pull apart for immediate access to all trays. Foam-lined compartment bottoms. Padlock clasp (padlock not supplied). Bottom bin 448 x 200 x 98 mm. Trays 448 x 100 x 55 mm. Capacity 25 kg. Volume 17 dm3. 475 x 220 x 238 mm. D 4.5 kg. BT.9 Good size-to-capacity ratio. Handles pull apart for immediate access to all trays. Padlock clasp (padlock not supplied). Foam-lined compartment bottoms. Bottom bin 448 x 205 x 98 mm. Trays 448 x 100 x 55 mm. Capacity 20 kg. Volume 13 dm3. 475 x 220 x 185 mm. D 3.4 kg. PL.249 F Description Dimensions mm D g P.10A Five-compartment tray 435 x 89 x 44 150 PL.249 Socket tray 444 x 95 x 30 120 t TWO-TRAY BOX BT.6A Bottom bin and hinged top tray. Lid opening offsets top tray to give immediate access to bottom bin. Foam-lined comparment bottoms. Padlock clasp (padlock not supplied). Carrying handle contoured edges and identity tag recess. Bottom bin 440 x 170 x 85 mm. Top tray 440 x 170 x 50 mm. Capacity 15 kg. Volume 10 dm3. 467 x 185 x 155 mm. D 3 kg. "COMPACT" TOOL BOX BT.4A Steel box containing a tool tray with central partition comfortable handle. Bottom bin 290 x 155 x 45 mm. Tray compartments 260 x 80 x 30 (x 2). 295 x 207 x 95 mm. D 1.8 kg. catalogue FACOM F05 97
