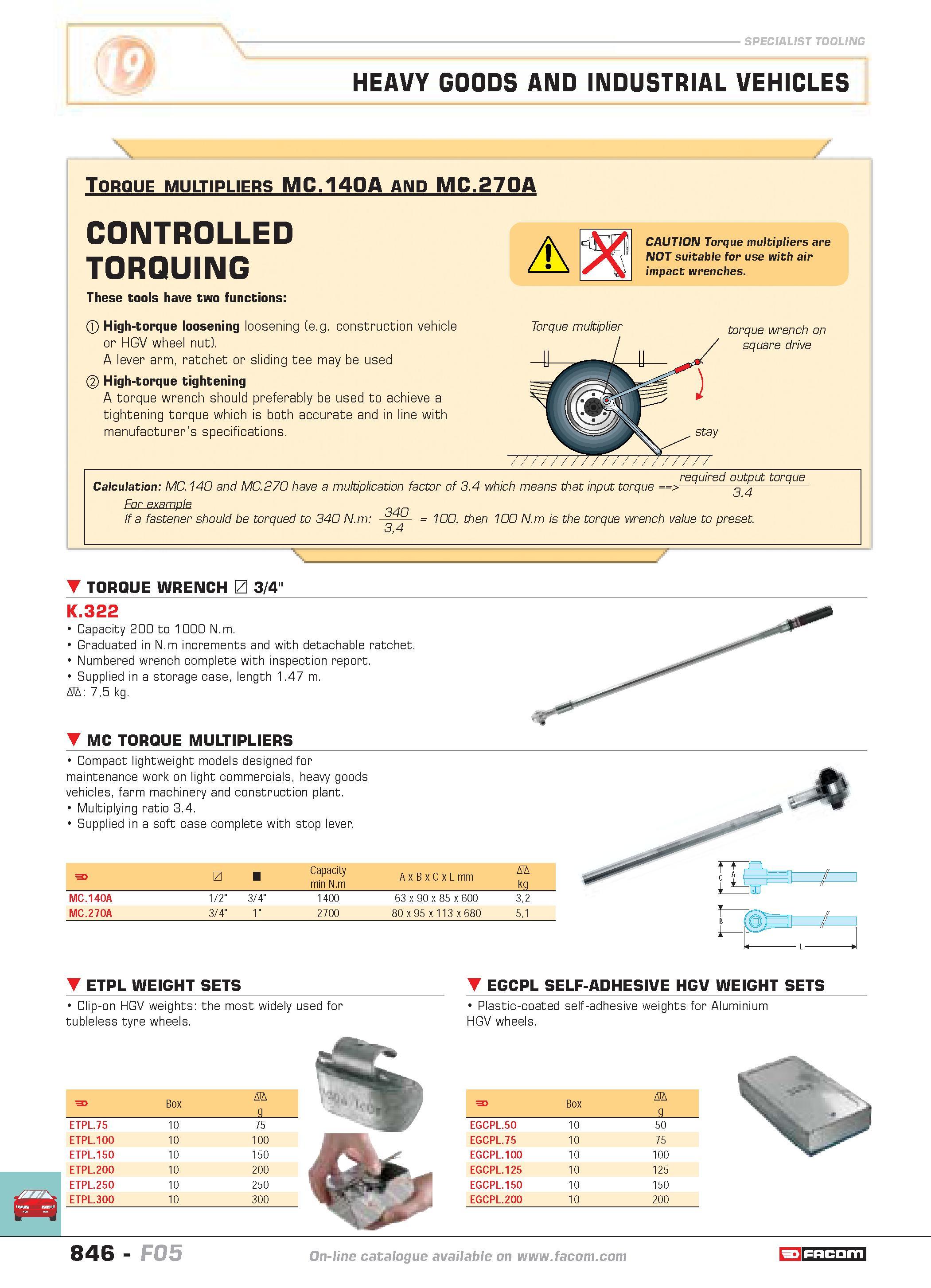

SPECIALIST TOOLING HEAVY GOODS AND INDUSTRIAL VEHICLES Torque multipliers MC.140A and MC.270A CONTROLLED TORQUING These tools have two functions High-torque loosening loosening (e.g. construction vehicle or HGV wheel nut). A lever arm ratchet or sliding tee may be used High-torque tightening A torque wrench should preferably be used to achieve a tightening torque which is both accurate and in line with manufacturers specifications. Torque multiplier torque wrench on square drive required output torque Calculation MC.140 and MC.270 have a multiplication factor of 3.4 which means that input torque --34 For example If a fastener should be torqued to 340 N.m 100 then 100 N.m is the torque wrench value to preset. TORQUE WRENCH 3/4" K.322 Capacity 200 to 1000 N.m. Graduated in N.m increments and with detachable ratchet. Numbered wrench complete with inspection report. Supplied in a storage case length 1.47 m. D 75 kg. MC TORQUE MULTIPLIERS Compact lightweight models designed for maintenance work on light commercials heavy goods vehicles farm machinery and construction plant. Multiplying ratio 3.4. Supplied in a soft case complete with stop lever. F L Capacity D min N.m kg MC.140A 1/2" 3/4" 1400 63 x 90 x 85 x 600 32 MC.270A 3/4" 1" 2700 80 x 95 x 113 x 680 51 ETPL WEIGHT SETS Clip-on HGV weights the most widely used for tubleless tyre wheels. F Box D g ETPL.75 10 75 ETPL.100 10 100 ETPL.150 10 150 ETPL.200 10 200 ETPL.250 10 250 ETPL.300 10 300 EGCPL SELF-ADHESIVE HGV WEIGHT SETS Plastic-coated self-adhesive weights for Aluminium HGV wheels. F Box D g EGCPL.50 10 50 EGCPL.75 10 75 EGCPL.100 10 100 EGCPL.125 10 125 EGCPL.150 10 150 EGCPL.200 10 200 846 catalogue FACOM F05
