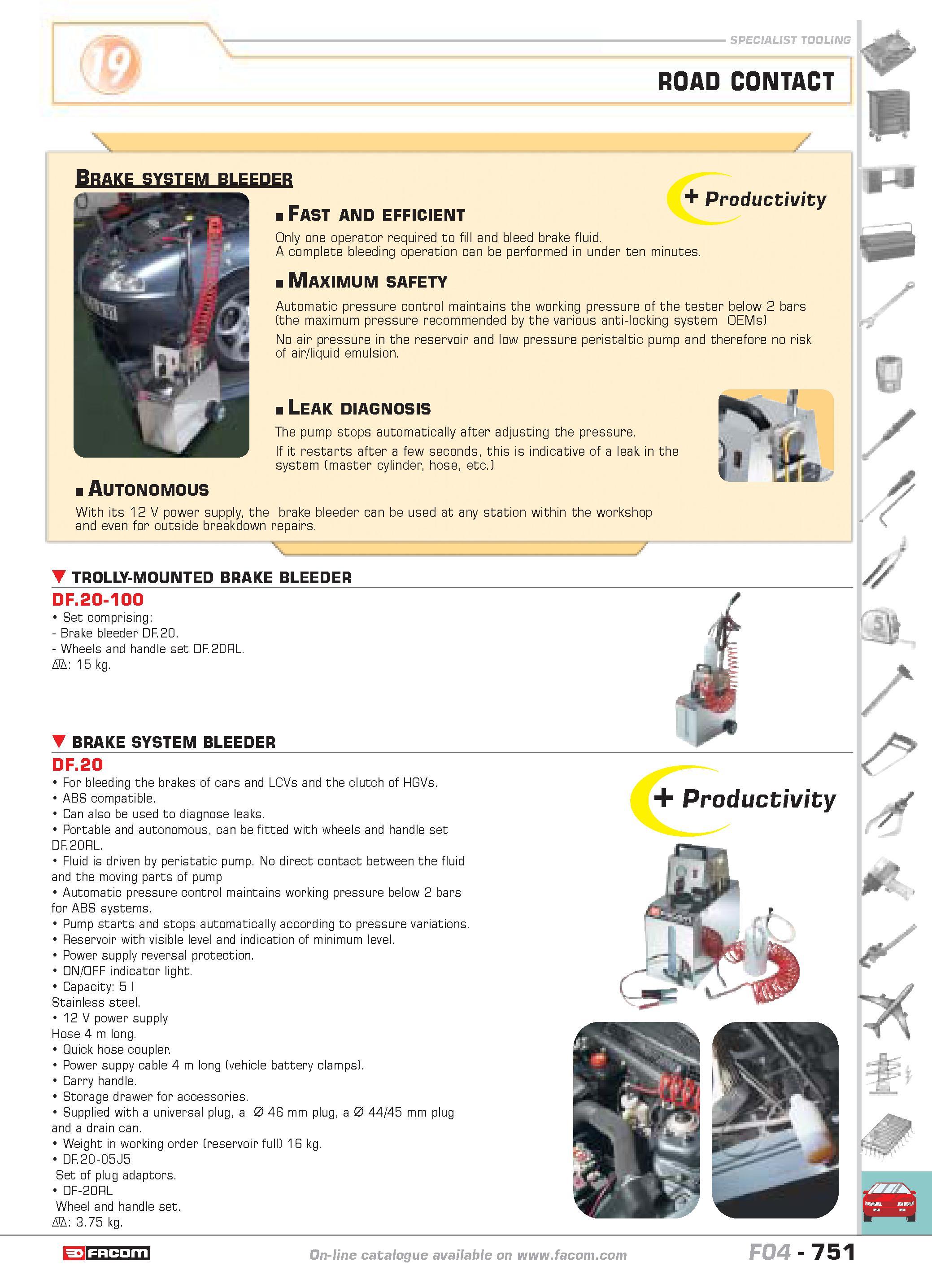

SPECIALIST TOOLING ROAD CONTACT Brake system bleeder Fast and efficient y Productivity Only one operator required to fill and bleed brake fluid. A complete bleeding operation can be performed in under ten minutes. Maximum safety Automatic pressure control maintains the working pressure of the tester below 2 bars (the maximum pressure recommended by the various anti-locking system OEMs) No air pressure in the reservoir and low pressure peristaltic pump and therefore no risk of air liquid emulsion. Leak diagnosis The pump stops automatically after adjusting the pressure. If it restarts after a few seconds this is indicative of a leak in the system (master cylinder hose etc.) Autonomous With its 12 V power supply the brake bleeder can be used at any station within the workshop and even for outside breakdown repairs. & V rr- trolly-mounted brake bleeder DF.20-100 Set comprising Brake bleeder DF.20. Wheels and handle set DF.20RL. D 15 kg. brake system bleeder DF.20 For bleeding the brakes of cars and LCVs and the clutch of HGVs. ABS compatible. Can also be used to diagnose leaks. Portable and autonomous can be fitted with wheels and handle set DF.20RL. Fluid is driven by peristatic pump. No direct contact between the fluid and the moving parts of pump Automatic pressure control maintains working pressure below 2 bars for ABS systems. Pump starts and stops automatically according to pressure variations. Reservoir with visible level and indication of minimum level. Power supply reversal protection. ON OFF indicator light. Capacity 5 l Stainless steel. 12 V power supply Hose 4 m long. Quick hose coupler. Power suppy cable 4 m long (vehicle battery clamps). Carry handle. Storage drawer for accessories. Supplied with a universal plug a 0 46 mm plug a 0 44 45 mm plug and a drain can. Weight in working order (reservoir full) 16 kg. DF.20-05J5 Set of plug adaptors. DF-20RL Wheel and handle set. D 3.75 kg. Productivity catalogue catalogue FACOM F05 751
