79 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.75

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 75 0079 ENG Lab2u

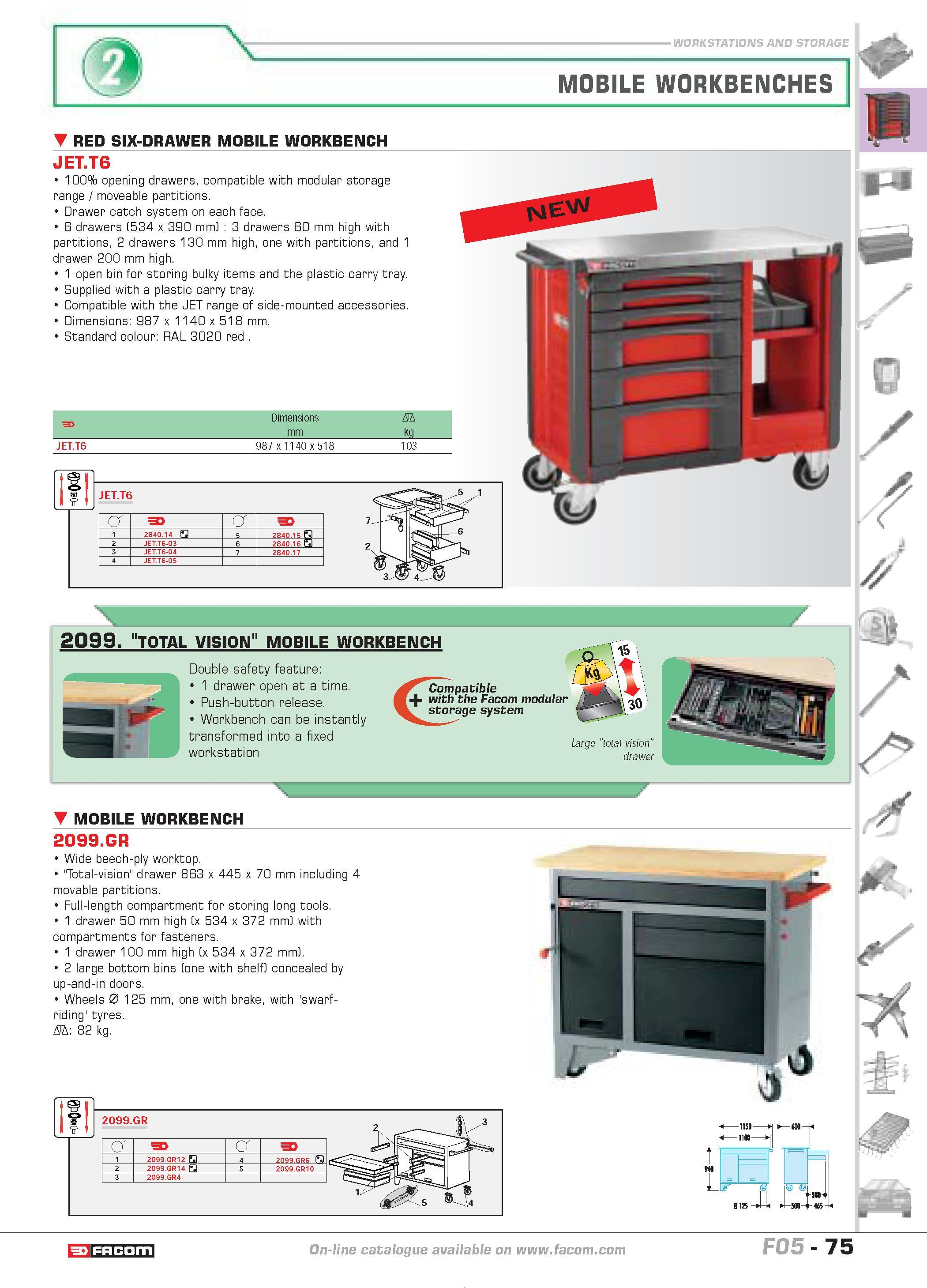

WORKSTATIONS AND STORAGE MOBILE WORKBENCHES RED SIX-DRAWER MOBILE WORKBENCH JET.T6 100% opening drawers compatible with modular storage range moveable partitions. Drawer catch system on each face. 6 drawers (534 x 390 mm) 3 drawers 60 mm high with partitions 2 drawers 130 mm high one with partitions and 1 drawer 200 mm high. 1 open bin for storing bulky items and the plastic carry tray. Supplied with a plastic carry tray Compatible with the JET range of side-mounted accessories. Dimensions 987 x 1140 x 518 mm. Standard colour RAL 3020 red F Dimensions D mm kq JET.T6 987 x 1140 x 518 103 cr 2840.14 3 jX 1 2099. "TOTAL VISION" MOBILE WORKBENCH Double safety feature 1 drawer open at a time. Push-button release. Workbench can be instantly transformed into a fixed workstation MOBILE WORKBENCH 2099.GR Wide beech-ply worktop. "Total-vision" drawer 863 x 445 x 70 mm including 4 movable partitions. Full-length compartment for storing long tools. 1 drawer 50 mm high (x 534 x 372 mm) with compartments for fasteners. 1 drawer 100 mm high (x 534 x 372 mm). 2 large bottom bins (one with shelf) concealed by up-and-in doors. Wheels 0 125 mm one with brake with "swarf-riding" tyres. D 82 kg. Cf O' 3 1 2099.GR12 4 2099 GR6 P3 2 2099.GR14 Q 5 2099.GR10 3 2099.GR4 catalogue FACOM F05 75
