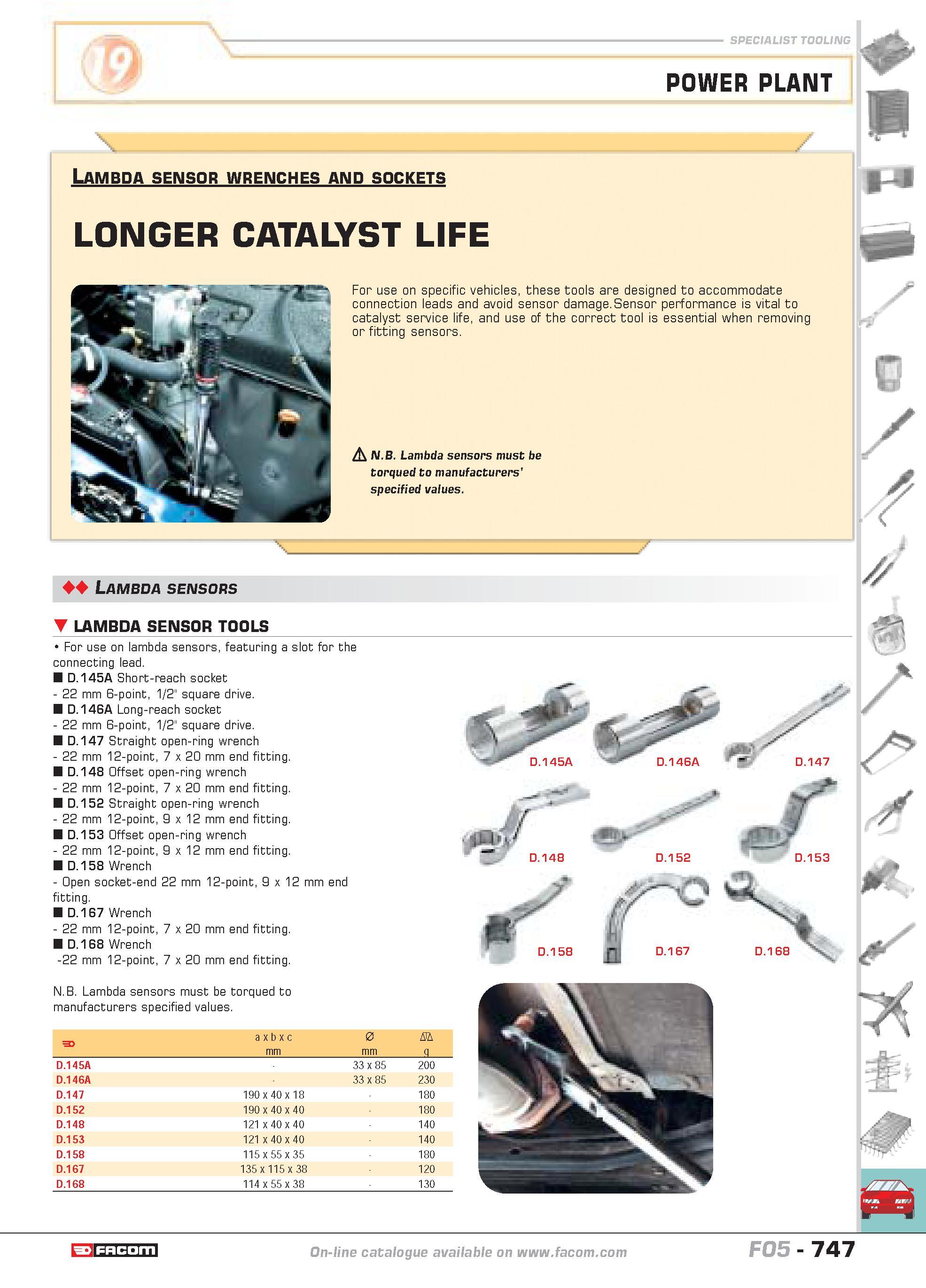

SPECIALIST TOOLING POWER PLANT Lambda sensor wrenches and sockets LONGER CATALYST LIFE For use on specific vehicles these tools are designed to accommodate connection leads and avoid sensor damage.Sensor performance is vital to catalyst service life and use of the correct tool is essential when removing or fitting sensors. 2 N.B. Lambda sensors must be torqued to manufacturers specified values. --v J Lambda sensors LAMBDA SENSOR TOOLS For use on lambda sensors featuring a slot for the connecting lead. D.145A Short-reach socket 22 mm 6-point 1/2" square drive. D.146A Long -reach socket 22 mm 6-point 1/2" square drive. D.147 Straight open-ring wrench 22 mm 12-point 7 x 20 mm end fitting. D.148 Offset open-ring wrench 22 mm 12-point 7 x 20 mm end fitting. D.152 Straight open-ring wrench 22 mm 12-point 9 x 12 mm end fitting. D.153 Offset open-ring wrench 22 mm 12-point 9 x 12 mm end fitting. D.158 Wrench Open socket-end 22 mm 12-point 9 x 12 mm end fitting. D.167 Wrench 22 mm 12-point 7 x 20 mm end fitting. D.168 Wrench -22 mm 12-point 7 x 20 mm end fitting. N.B. Lambda sensors must be torqued to manufacturers specified values. F a x b x c mm 0 mm D g D.145A 33 x 85 200 D.146A 33 x 85 230 D.147 190 x 40 x 18 180 D.152 190 x 40 x 40 180 D.148 121 x 40 x 40 140 D.153 121 x 40 x 40 140 D.158 115 x 55 x 35 180 D.167 135 x 115 x 38 120 D.168 114 x 55 x 38 130 E3EHHZHI catalogue FACOM F05 747
