654 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.657

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 657 0654 ENG Lab2u

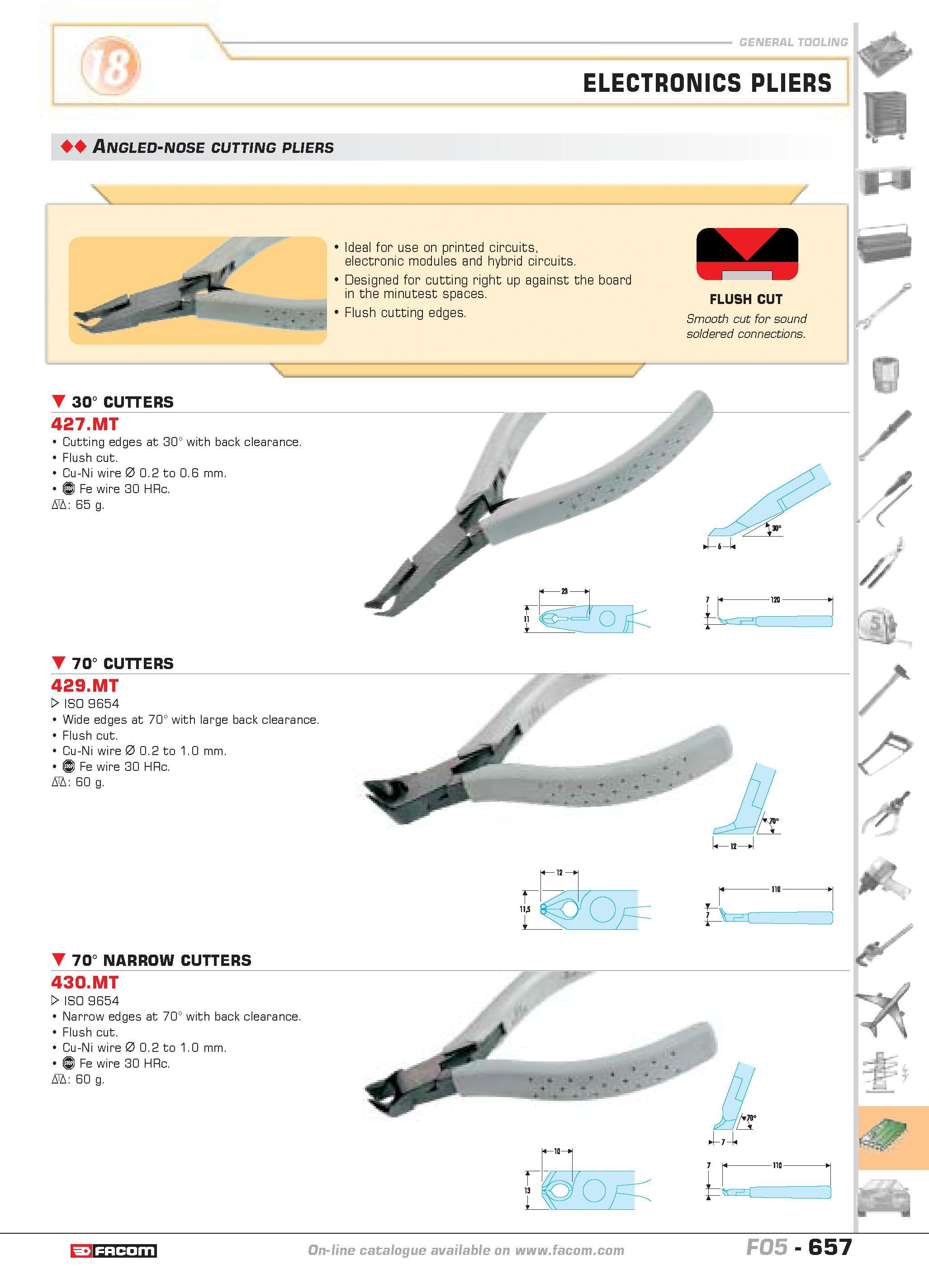

ELECTRONICS PLIERS Angled-nose cutting pliers Ideal for use on printed circuits electronic modules and hybrid circuits. Designed for cutting right up against the board in the minutest spaces. Flush cutting edges. 30 CUTTERS 427.MT Cutting edges at 30 with back clearance. Flush cut. Cu-Ni wire 0 0.2 to 0.6 mm. 1 Fe wire 30 HRc. D 65 g. 70 CUTTERS 429.MT W ISO 9654 Wide edges at 70 with large back clearance. Flush cut. Cu-Ni wire 0 0.2 to 1.0 mm. 1 Fe wire 30 HRc. D 60 g. 70 NARROW CUTTERS 430.MT W ISO 9654 Narrow edges at 70 with back clearance. Flush cut. Cu-Ni wire 0 0.2 to 1.0 mm. 1 Fe wire 30 HRc. D 60 g. catalogue FACOM F05 657
