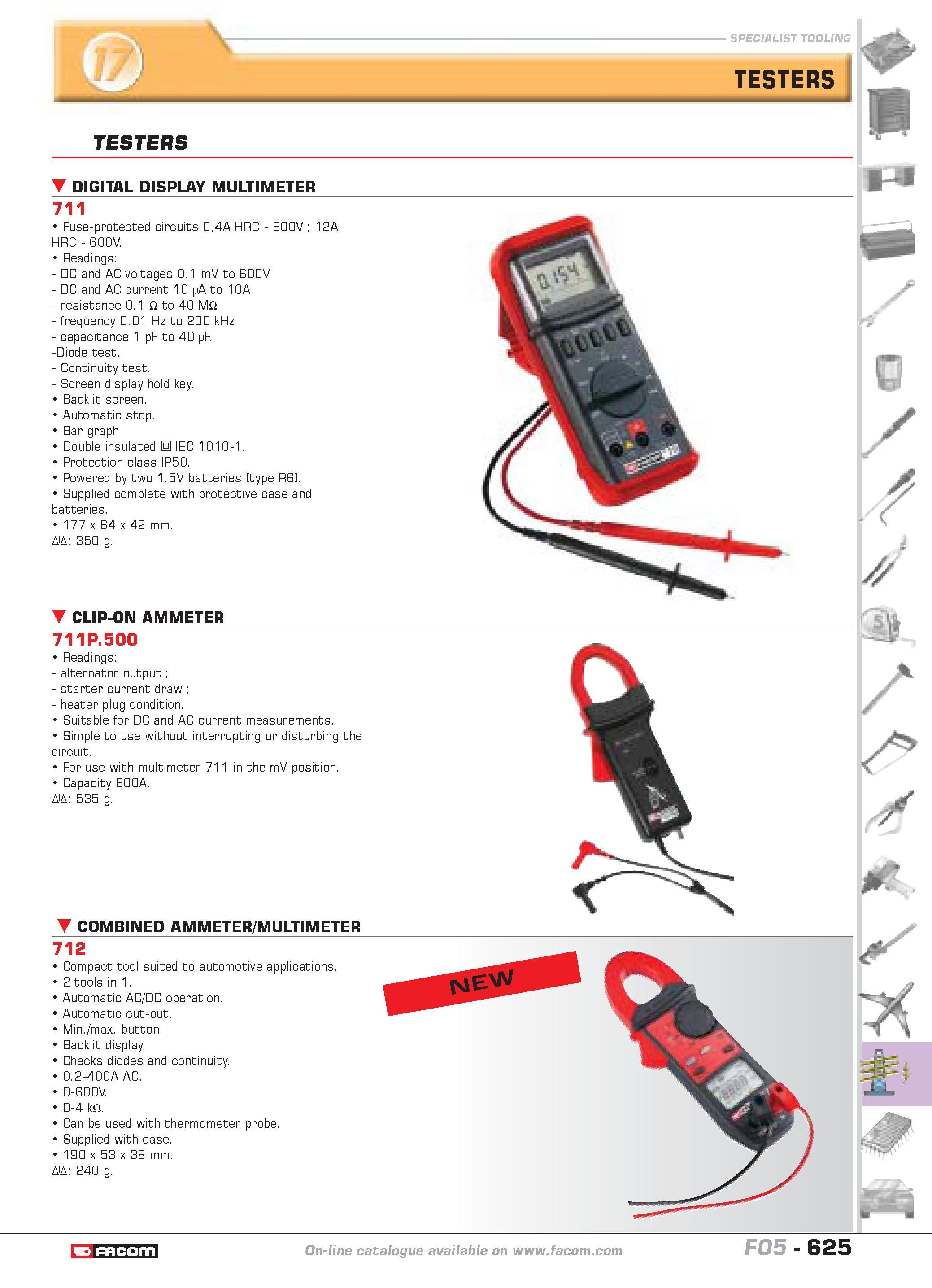

SPECIALIST TOOLING TESTERS TESTERS DIGITAL DISPLAY MULTIMETER 711 Fuse-protected circuits 04A HRC 600V 12A HRC 600V. Readings DC and AC voltages 0.1 mV to 600V DC and AC current 10 pA to 10A resistance 0.1 o to 40 Mo frequency 0.01 Hz to 200 kHz capacitance 1 pF to 40 pF -Diode test. Continuity test. Screen display hold key. Backlit screen. Automatic stop. Bar graph Double insulated P IEC 1010-1. Protection class IP50. Powered by two 1.5V batteries (type R6). Supplied complete with protective case and batteries. 177 x 64 x 42 mm. D 350 g. CLIP-ON AMMETER 711P.500 Readings alternator output starter current draw heater plug condition. Suitable for DC and AC current measurements. Simple to use without interrupting or disturbing the circuit. For use with multimeter 711 in the mV position. Capacity 600A. D 535 g. COMBINED AMMETER MULTIMETER 712 Compact tool suited to automotive applications. 2 tools in 1. Automatic AC DC operation. Automatic cut-out. Min. max. button. Backlit display. Checks diodes and continuity. 0.2-400A AC. 0-600V. 0-4 ko. Can be used with thermometer probe. Supplied with case. 190 x 53 x 38 mm. D 240 g. catalogue FACOM F05 625
