600 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.603

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 603 0600 ENG Lab2u

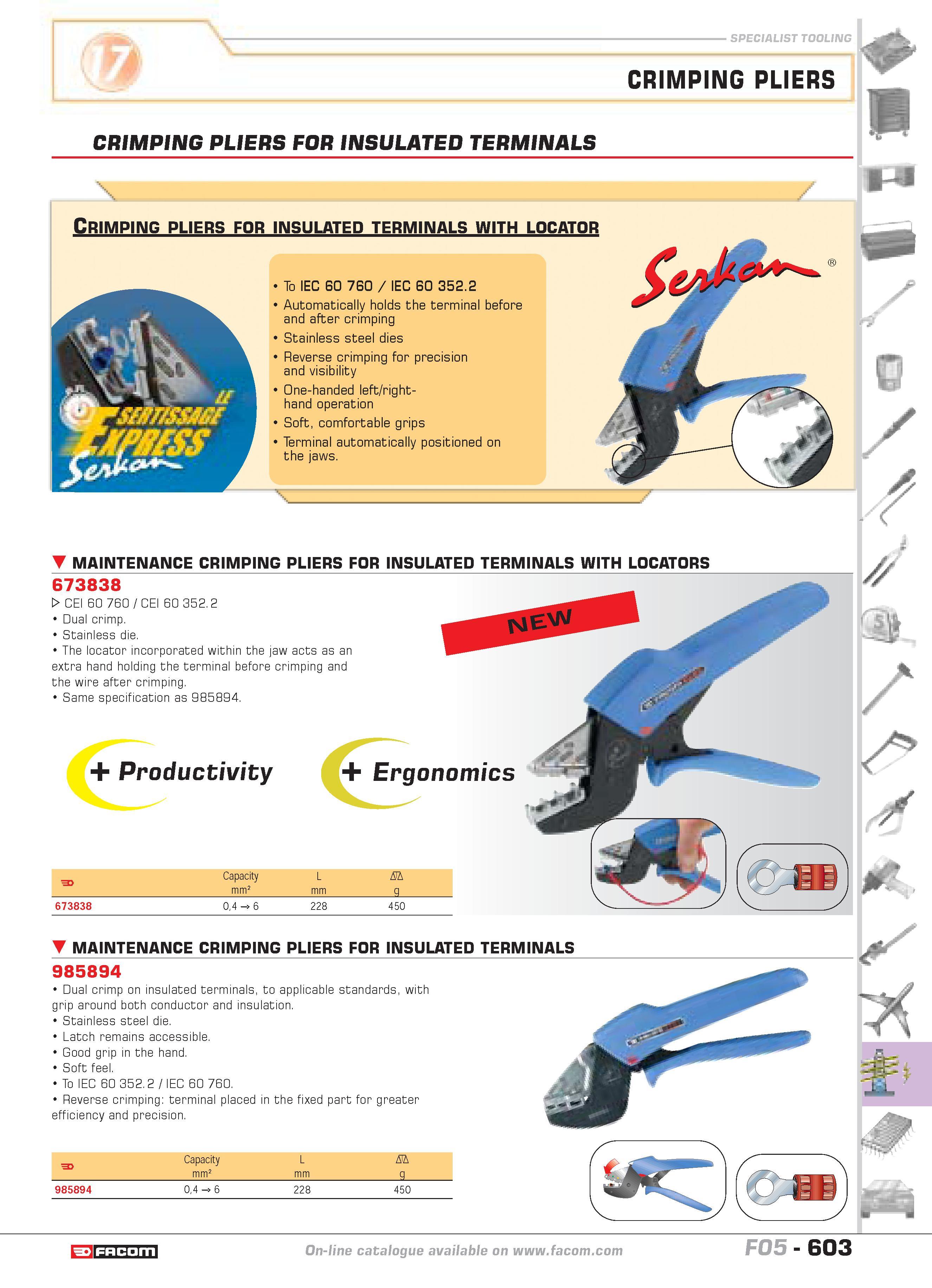

SPECIALIST TOOLING CRIMPING PLIERS CRIMPING PLIERS FOR INSULATED TERMINALS I 1 H Crimpiimg pliers for insulated terminals with locator To IEC 60 760 IEC 60 352.2 Automatically holds the terminal before and after crimping Stainless steel dies Reverse crimping for precision and visibility One-handed left right-hand operation Soft comfortable grips Terminal automatically positioned on the jaws. r MAINTENANCE CRIMPING PLIERS FOR INSULATED TERMINALS WITH LOCATORS 673838 W CEI 60 760 CEI 60 352.2 Dual crimp. Stainless die. The locator incorporated within the jaw acts as an extra hand holding the terminal before crimping and the wire after crimping. Same specification as 985894. Productivity F Capacity L D mm2 mm g 673838 04 m 6 228 450 MAINTENANCE CRIMPING PLIERS FOR INSULATED TERMINALS 985894 Dual crimp on insulated terminals to applicable standards with grip around both conductor and insulation. Stainless steel die. Latch remains accessible. Good grip in the hand. Soft feel. To IEC 60 352.2 IEC 60 760. Reverse crimping terminal placed in the fixed part for greater efficiency and precision. F Capacity L D mm2 mm g 985894 0 4 6 228 450 catalogue FACOM F05 603
