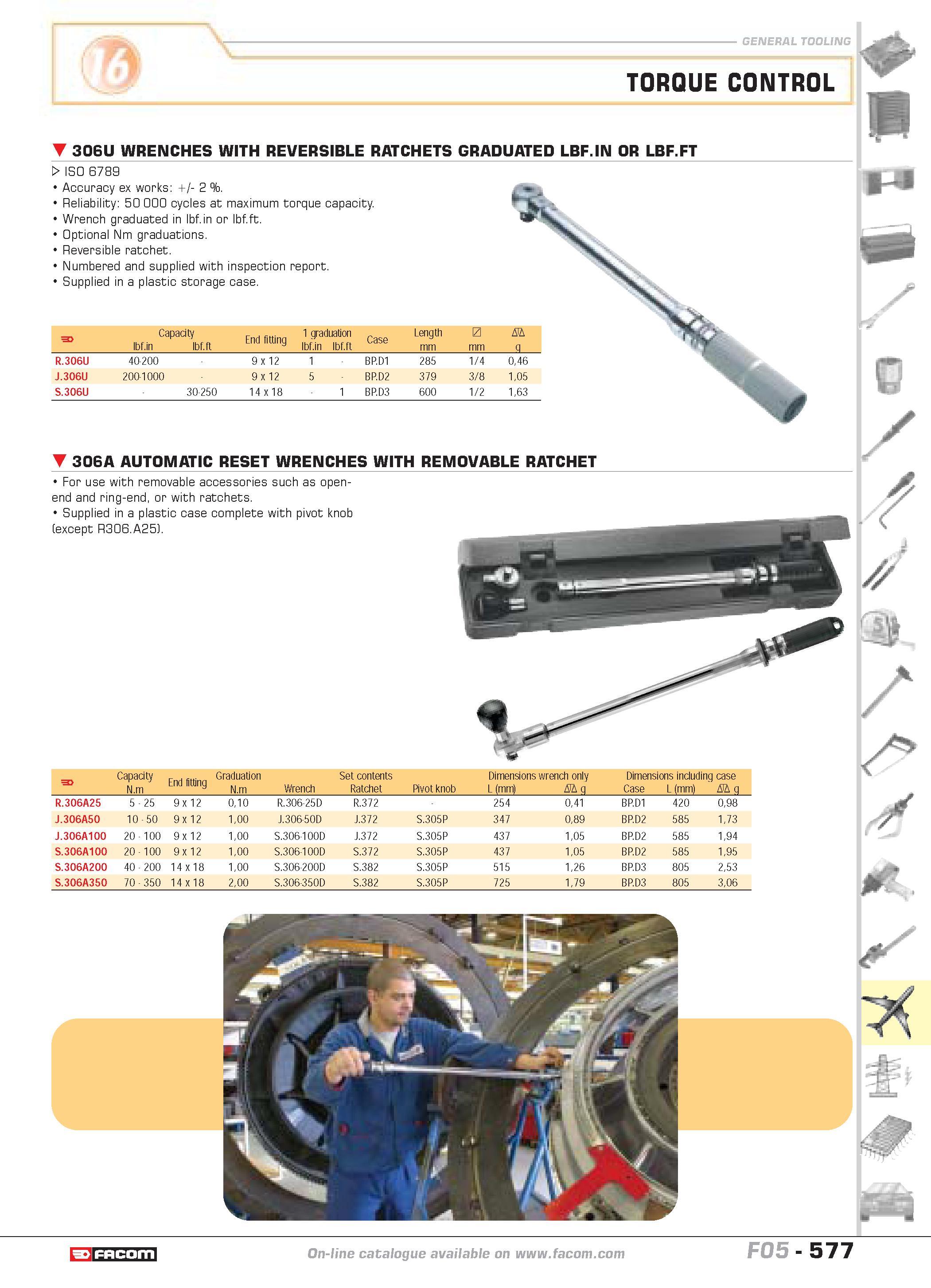

TORQUE CONTROL 306U WRENCHES WITH REVERSIBLE RATCHETS GRADUATED LBF.IN OR LBF.FT W ISO 6789 Accuracy ex works 2 %. Reliability 50 000 cycles at maximum torque capacity. Wrench graduated in lbf.in or lbf.ft. Optional Nm graduations. Reversible ratchet. Numbered and supplied with inspection report. Supplied in a plastic storage case. F Capacity lbf.in lbf.ft End fitting 1 graduation lbf.in lbf.ft Case Length mm L mm D g R.306U 40-200 9 x 12 1 BP.D1 285 1 4 046 J.306U 200-1000 9 x 12 5 BP.D2 379 3 8 105 S.306U 30-250 14 x 18 1 BP.D3 600 1 2 163 306A AUTOMATIC RESET WRENCHES WITH REMOVABLE RATCHET For use with removable accessories such as open-end and ring-end or with ratchets. Supplied in a plastic case complete with pivot knob (except R306.A25). F Capacity N.m End fitting Graduation N.m Wrench Set contents Ratchet Pivot knob Dimensions wrench only L (mm) D g Dimensions including case Case L (mm) D g R.306A25 5 25 9 x 12 010 R.306-25D R.372 254 041 BP.D1 420 098 J.306A50 10 50 9 x 12 100 J.306-50D J.372 S.305P 347 089 BP.D2 585 173 J.306A100 20 100 9 x 12 100 S.306-100D J.372 S.305P 437 105 BP.D2 585 194 S.306A100 20 100 9 x 12 100 S.306-100D S.372 S.305P 437 105 BP.D2 585 195 S.306A200 40 200 14 x 18 100 S.306-200D S.382 S.305P 515 126 BP.D3 805 253 S.306A350 70 350 14 x 18 200 S.306-350D S.382 S.305P 725 179 BP.D3 805 306 catalogue FACOM F05- 577
