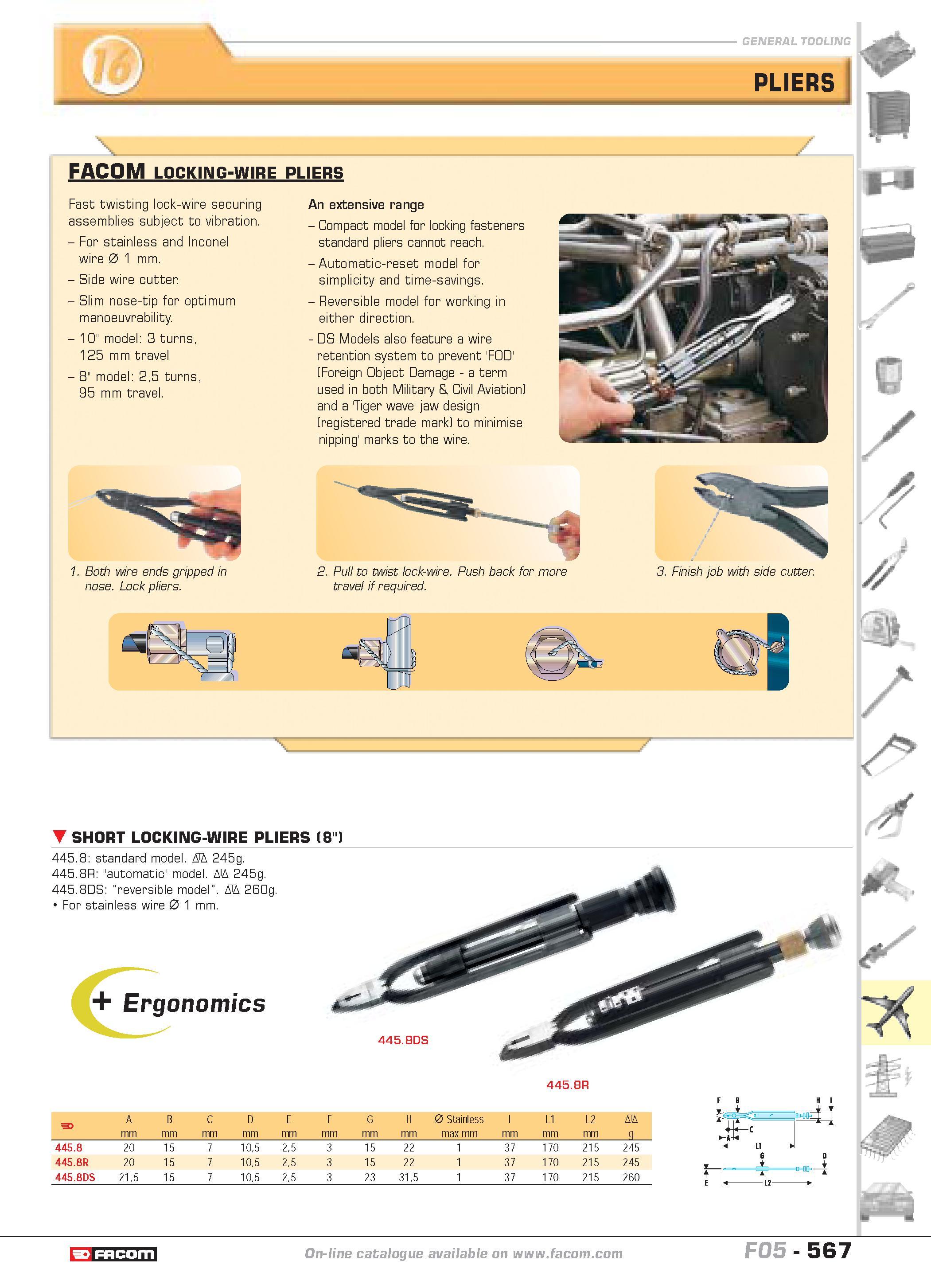

PLIERS J P M FACOM LOCKING-WIRE PLIERS Fast twisting lock-wire securing assemblies subject to vibration. For stainless and Inconel wire 0 1 mm. Side wire cutter. Slim nose-tip for optimum manoeuvrability. 10" model 3 turns 125 mm travel 8" model 25 turns 95 mm travel. An extensive range Compact model for locking fasteners standard pliers cannot reach. Automatic-reset model for simplicity and time-savings. Reversible model for working in either direction. DS Models also feature a wire retention system to prevent 'FOD' (Foreign Object Damage a term used in both Military & Civil Aviation) and a Tiger wave' jaw design (registered trade mark) to minimise 'nipping' marks to the wire. 1. Both wire ends gripped in nose. Lock pliers. 2. Pull to twist lock-wire. Push back for more travel if required. 3. Finish job with side cutter. rr i j l r r r SHORT LOCKING-WIRE PLIERS (8') 445.8 standard model. D 245g. 445.8R "automatic" model. D 245g. 445.8DS reversible model. D 260g. For stainless wire 0 1 mm. Ergonomics F A mm B mm C mm D mm E mm F mm G mm H mm 0 Stainless I max mm L1 mm L2 mm D g 445.8 20 15 7 105 25 3 15 22 1 37 170 215 245 445.8R 20 15 7 105 25 3 15 22 1 37 170 215 245 445.8DS 215 15 7 105 25 3 23 315 1 37 170 215 260 I lz:M-liil catalogue FACOM F05 567
