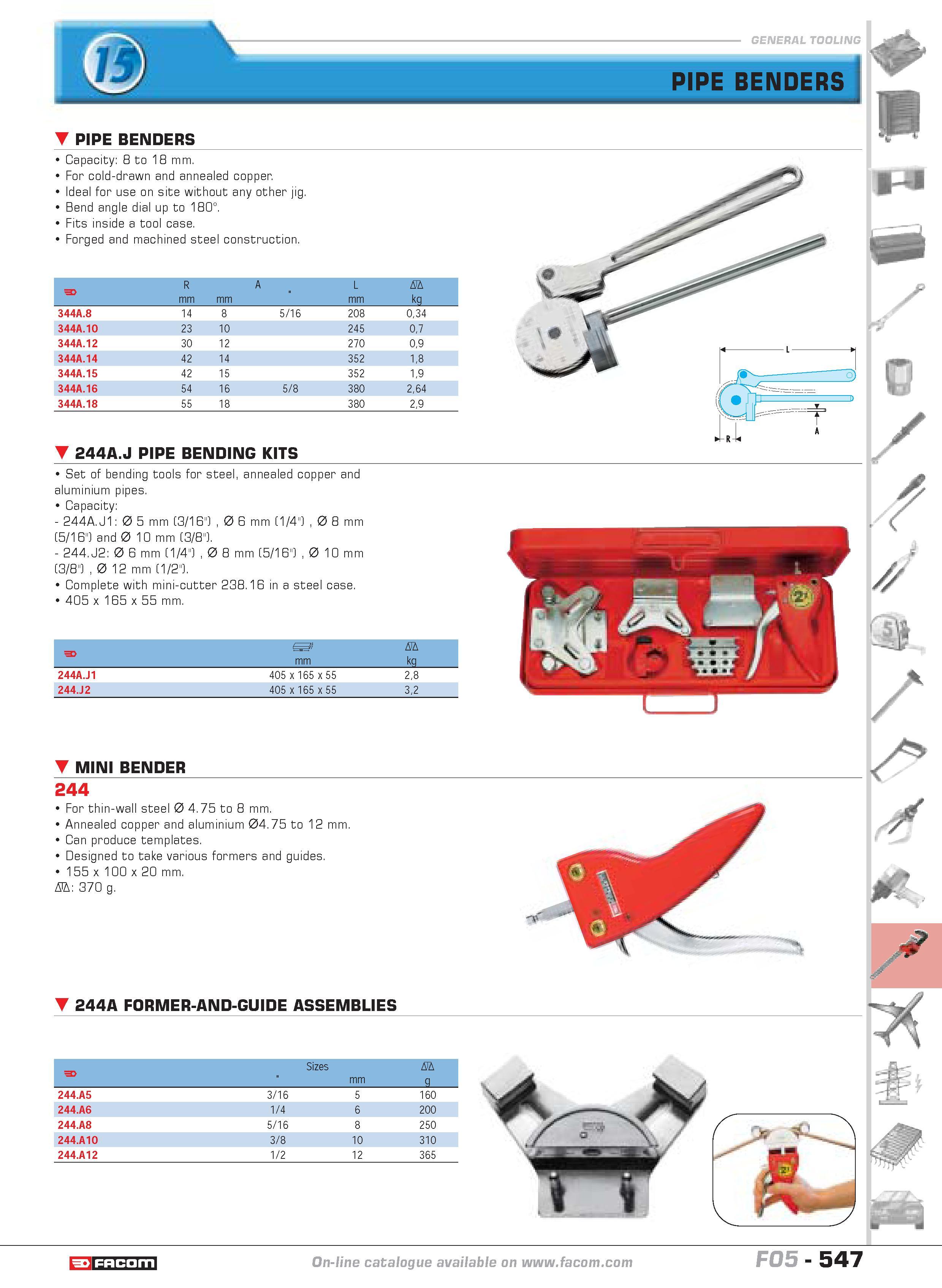

PIPE BENDERS Capacity 8 to 18 mm. For cold-drawn and annealed copper. Ideal for use on site without any other jig. Bend angle dial up to 180. Fits inside a tool case. Forged and machined steel construction. 244A.J PIPE BENDING KITS Set of bending tools for steel annealed copper and aluminium pipes. Capacity 244A.J1 0 5 mm (3 16") 0 6 mm (1 4") 0 8 mm (5 16") and 0 10 mm (3 8"). 244.J2 0 6 mm (1 4") 0 8 mm (5 16") 0 10 mm (3 8") 0 12 mm (1 2"). Complete with mini-cutter 238.16 in a steel case. 405 x 165 x 55 mm. PIPE BENDERS F R mm A L mm D kg 344A.8 14 8 5 16 208 034 344A.10 23 10 245 07 344A.12 30 12 270 09 344A.14 42 14 352 18 344A.15 42 15 352 19 344A.16 54 16 5 8 380 264 344A.18 55 18 380 29 D F mm kg 244A.J1 405 x 165 x 55 28 244.J2 405 x 165 x 55 32 MINI BENDER 244 For thin-wall steel 0 4.75 to 8 mm. Annealed copper and aluminium 04.75 to 12 mm. Can produce templates. Designed to take various formers and guides. 155 x 100 x 20 mm. D 370 g. 244A FORMER-AND-GUIDE ASSEMBLIES F Sizes mm D g 244.A5 3 16 5 160 244.A6 1 4 6 2 o o 244.A8 5 16 8 250 244.A10 3 8 10 310 244.A12 1 2 12 365 catalogue FACOM F05 547
