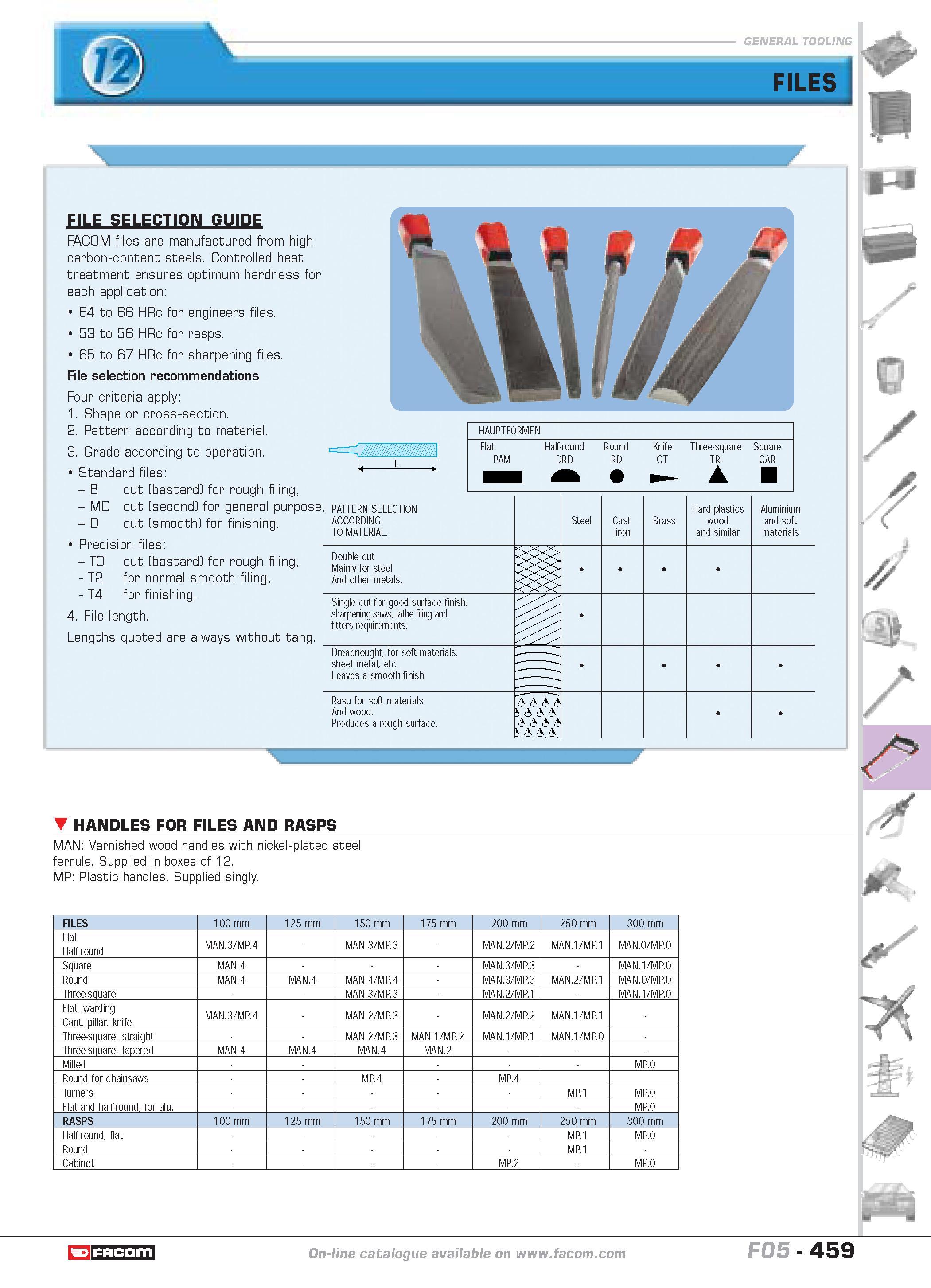

FILES FILE SELECTION GUIDE FACOM files are manufactured from high carbon-content steels. Controlled heat treatment ensures optimum hardness for each application 64 to 66 HRc for engineers files. 53 to 56 HRc for rasps. 65 to 67 HRc for sharpening files. File selection recommendations Four criteria apply 1. Shape or cross-section. 2. Pattern according to material. 3. Grade according to operation. Standard files B cut (bastard) for rough filing MD cut (second) for general purpose D cut (smooth) for finishing. Precision files TO cut (bastard) for rough filing T2 for normal smooth filing T4 for finishing. 4. File length. Lengths quoted are always without tang. HAUPTFORMEN Flat PAM Half-round DRD Round RD 0 Knife CT Three-square TRI A Square CAR PATTERN SELECTION ACCORDING TO MATERIAL. Steel Cast iron Brass Hard plastics wood and similar Aluminium and soft materials Double cut Mainly for steel And other metals. H Single cut for good surface finish sharpening saws lathe filing and fitters requirements. if Dreadnought for soft materials sheet metal etc. Leaves a smooth finish. Rasp for soft materials And wood. Produces a rough surface. & a & b A A A A A A & b A A A y .t J HANDLES FOR FILES AND RASPS MAN Varnished wood handles with nickel-plated steel ferrule. Supplied in boxes of 12. MP Plastic handles. Supplied singly. FILES 100 mm 125 mm 150 mm 175 mm 200 mm 250 mm 300 mm Flat Half-round MAN.3 MP4 MAN.3 MP.3 MAN.2 MP.2 MAN.1 MP.1 MAN.0 MP.0 Square MAN.4 MAN.3 MP.3 MAN.1 MP.0 Round MAN.4 MAN.4 MAN.4 MP.4 MAN.3 MP.3 MAN.2 MP.1 MAN.0 MP.0 Three-square MAN.3 MP.3 MAN.2 MP.1 MAN.1 MP.0 Flat warding Cant pillar knife MAN.3 MP.4 MAN.2 MP.3 MAN.2 MP.2 MAN.1 MP.1 Three-square straight MAN.2 MP.3 MAN.1 MP.2 MAN.1 MP.1 MAN.1 MP.0 Three-square tapered MAN.4 MAN.4 MAN.4 MAN.2 Milled MP.0 Round for chainsaws MP.4 MP.4 Turners MP.1 MP.0 Flat and half-round for alu. MP.0 RASPS 100 mm 125 mm 150 mm 175 mm 200 mm 250 mm 300 mm Half-round flat MP.1 MP.0 Round MP.1 Cabinet MP.2 MP.0 catalogue FACOM F05 459
