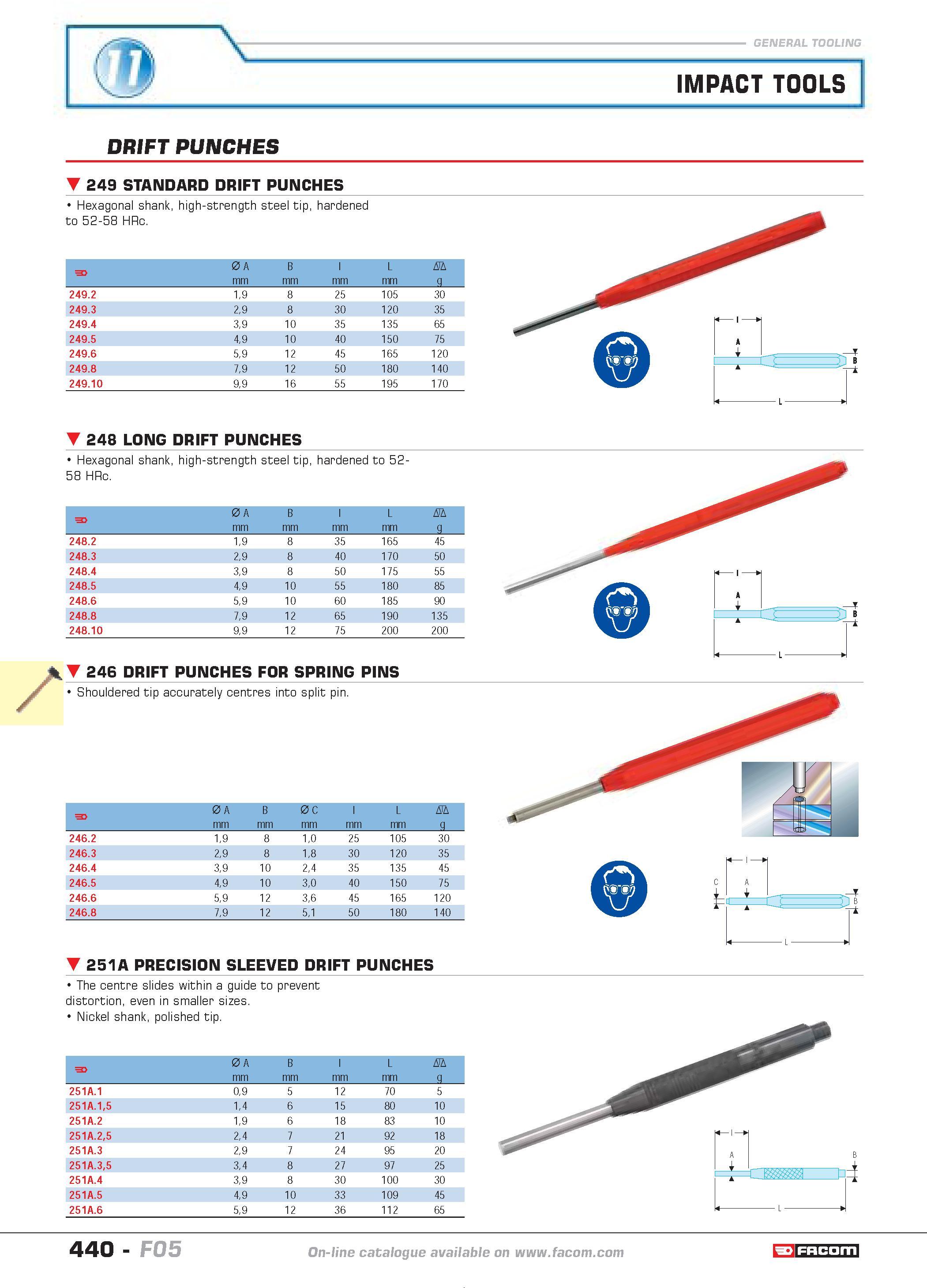

IMPACT TOOLS DRIFT PUNCHES 249 STANDARD DRIFT PUNCHES Hexagonal shank high-strength steel tip hardened to 52-58 HRc. F 0 A mm B mm I mm L mm D g 249.2 19 8 25 105 30 249.3 29 8 30 120 35 249.4 39 10 35 135 65 249.5 49 10 40 150 75 249.6 59 12 45 165 120 249.8 79 12 50 180 140 249.10 99 16 55 195 170 248 LONG DRIFT PUNCHES Hexagonal shank high-strength steel tip hardened to 5258 HRc. F 0 A mm B mm I mm L mm D g 248.2 19 8 35 165 45 248.3 29 8 40 170 50 248.4 39 8 50 175 55 248.5 49 10 55 180 85 248.6 59 10 60 185 90 248.8 79 12 65 190 135 248.10 99 12 75 200 200 246 DRIFT PUNCHES FOR SPRING PINS Shouldered tip accurately centres into split pin. F 0 A mm B mm 0 C mm I mm L mm D g 246.2 19 8 10 25 105 30 246.3 29 8 18 30 120 35 246.4 39 10 24 35 135 45 246.5 49 10 30 40 150 75 246.6 59 12 36 45 165 120 246.8 79 12 51 50 180 140 251A PRECISION SLEEVED DRIFT PUNCHES C 1 The centre slides within a guide to prevent distortion even in smaller sizes. Nickel shank polished tip. F 0 A mm B mm I mm L mm D g 251A.1 09 5 12 70 5 251A.15 14 6 15 80 10 251A.2 19 6 18 83 10 251A.25 24 7 21 92 18 251A.3 29 7 24 95 20 251A.35 34 8 27 97 25 251A.4 39 8 30 100 30 251A.5 49 10 33 109 45 251A.6 59 12 36 112 65 440 catalogue FACOM F05
