275 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.278

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 278 0275 ENG Lab2u

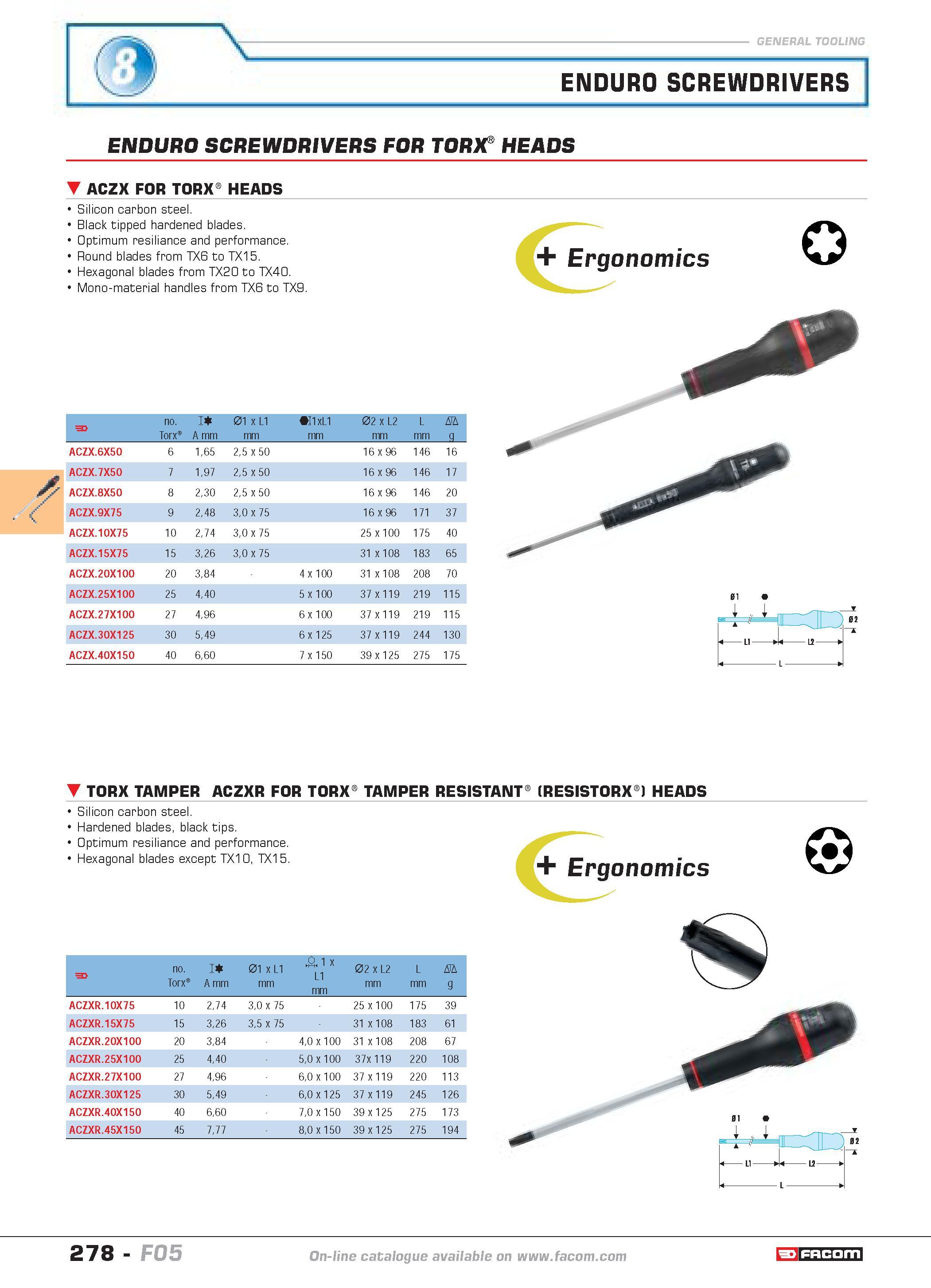

ENDURO SCREWDRIVERS ENDURO SCREWDRIVERS FOR TORX HEADS ACZX FOR TORX HEADS Silicon carbon steel. Black tipped hardened blades. Optimum resiliance and performance. Round blades from TX6 to TX15. Hexagonal blades from TX20 to TX40. Mono-material handles from TX6 to TX9. F no. Torx 5 A mm 01 x L1 mm HxL1 mm 02 x L2 mm D g ACZX.6X50 6 165 25 x 50 16 x 96 146 16 ACZX.7X50 7 197 25 x 50 16 x 96 146 17 ACZX.8X50 8 230 25 x 50 16 x 96 146 20 ACZX.9X75 9 248 30 x 75 16 x 96 171 37 ACZX.10X75 10 274 30 x 75 25 x 100 175 40 ACZX.15X75 15 326 30 x 75 31 x108 183 65 ACZX.20X100 20 384 4 x 100 31 x108 208 70 ACZX.25X100 25 440 5 x 100 37 x 119 219 115 ACZX.27X100 27 496 6 x 100 37 x 119 219 115 ACZX.30X125 30 549 6 x 125 37 x 119 244 130 ACZX.40X150 40 660 7 x 150 39 x 125 275 175 Ergonomics TORX TAMPER ACZXR FOR TORX TAMPER RESISTANT (RESISTORX ) HEADS Silicon carbon steel. Hardened blades black tips. Optimum resiliance and performance. Hexagonal blades except TX10 TX15. Ergonomics 278 catalogue FACOM F05
