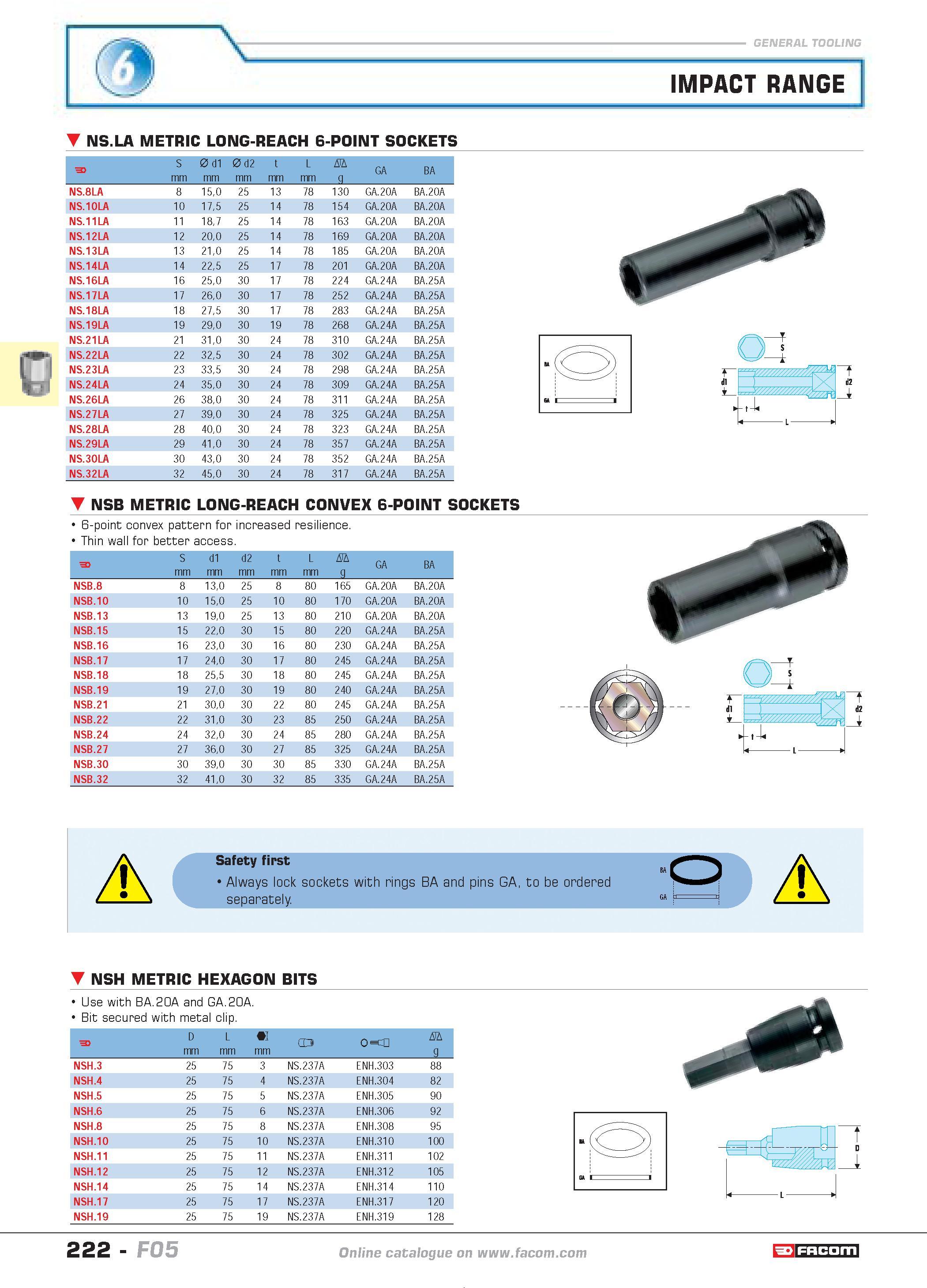

IMPACT RANGE NS.LA METRIC LONG-REACH 6-POINT SOCKETS G NSB METRIC LONG-REACH CONVEX 6-POINT SOCKETS 6-point convex pattern for increased resilience. Thin wall for better access. F S mm d1 mm d2 mm t mm L mm D q GA BA NSB.8 8 130 25 8 80 165 GA.20A BA.20A NSB.10 10 150 25 10 80 170 GA.20A BA.20A NSB.13 13 190 25 13 80 210 GA.20A BA.20A NSB.15 15 220 30 15 80 220 GA.24A BA.25A NSB.16 16 230 30 16 80 230 GA.24A BA.25A NSB.17 17 240 30 17 80 245 GA.24A BA.25A NSB.18 18 255 30 18 80 245 GA.24A BA.25A NSB.19 19 270 30 19 80 240 GA.24A BA.25A NSB.21 21 300 30 22 80 245 GA.24A BA.25A NSB.22 22 310 30 23 85 250 GA.24A BA.25A NSB.24 24 320 30 24 85 280 GA.24A BA.25A NSB.27 27 360 30 27 85 325 GA.24A BA.25A NSB.30 30 390 30 30 85 330 GA.24A BA.25A NSB.32 32 410 30 32 85 335 GA.24A BA.25A Safety first H Always lock sockets with rings BA and pins GA to be ordered separately. o 1 A NSH METRIC HEXAGON BITS Use with BA.20A and GA.20A. Bit secured with metal clip. F D mm L mm mi mm J D q NSH.3 25 75 3 NS.237A ENH.303 88 NSH.4 25 75 4 NS.237A ENH.304 82 NSH.5 25 75 5 NS.237A ENH.305 90 NSH.6 25 75 6 NS.237A ENH.306 92 NSH.8 25 75 8 NS.237A ENH.308 95 NSH.10 25 75 10 NS.237A ENH.310 100 NSH.11 25 75 11 NS.237A ENH.311 102 NSH.12 25 75 12 NS.237A ENH.312 105 NSH.14 25 75 14 NS.237A ENH.314 110 NSH.17 25 75 17 NS.237A ENH.317 120 NSH.19 25 75 19 NS.237A ENH.319 128 222 catalogue FACOM F05
