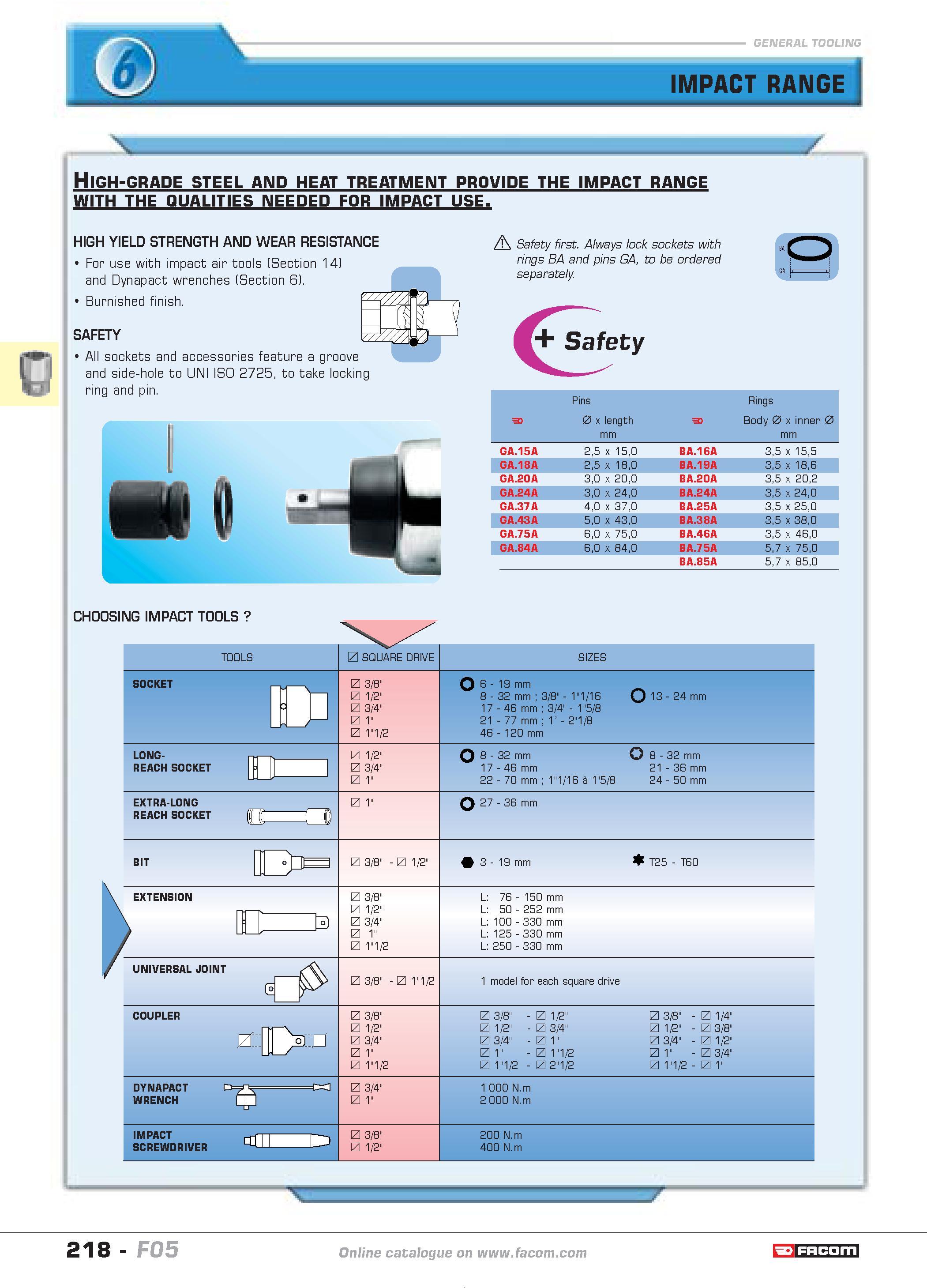

IMPACT RANGE High-grade steel and heat treatment provide the impact range WITH THE QUALITIES NEEDED FOR IMPACT USE. o T HIGH YIELD STRENGTH AND WEAR RESISTANCE For use with impact air tools (Section 14) and Dynapact wrenches (Section 6). Burnished finish. SAFETY All sockets and accessories feature a groove and side-hole to UNI ISO 2725 to take locking ring and pin. 2 Safety first. Always lock sockets with rings BA and pins GA to be ordered separately. Safety F Pins 0 x length mm F Rings Body 0 x inner 0 mm GA.15A 25 x 150 BA.16A 35 x 155 GA.18A 25 x 180 BA.19A 35 x 186 GA.20A 30 x 200 BA.20A 35 x 202 GA.24A 30 x 240 BA.24A 35 x 240 GA.37A 40 x 370 BA.25A 35 x 250 GA.43A 50 x 430 BA.38A 35 x 380 GA.75A 60 x 750 BA.46A 35 x 460 GA.84A 60 x 840 BA.75A 57 x 750 BA.85A 57 x 850 CHOOSING IMPACT TOOLS 218 catalogue FACOM F05
