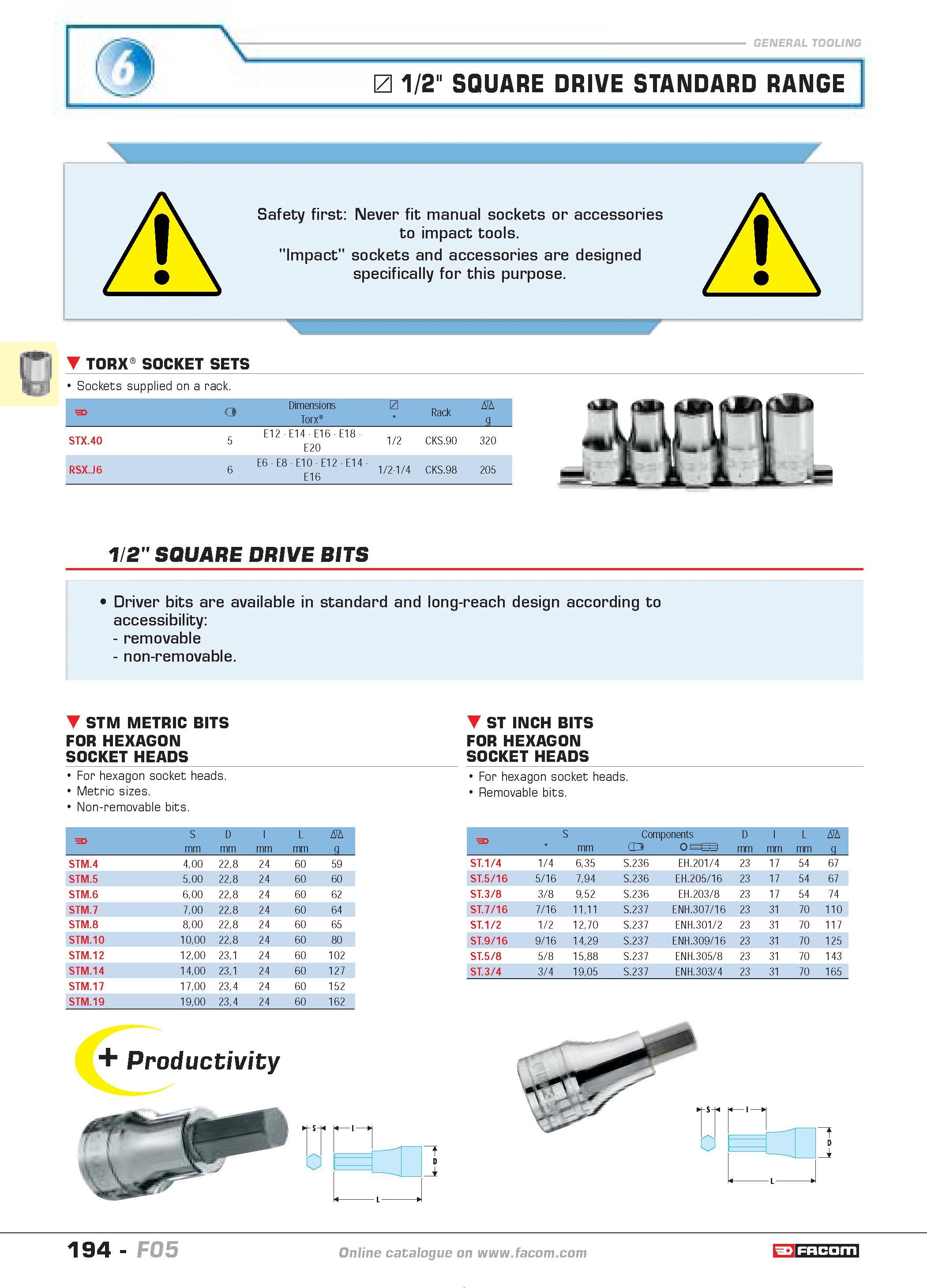

1/2" SQUARE DRIVE STANDARD RANGE Safety first Never fit manual sockets or accessories to impact tools. "Impact" sockets and accessories are designed specifically for this purpose. JJ TORX SOCKET SETS Sockets supplied on a rack F O Dimensions Torx L Rack D g STX.40 5 E12 E14 E16 E18 -E20 1 2 CKS.90 320 RSX.J6 6 E6 E8 E10 E12 E14 -E16 1 2-1 4 CKS.98 205 1/2" SQUARE DRIVE BITS Driver bits are available in standard and long-reach design according to accessibility removable non-removable. STM METRIC BITS ST INCH BITS FOR HEXAGON FOR HEXAGON SOCKET HEADS SOCKET HEADS For hexagon socket heads For hexagon socket heads Metric sizes Removable bits Non-removable bits F S mm D mm I mm L mm D g STM.4 400 228 24 60 59 STM.5 500 228 24 60 60 STM.6 600 228 24 60 62 STM.7 700 228 24 60 64 STM.8 800 228 24 60 65 STM.10 1000 228 24 60 80 STM.12 1200 231 24 60 102 STM.14 1400 231 24 60 127 STM.17 1700 234 24 60 152 STM.19 1900 234 24 60 162 F S mm Components J D mm I mm L mm D g ST.1 4 1 4 635 S.236 EH.201 4 23 17 54 67 ST.5 16 5 16 794 S.236 EH.205 16 23 17 54 67 ST.3 8 3 8 952 S.236 EH.203 8 23 17 54 74 ST.7 16 7 16 1111 S.237 ENH.307 16 23 31 70 110 ST.1 2 1 2 1270 S.237 ENH.301 2 23 31 70 117 ST.9 16 9 16 1429 S.237 ENH.309 16 23 31 70 125 ST.5 8 5 8 1588 S.237 ENH.305 8 23 31 70 143 ST.3 4 3 4 1905 S.237 ENH.303 4 23 31 70 165 194 catalogue FACOM F05
