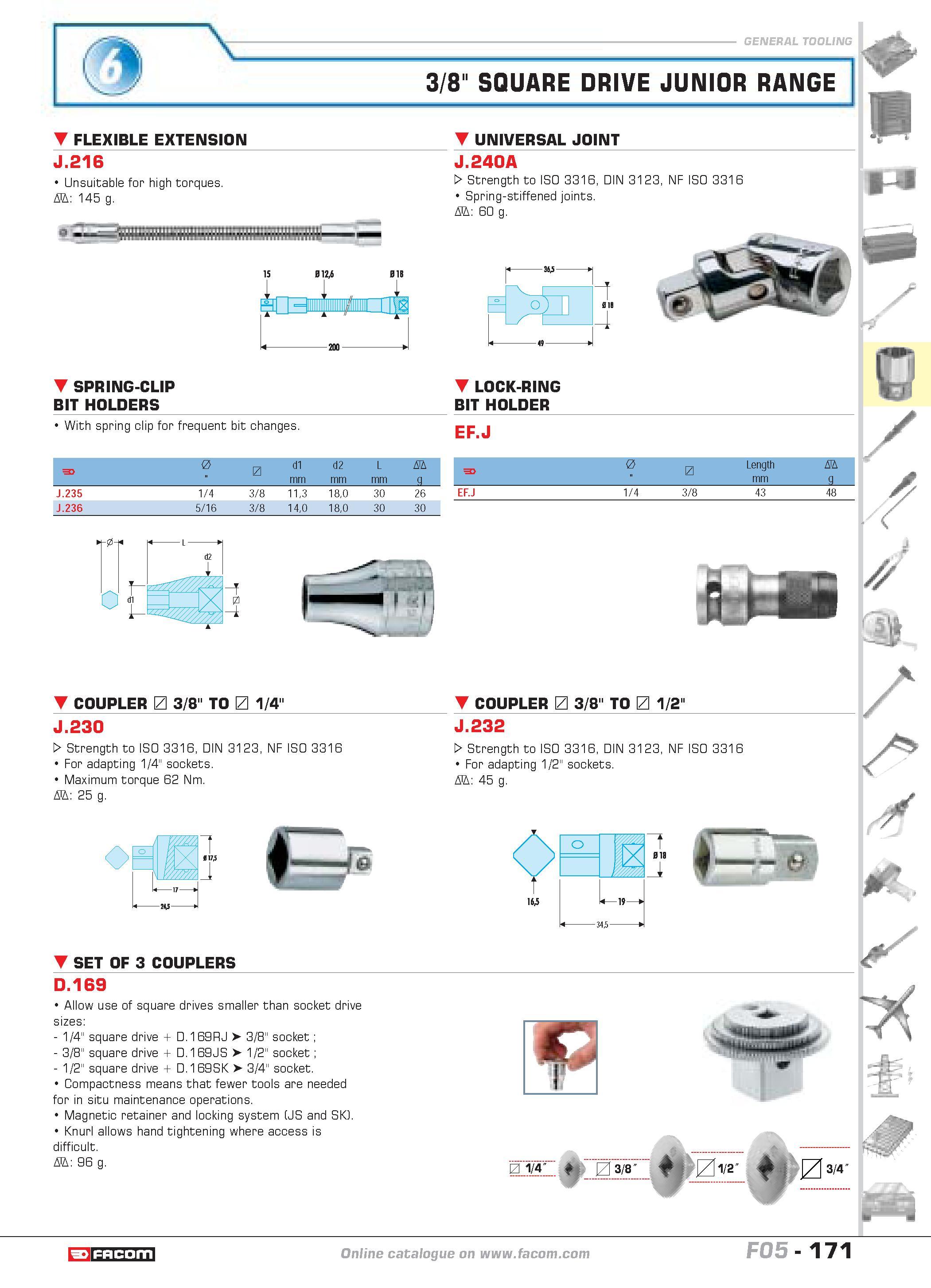

3/8" SQUARE DRIVE JUNIOR RANGE FLEXIBLE EXTENSION UNIVERSAL JOINT J.216 Unsuitable for high torques. D 145 g. J.240A W Strength to ISO 3316 DIN 3123 NF ISO 3316 Spring-stiffened joints. D 60 g. ike 0126 0 IB SPRING-CLIP BIT HOLDERS LOCK-RING BIT HOLDER With spring clip for frequent bit changes. EF.J F n L d1 d2 L D f n L Length D mm g mm g J.235 1 4 3 8 113 180 30 26 EF.J 1 4 3 8 43 48 J.236 5 16 3 8 140 180 30 30 0 f -k COUPLER L 3/8" TO L 1/4" COUPLER L 3/8" TO 1/2" J.230 W Strength to ISO 3316 DIN 3123 NF ISO 3316 For adapting 1/4" sockets. Maximum torque 62 Nm. D 25 g. J.232 W Strength to ISO 3316 DIN 3123 NF ISO 3316 For adapting 1/2" sockets. D 45 g. SET OF 3 COUPLERS m. D.169 Allow use of square drives smaller than socket drive sizes 1/4" square drive D.169RJ Q 3/8" socket; 3/8" square drive D.169JS Q 1/2" socket; 1/2" square drive D.169SK Q 3/4" socket. Compactness means that fewer tools are needed for in situ maintenance operations. Magnetic retainer and locking system (JS and SK). Knurl allows hand tightening where access is difficult. D 96 g. d2 d1 catalogue FACOM F05-171
