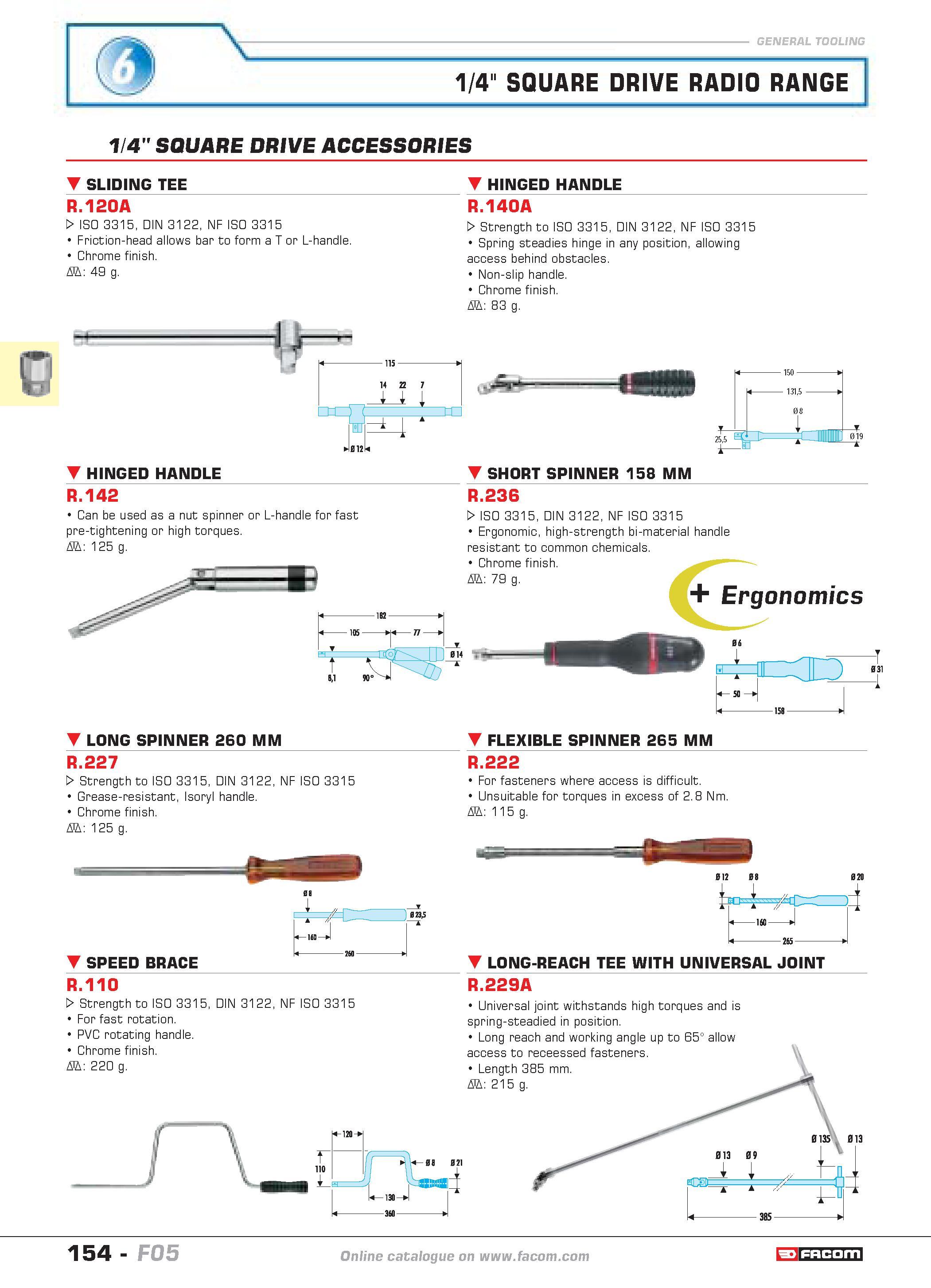

1/4" SQUARE DRIVE RADIO RANGE 1/4" SQUARE DRIVE ACCESSORIES sliding tee hinged handle R.120A W ISO 3315 DIN 3122 NF ISO 3315 Friction-head allows bar to form a T or L-handle. Chrome finish. D 49 g. R.140A W Strength to ISO 3315 DIN 3122 NF ISO 3315 Spring steadies hinge in any position allowing access behind obstacles. Non-slip handle. Chrome finish. D 83 g. Q 115 14 22 7 -L-L I im 0 8 1 r j-1. V hinged handle SHORT SPINNER 158 MM R.142 Can be used pre-tightening D 125 g. as a nut spinner or L-handle for fast or high torques. R.236 W ISO 3315 DIN 3122 NF ISO 3315 Ergonomic high-strength bi-material handle resistant to common chemicals. Chrome finish. D 79 g. Ergonomics II SO 158 031 -I LONG SPINNER 260 MM FLEXIBLE SPINNER 265 MM R.227 W Strength to ISO 3315 DIN 3122 NF ISO 3315 Grease-resistant Isoryl handle. Chrome finish. D 125 g. R.222 For fasteners where access is difficult. Unsuitable for torques in excess of 2.8 Nm. D 115 g. SPEED BRACE long-reach tee with universal joint R.110 W Strength to ISO 3315 DIN 3122 NF ISO 3315 For fast rotation. PVC rotating handle. Chrome finish. D 220 g. R.229A Universal joint withstands high torques and is spring-steadied in position. Long reach and working angle up to 65 allow 154 catalogue FACOM F05
