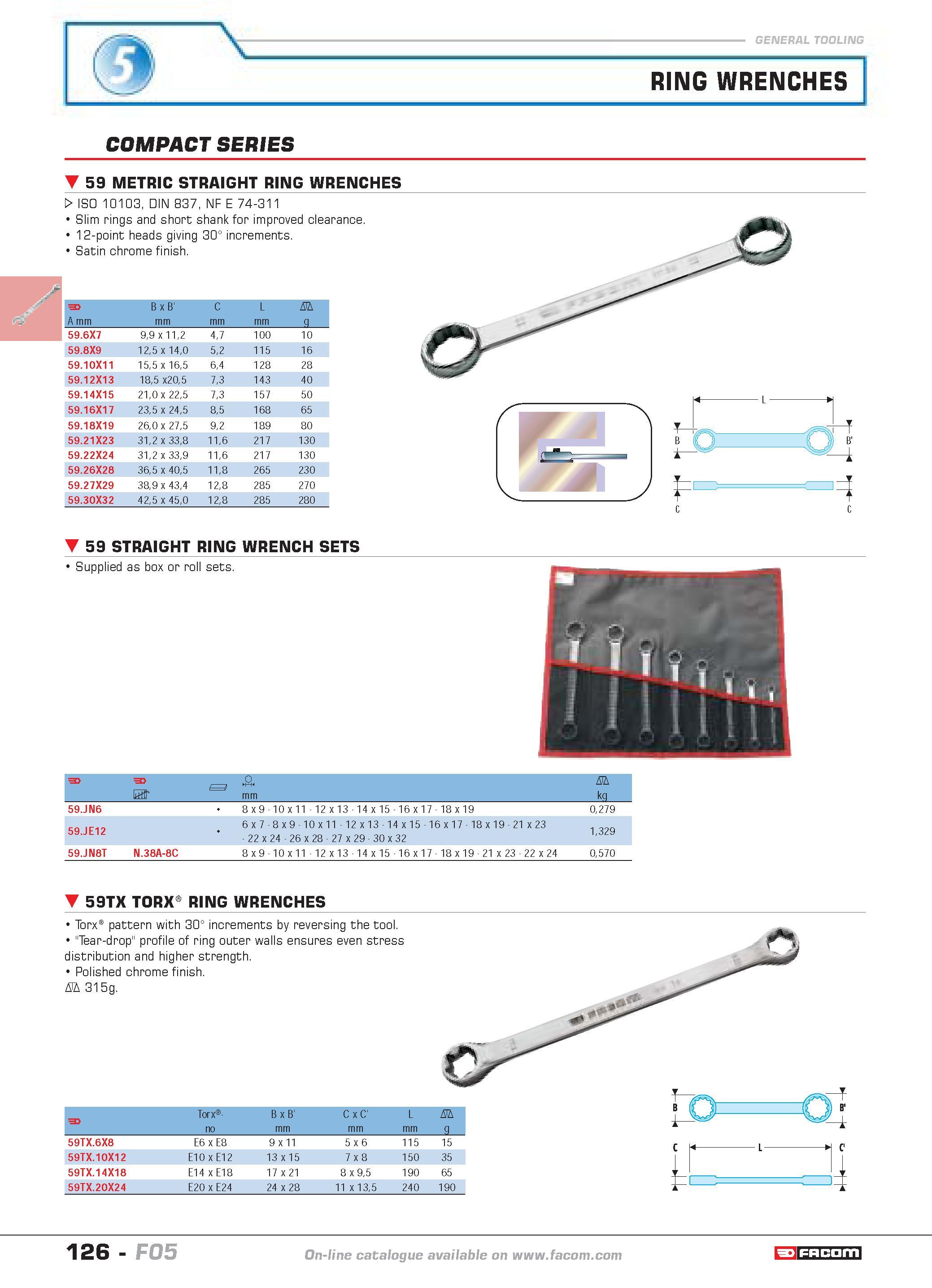

RING WRENCHES COMPACT SERIES 59 METRIC STRAIGHT RING WRENCHES W ISO 10103 DIN 837 NF E 74-311 Slim rings and short shank for improved clearance. 12-point heads giving 30 increments. Satin chrome finish. m F B B' C L D A mm g 59.6X7 99 x 112 47 100 10 59.8X9 125 140 52 115 16 59.10X11 155 165 64 128 28 59.12X13 185 x205 73 143 40 59.14X15 210 225 73 157 50 59.16X17 235 245 85 168 65 59.18X19 260 275 92 189 80 59.21X23 312 338 116 217 130 59.22X24 312 339 116 217 130 59.26X28 365 405 118 265 230 59.27X29 389 434 128 285 270 59.30X32 425 450 128 285 280 59 STRAIGHT RING WRENCH SETS Supplied as box or roll sets. F F U 3 H1 M-M mm D kg 59.JN6 8 x 9 10 x 11 12 x 13 14 x 15 16 x 17 18 x 19 0279 59.JE12 6 x 7 8 x 9 10 x 11 12 x 13 14 x 15 16 x 17 18 x 19 21 x 23 22 x 24 26 x 28 27 x 29 30 x 32 1329 59.JN8T N.38A-8C 8 x 9 10 x 11 12 x 13 14 x 15 16 x 17 18 x 19 21 x 23 22 x 24 0570 59TX TORX RING WRENCHES Torx pattern with 30 increments by reversing the tool. "Tear-drop" profile of ring outer walls ensures even stress distribution and higher strength. Polished chrome finish. D 315g. F Torx no B x B' mm C x C' mm L mm D g 59TX.6X8 E6 x E8 9 x 11 5 x 6 115 15 59TX.10X12 E10 x E12 13 x 15 7 x 8 150 35 59TX.14X18 E14 x E18 17 x 21 8 x 95 190 65 59TX.20X24 E20x E24 24 x 28 11 x 135 240 190 126 F05 catalogue catalogue FACOM F05
