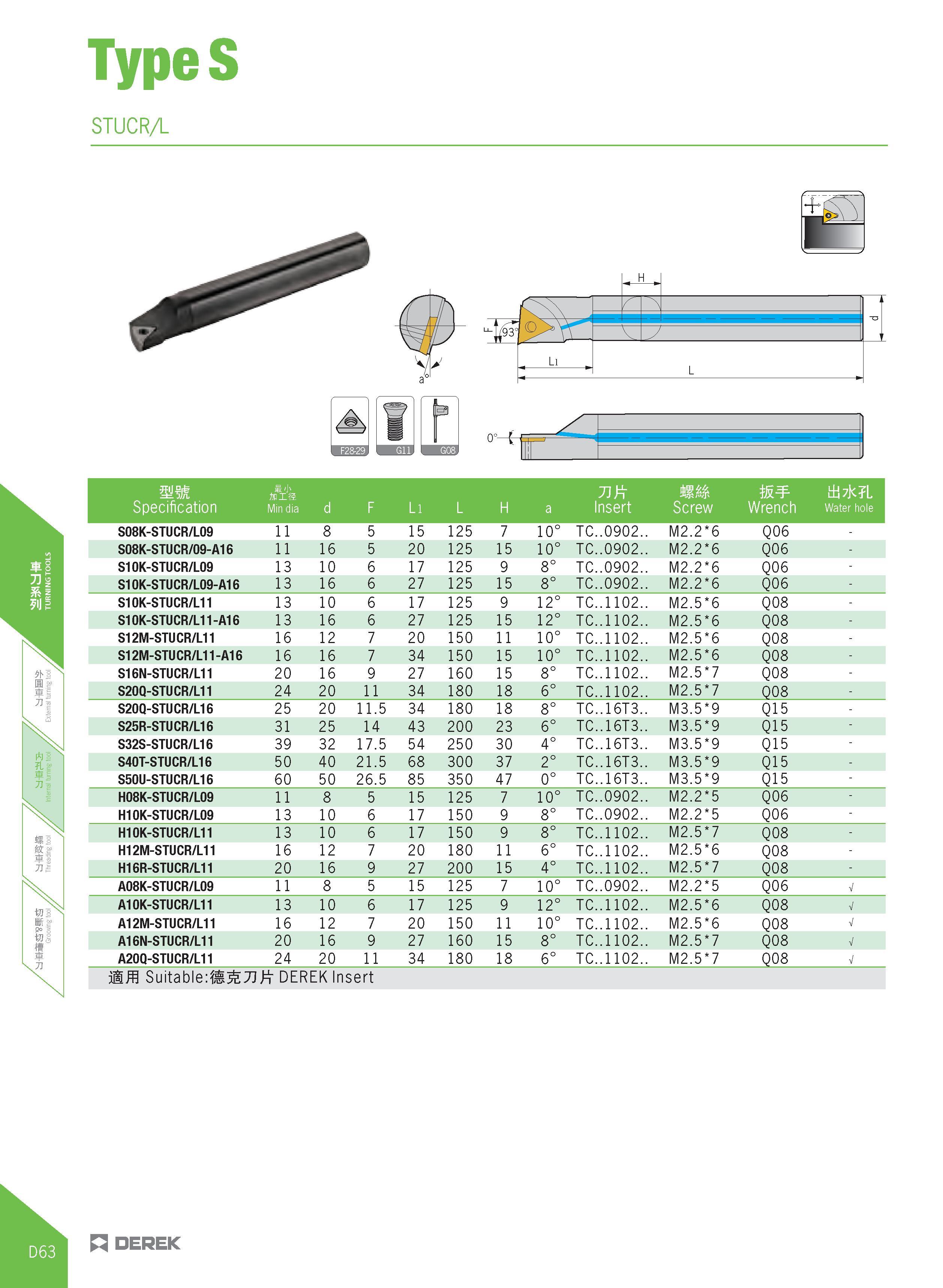

TypeS STUCRA cr-4r mm H'J' ini 71 W ttS7K L Specification Min dia d F Li L H a Insert Screw Wrench Water hole S08K-STUCR/L09 ii 8 5 15 125 7 10° TC..0902.. M2.2 6 Q06 - S08K-STUCR/09-A16 ii 16 5 20 125 15 10° TC..0902.. M2.2 6 Q06 - S10K-STUCR/L09 13 10 6 17 125 9 8° TC..0902.. M2.2 6 Q06 - S10K-STUCR/L09-A16 13 16 6 27 125 15 8° TC..0902.. M2.2 6 Q06 - S10K-STUCR/L11 13 10 6 17 125 9 12° TC..1102.. M2.5 6 Q08 - S10K-STUCR/L11 -A16 13 16 6 27 125 15 12° TC..1102.. M2.5 6 Q08 - S12M-STUCR/L11 16 12 7 20 150 11 10° TC..1102.. M2.5 6 Q08 - S12M-STU CR/L11 -A16 16 16 7 34 150 15 10° TC..1102.. M2.5 6 Q08 - S16N-STUCR/L11 20 16 9 27 160 15 8° TC..1102.. M2.5 7 Q08 - S20Q-STUCR/L11 24 20 11 34 180 18 6° TC..1102.. M2.5 7 Q08 - S20Q-STUCR/L16 25 20 11.5 34 180 18 8° TC..16T3.. M3.5 9 Q15 - S25R-STUCR/L16 31 25 14 43 200 23 6° TC..16T3.. M3.5 9 Q15 - S32S-STUCR/L16 39 32 17.5 54 250 30 4° TC..16T3.. M3.5 9 Q15 - S40T-STUCR/L16 50 40 21.5 68 300 37 2° TC..16T3.. M3.5 9 Q15 - S50U-STUCR/L16 60 50 26.5 85 350 47 0° TC..16T3.. M3.5 9 Q15 - H08K-STUCR/L09 11 8 5 15 125 7 10° TC..0902.. M2.2 5 Q06 - H10K-STUCR/L09 13 10 6 17 150 9 8° TC..0902.. M2.2 5 Q06 - H10K-STUCR/L11 13 10 6 17 150 9 8° TC..1102.. M2.5 7 Q08 - H12M-STUCR/L11 16 12 7 20 180 11 6° TC..1102.. M2.5 6 Q08 - H16R-STUCR/L11 20 16 9 27 200 15 4° TC..1102.. M2.5 7 Q08 - A08K-STUCR/L09 11 8 5 15 125 7 10° TC..0902.. M2.2 5 Q06 V A10K-STUCR/L11 13 10 6 17 125 9 12° TC..1102.. M2.5 6 Q08 V A12M-STUCR/L11 16 12 7 20 150 11 10° TC..1102.. M2.5 6 Q08 V A16N-STUCR/L11 20 16 9 27 160 15 8° TC..1102.. M2.5 7 Q08 V A20Q-STUCR/L11 24 20 11 34 180 18 6° TC..1102.. M2.5 7 Q08 V Suitable:fl£7I DEREK Insert n DEREK
