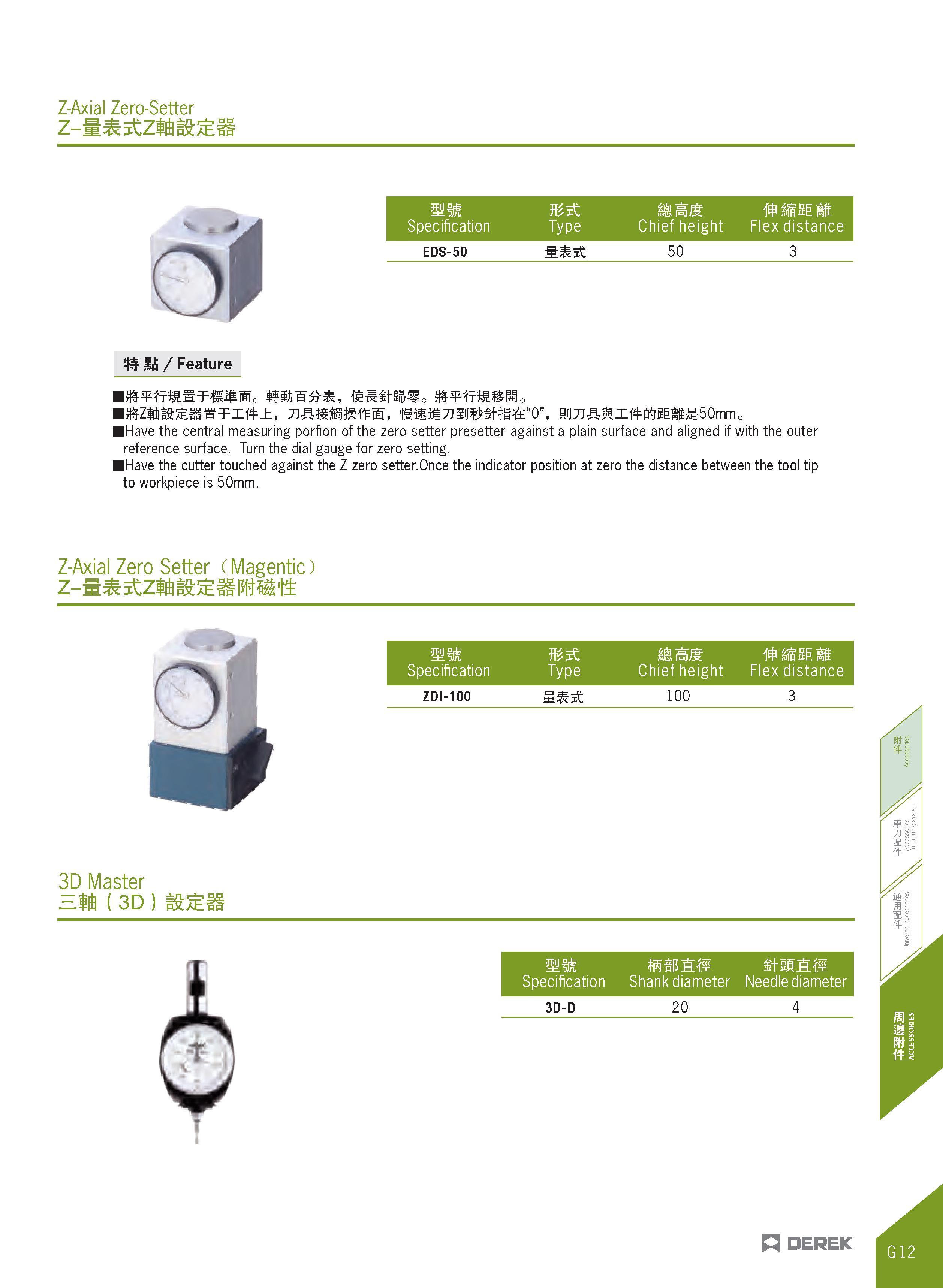

Z-Axial Zero-Setter M US Specification Type Chief height Flex distance EDS-50 50 3 : £ / Feature Have the central measuring portion of the zero setter presetter against a plain surface and aligned if with the outer reference surface. Turn the dial gauge for zero setting. Have the cutter touched against the Z zero setter.Once the indicator position at zero the distance between the tool tip to workpiece is 50mm. Z-Axial Zero Setter (Magentic) Specification Type Chief height Flex distance ZDI-100 mUit 100 3 3D Master ( 3D ) M ftsffife Specification Shank diameter Needle diameter 3D-D 20 4 H DEREK
