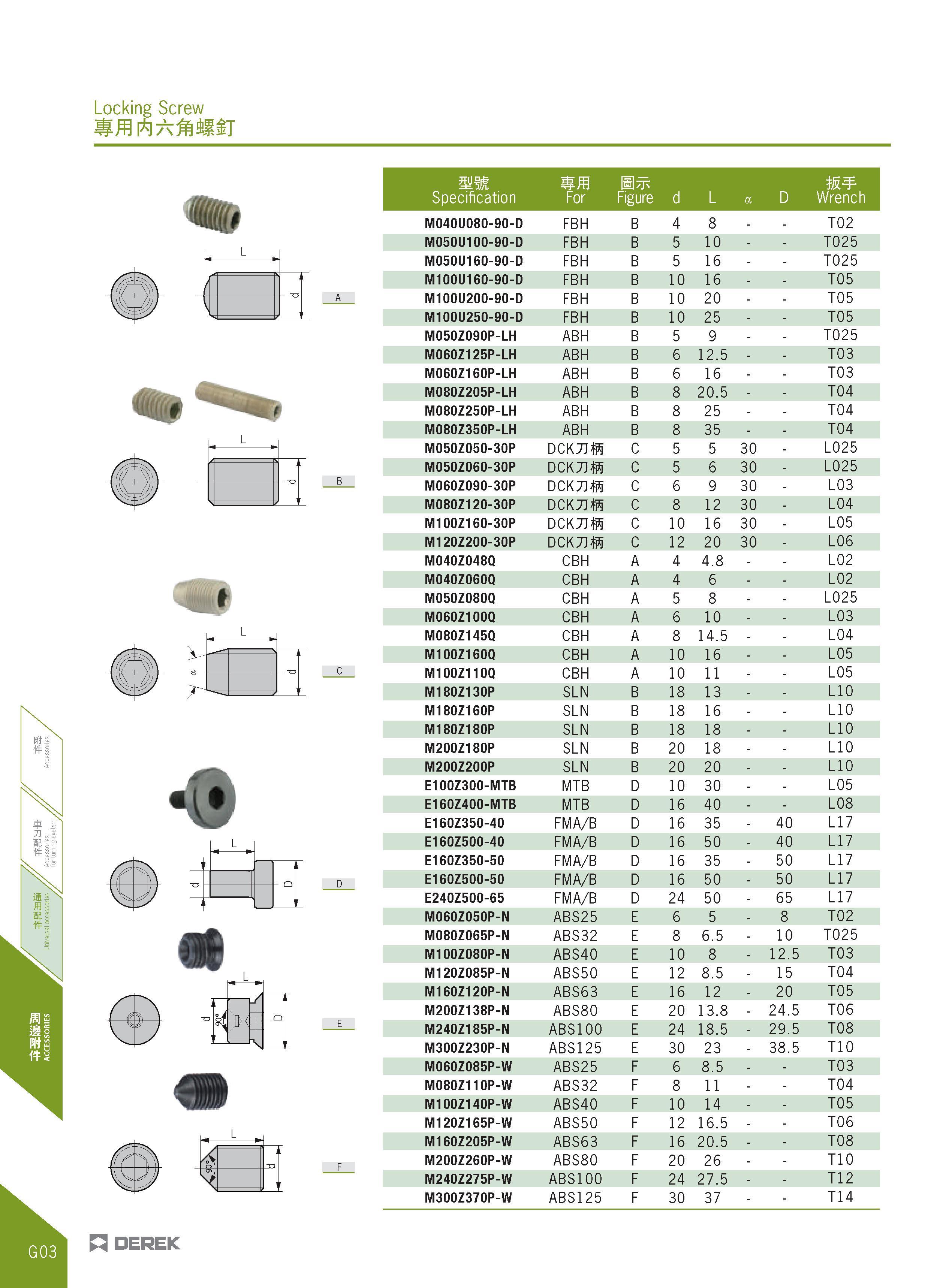

462 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.G03

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. G03 0462 Lab2u

L / ik V V c r H >/= / ii = Q Oit I U ,= V V mm Bttc Specification For Figure d L a D Wrench M040U080-90-D FBH B 4 8 T02 M050U100-90-D FBH B 5 10 T025 M050U160-90-D FBH B 5 16 T025 M100U160-90-D FBH B 10 16 T05 M100U200-90-D FBH B 10 20 T05 M100U250-90-D FBH B 10 25 T05 M050Z090P-LH ABH B 5 9 T025 M060Z125P-LH ABH B 6 12.5 T03 M060Z160P-LH ABH B 6 16 T03 M080Z205P-LH ABH B 8 20.5 T04 M080Z250P-LH ABH B 8 25 T04 M080Z350P-LH ABH B 8 35 T04 M050Z050-30P DCKJIffi C 5 5 30 - L025 M050Z060-30P DCKJIffi C 5 6 30 - L025 M060Z090-30P DCKJIffi C 6 9 30 - L03 M080Z120-30P DCKJIffi C 8 12 30 - L04 M100Z160-30P DCKJIffi C 10 16 30 - L05 M120Z200-30P DCKJIffi C 12 20 30 - L06 M040Z048Q CBH A 4 4.8 L02 M040Z060Q CBH A 4 6 L02 M050Z080Q CBH A 5 8 L025 M060Z100Q CBH A 6 10 L03 M080Z145Q CBH A 8 14.5 L04 M100Z160Q CBH A 10 16 L05 M100Z110Q CBH A 10 11 L05 M180Z130P SLN B 18 13 L10 M180Z160P SLN B 18 16 L10 M180Z180P SLN B 18 18 L10 M200Z180P SLN B 20 18 L10 M200Z200P SLN B 20 20 L10 E100Z300-MTB MTB D 10 30 L05 E160Z400-MTB MTB D 16 40 L08 E160Z350-40 FMA/B D 16 35 - 40 L17 E160Z500-40 FMA/B D 16 50 - 40 L17 E160Z350-50 FMA/B D 16 35 - 50 L17 E160Z500-50 FMA/B D 16 50 - 50 L17 E240Z500-65 FMA/B D 24 50 - 65 L17 M060Z050P-N ABS25 E 6 5 - 8 T02 M080Z065P-N ABS32 E 8 6.5 - 10 T025 M100Z080P-N ABS40 E 10 8 - 12.5 T03 M120Z085P-N ABS50 E 12 8.5 - 15 T04 M160Z120P-N ABS63 E 16 12 - 20 T05 M200Z138P-N ABS80 E 20 13.8 - 24.5 T06 M240Z185P-N ABS100 E 24 18.5 - 29.5 T08 M300Z230P-N ABS125 E 30 23 - 38.5 no M060Z085P-W ABS25 F 6 8.5 T03 M080Z110P-W ABS32 F 8 11 T04 M100Z140P-W ABS40 F 10 14 T05 M120Z165P-W ABS50 F 12 16.5 T06 M160Z205P-W ABS63 F 16 20.5 T08 M200Z260P-W ABS80 F 20 26 T10 M240Z275P-W ABS100 F 24 27.5 T12 M300Z370P-W ABS125 F 30 37 T14
