243 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.C39

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. C39 0243 Lab2u

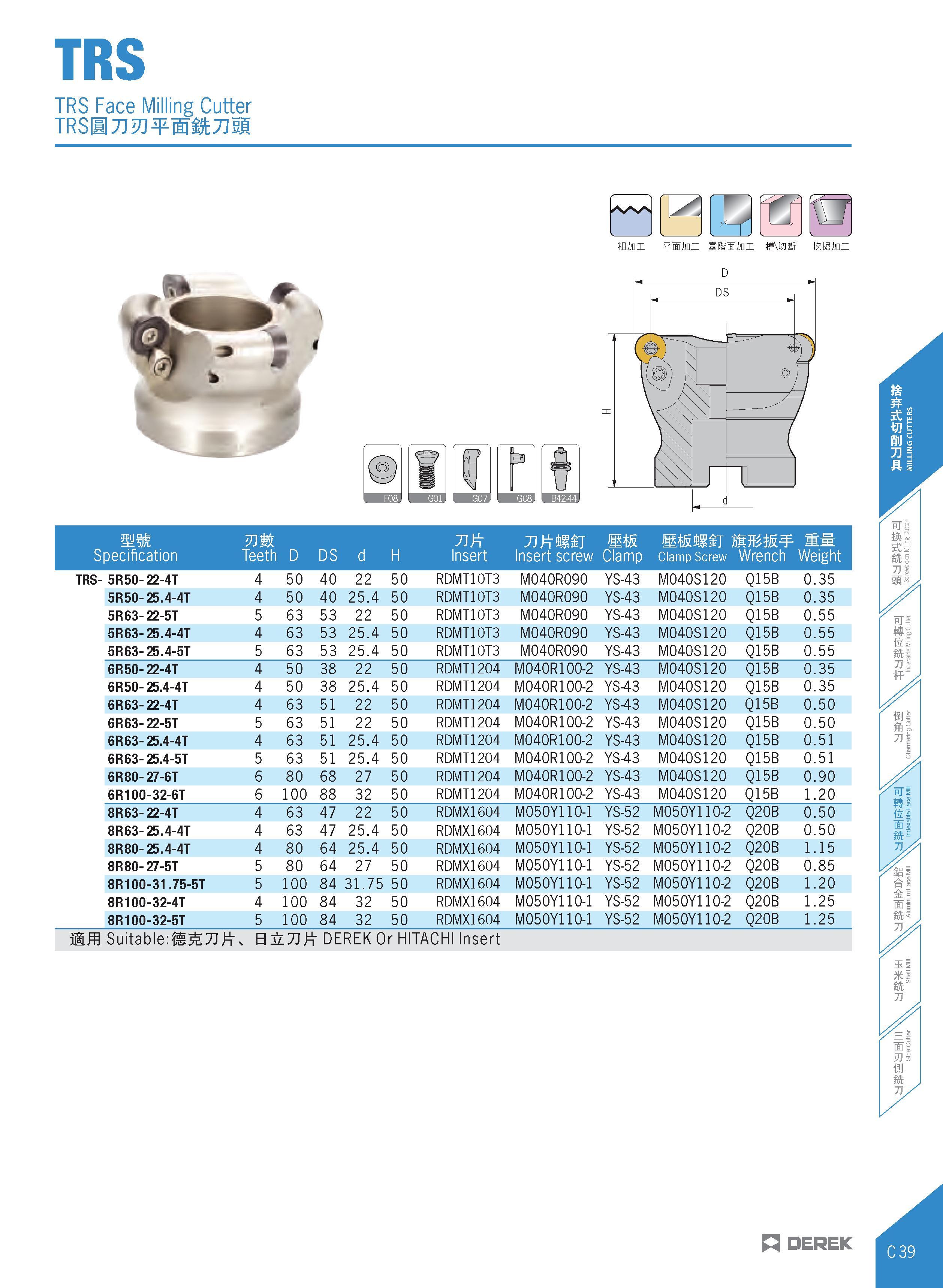

TRS TRS Face Milling Cutter TRSHUJ2J¥ kJJ5g ffini Wini IISIIbi HWHf JSSJrai D B mm Specification mm Teeth D DS d H Insert 71 ft mu Insert screw Clamp stsssj mmtm ciamp Screw Wrench Weight TRS- 5R 50-22-4T 4 50 40 22 50 RDMT10T3 M040R090 YS-43 M040S120 Q15B 0.35 5R 50-25.4-4T 4 50 40 25.4 50 RDMT10T3 M040R090 YS-43 M040S120 Q15B 0.35 5R 63-22-5T 5 63 53 22 50 RDMT10T3 M040R090 YS-43 M040S120 Q15B 0.55 5R 63-25.4-4T 4 63 53 25.4 50 RDMT10T3 M040R090 YS-43 M040S120 Q15B 0.55 5R 63-25.4-5T 5 63 53 25.4 50 RDMT10T3 M040R090 YS-43 M040S120 Q15B 0.55 6R 50-22-4T 4 50 38 22 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.35 6R 50-25.4-4T 4 50 38 25.4 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.35 6R 63-22-4T 4 63 51 22 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.50 6R 63-22-5T 5 63 51 22 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.50 6R 63-25.4-4T 4 63 51 25.4 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.51 6R 63-25.4-5T 5 63 51 25.4 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.51 6R 80-27-6T 6 80 68 27 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 0.90 6R100-32-6T 6 100 88 32 50 RDMT1204 M040R100-2 YS-43 M040S120 Q15B 1.20 8R 63-22-4T 4 63 47 22 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 0.50 8R 63-25.4-4T 4 63 47 25.4 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 0.50 8R 80-25.4-4T 4 80 64 25.4 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 1.15 8R 80-27-5T 5 80 64 27 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 0.85 8R100-31.75-5T 5 100 84 31.75 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 1.20 8R100-32-4T 4 100 84 32 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 1.25 8R100-32-5T 5 100 84 32 50 RDMX1604 M050Y110-1 YS-52 M050Y110-2 Q20B 1.25 MM Suitable:ffi3£7JJi\ RjlT DEREK Or HITACHI Insert DEPEK
