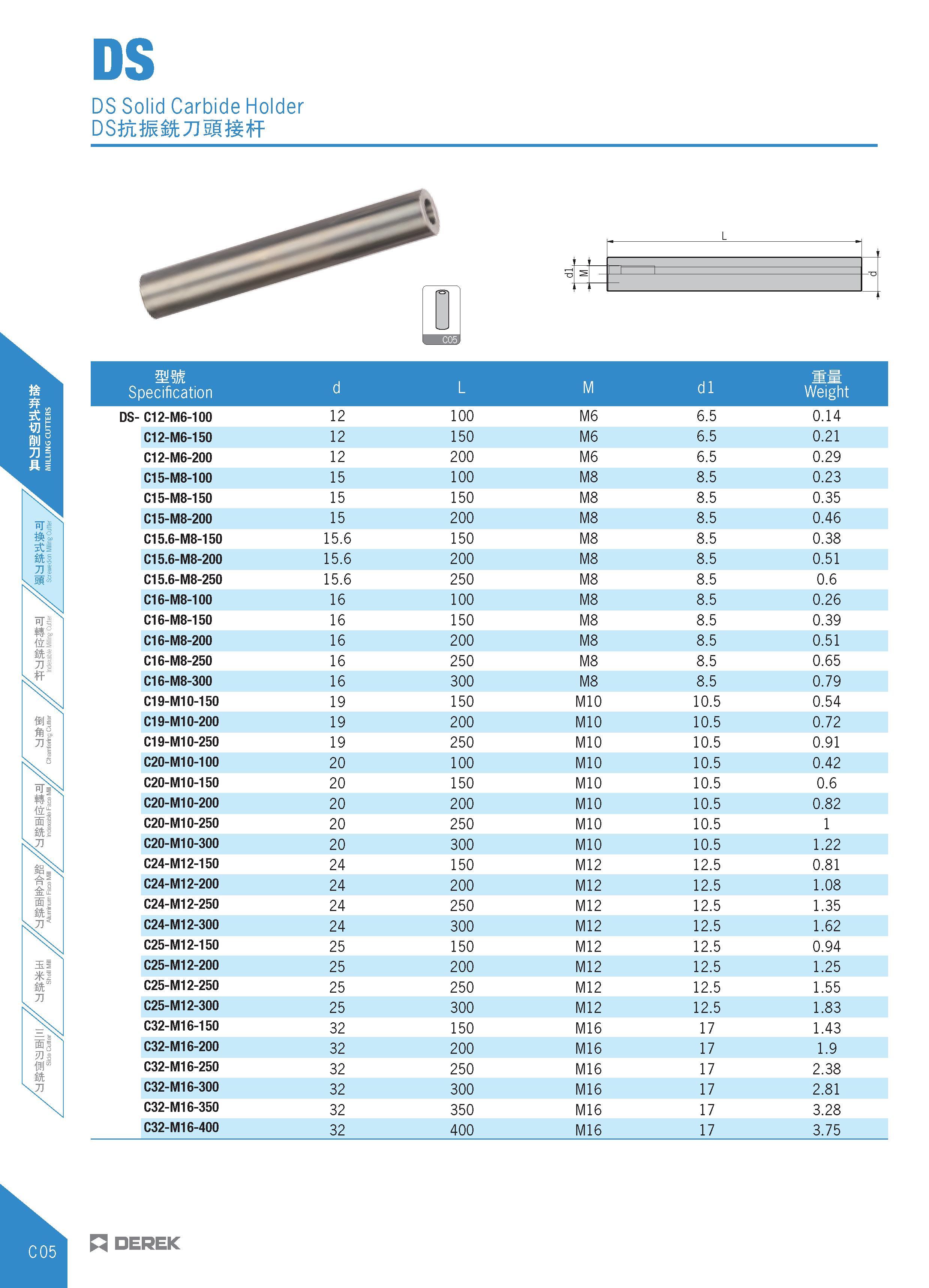

DS DS Solid Carbide Holder DSiaifffcJJSg ft I Specification d L M dl Weight DS- C12-M6-100 12 100 M6 6.5 0.14 C12-M6-150 12 150 M6 6.5 0.21 C12-M6-200 12 200 M6 6.5 0.29 C15-M8-100 15 100 M8 8.5 0.23 C15-M8-150 15 150 M8 8.5 0.35 C15-M8-200 15 200 M8 8.5 0.46 C15.6-M8-150 15.6 150 M8 8.5 0.38 C15.6-M8-200 15.6 200 M8 8.5 0.51 C15.6-M8-250 15.6 250 M8 8.5 0.6 C16-M8-100 16 100 M8 8.5 0.26 C16-M8-150 16 150 M8 8.5 0.39 C16-M8-200 16 200 M8 8.5 0.51 C16-M8-250 16 250 M8 8.5 0.65 C16-M8-300 16 300 M8 8.5 0.79 C19-M10-150 19 150 M10 10.5 0.54 C19-M10-200 19 200 M10 10.5 0.72 C19-M10-250 19 250 M10 10.5 0.91 C20-M10-100 20 100 M10 10.5 0.42 C20-M10-150 20 150 M10 10.5 0.6 C20-M10-200 20 200 M10 10.5 0.82 C20-M10-250 20 250 M10 10.5 1 C20-M10-300 20 300 M10 10.5 1.22 C24-M12-150 24 150 M12 12.5 0.81 C24-M12-200 24 200 M12 12.5 1.08 C24-M12-250 24 250 M12 12.5 1.35 C24-M12-300 24 300 M12 12.5 1.62 C25-M12-150 25 150 M12 12.5 0.94 C25-M12-200 25 200 M12 12.5 1.25 C25-M12-250 25 250 M12 12.5 1.55 C25-M12-300 25 300 M12 12.5 1.83 C32-M16-150 32 150 M16 17 1.43 C32-M16-200 32 200 M16 17 1.9 C32-M16-250 32 250 M16 17 2.38 C32-M16-300 32 300 M16 17 2.81 C32-M16-350 32 350 M16 17 3.28 C32-M16-400 32 400 M16 17 3.75 n DEREK
