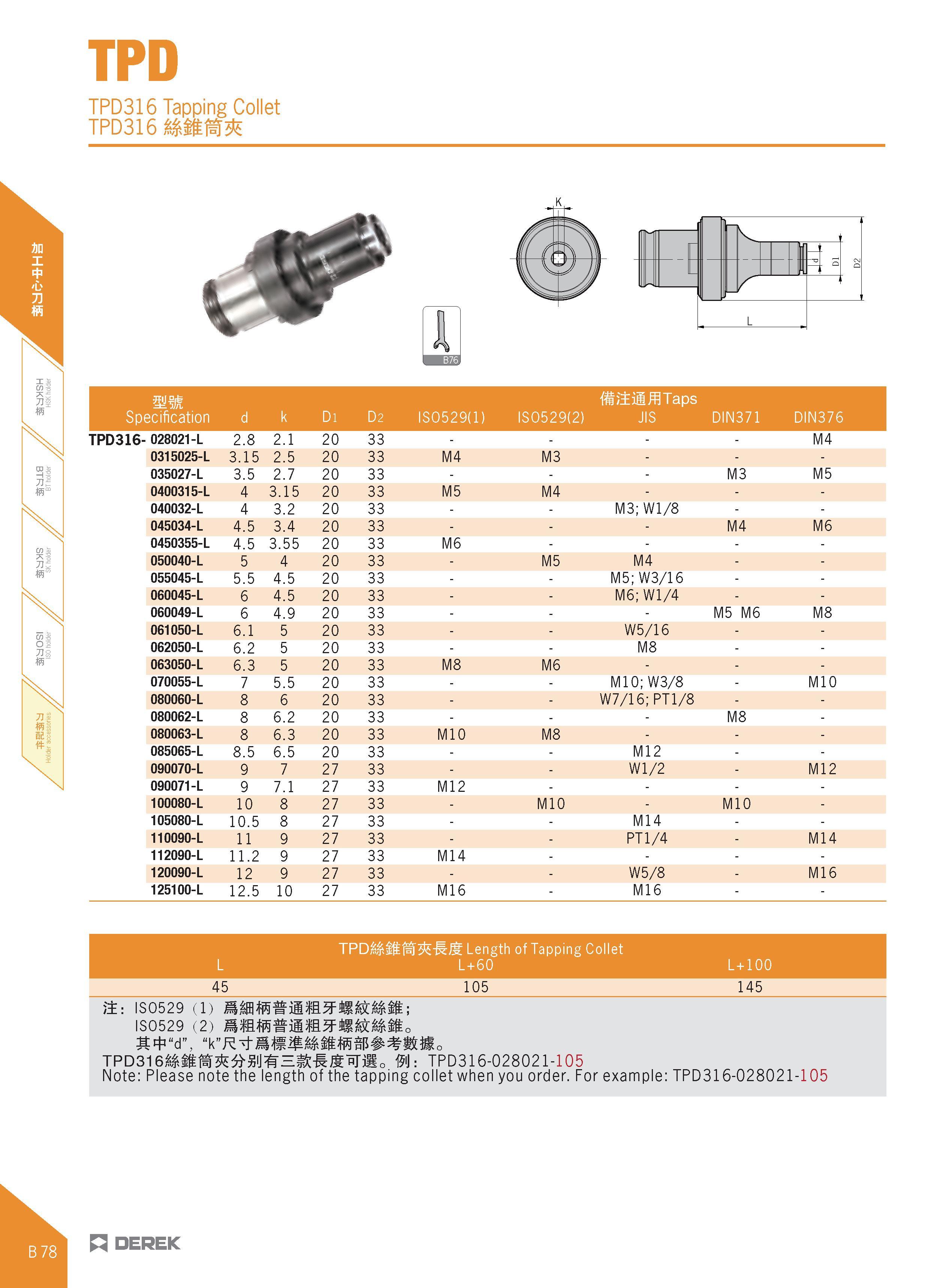

TPD TPD316 Tapping Collet TPD316 fitj±iIfflTaps Specification d k Di D2 IS0529(1) IS0529(2) JIS DIN371 DIN376 TPD316- 028021-L 2.8 2.1 20 33 M4 0315025-L 3.15 2.5 20 33 M4 M3 - 035027-L 3.5 2.7 20 33 - M3 M5 0400315-L 4 3.15 20 33 M5 M4 - 040032-L 4 3.2 20 33 M3; Wl/8 045034-L 4.5 3.4 20 33 - M4 M6 0450355-L 4.5 3.55 20 33 M6 050040-L 5 4 20 33 - M5 M4 055045-L 5.5 4.5 20 33 M5; W3/16 060045-L 6 4.5 20 33 M6; Wl/4 060049-L 6 4.9 20 33 - M5 M6 M8 061050-L 6.1 5 20 33 W5/16 062050-L 6.2 5 20 33 M8 063050-L 6.3 5 20 33 M8 M6 - 070055-L 7 5.5 20 33 M10; W3/8 - M10 080060-L 8 6 20 33 W7/16; PT1/8 080062-L 8 6.2 20 33 - M8 - 080063-L 8 6.3 20 33 M10 M8 - 085065-L 8.5 6.5 20 33 M12 090070-L 9 7 27 33 Wl/2 - M12 090071-L 9 7.1 27 33 M12 100080-L 10 8 27 33 - M10 - M10 - 105080-L 10.5 8 27 33 M14 110090-L 11 9 27 33 PT1/4 - M14 112090-L 11.2 9 27 33 M14 120090-L 12 9 27 33 W5/8 - M16 125100-L 12.5 10 27 33 M16 - M16 TPD&Mf Length of Tapping Collet L L+60 L+100 45 105 145 j±: 1S0529 cl) mmmmmmwmmmm IS0529 (2) g “d”, TPD316MiiM& 30W = imJtnTjIlo m-. TPD316-028021-105 Note: Please note the length of the tapping collet when you order. For example: TPD316-028021-105 H DEPEK
