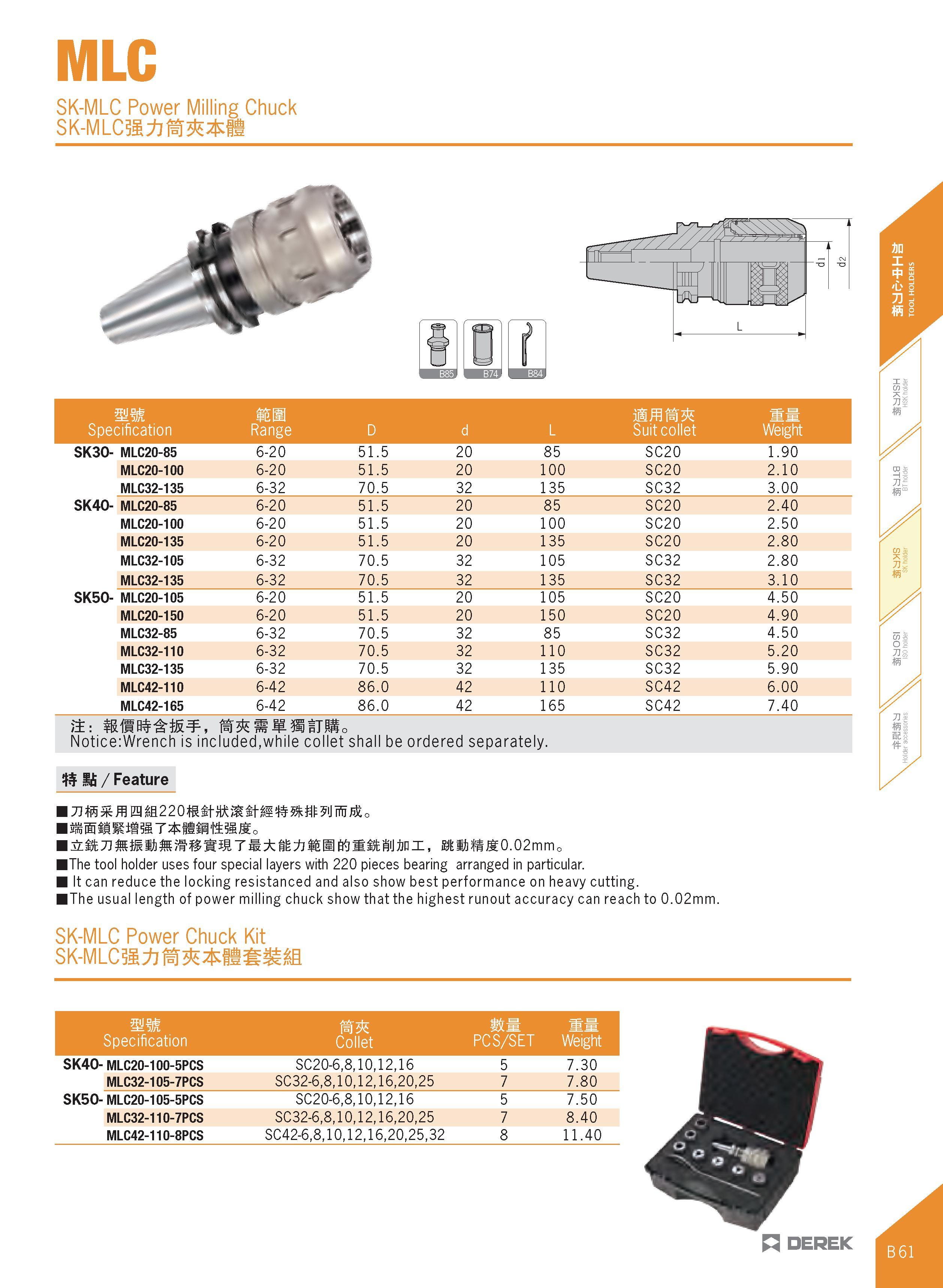

MLC SK-MLC Power Milling Chuck SK-MLC3£ m fl mm Specification mw Range D d L Suit collet Weight SK30- MLC20-85 6-20 51.5 20 85 SC20 1.90 MLC20-100 6-20 51.5 20 100 SC20 2.10 MLC32-135 6-32 70.5 32 135 SC32 3.00 SK40- MLC20-85 6-20 51.5 20 85 SC20 2.40 MLC20-100 6-20 51.5 20 100 SC20 2.50 MLC20-135 6-20 51.5 20 135 SC20 2.80 MLC32-105 6-32 70.5 32 105 SC32 2.80 MLC32-135 6-32 70.5 32 135 SC32 3.10 SK50- MLC20-105 6-20 51.5 20 105 SC20 4.50 MLC20-150 6-20 51.5 20 150 SC20 4.90 MLC32-85 6-32 70.5 32 85 SC32 4.50 MLC32-110 6-32 70.5 32 110 SC32 5.20 MLC32-135 6-32 70.5 32 135 SC32 5.90 MLC42-110 6-42 86.0 42 110 SC42 6.00 MLC42-165 6-42 86.0 42 165 SC42 7.40 j±: Notice:Wrench is included,while collet shall be ordered separately. S li / Feature 7i ffi m m ea m 2 2 0 as. it jk m it 11 m m m f& „ Jt0.02mmo The tool holder uses four special layers with 220 pieces bearing arranged in particular. It can reduce the locking resistanced and also show best performance on heavy cutting. The usual length of power milling chuck show that the highest runout accuracy can reach to 0.02mm. SK-MLC Power Chuck Kit SK-MLC3£ m fl li mm Mm Si Specification Collet PCS/SET Weight SK40- MLC20-100-5PCS SC20-6.8,10,12,16 5 7.30 MLC32-105-7PCS SC32-6,8,10,12,16,20,25 7 7.80 MLC20-105-5PCS SC20-6,8,10,12,16 5 7.50 MLC32-110-7PCS SC32-6,8,10,12,16,20,25 7 8.40 MLC42-110-8PCS SC42-6,8,10,12,16,20,25,32 8 11.40
