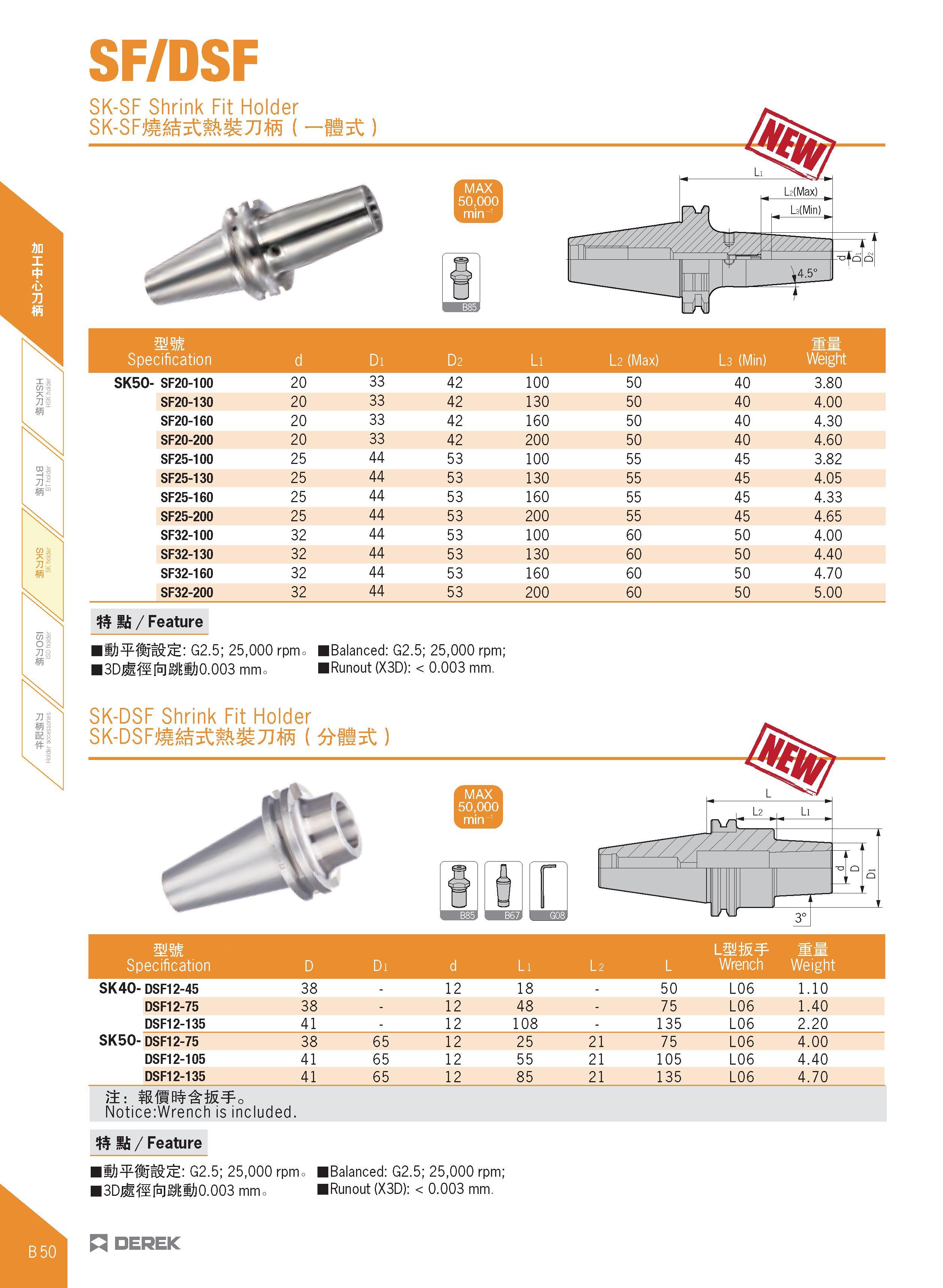

SF/DSF mm Specification d Di D2 Li l 2 (Max) l 3 (Min) Ww Weight SK50- SF20-100 20 33 42 100 50 40 3.80 SF20-130 20 33 42 130 50 40 4.00 SF20-160 20 33 42 160 50 40 4.30 SF20-200 20 33 42 200 50 40 4.60 SF25-100 25 44 53 100 55 45 3.82 SF25-130 25 44 53 130 55 45 4.05 SF25-160 25 44 53 160 55 45 4.33 SF25-200 25 44 53 200 55 45 4.65 SF32-100 32 44 53 100 60 50 4.00 SF32-130 32 44 53 130 60 50 4.40 SF32-160 32 44 53 160 60 50 4.70 SF32-200 32 44 53 200 60 50 5.00 G2.5; 25,000 rprrio BBalanced: G2.5; 25,000 rpm; 3Djfi fr l-JS j0.003 mm. BRunout (X3D): < 0.003 mm. SK-DSF Shrink Fit Holder SK-DSFtt&smSTJffi () mm Specification D Di d Li L 2 L imm Wrench Weight SK40- DSF12-45 38 - 12 18 - 50 L06 1.10 DSF12-75 38 - 12 48 - 75 L06 1.40 DSF12-135 41 - 12 108 - 135 L06 2.20 SK50- DSF12-75 38 65 12 25 21 75 L06 4.00 DSF12-105 41 65 12 55 21 105 L06 4.40 DSF12-135 41 65 12 85 21 135 L06 4.70 j±: Notice:Wrench is included. S li / Feature lS)¥iil£ : G2.5; 25,000 rpmo 13DjS fr011)0.003 mm. iBalanced: G2.5; 25,000 rpm; iRunout (X3D): < 0.003 mm. n DEREK
