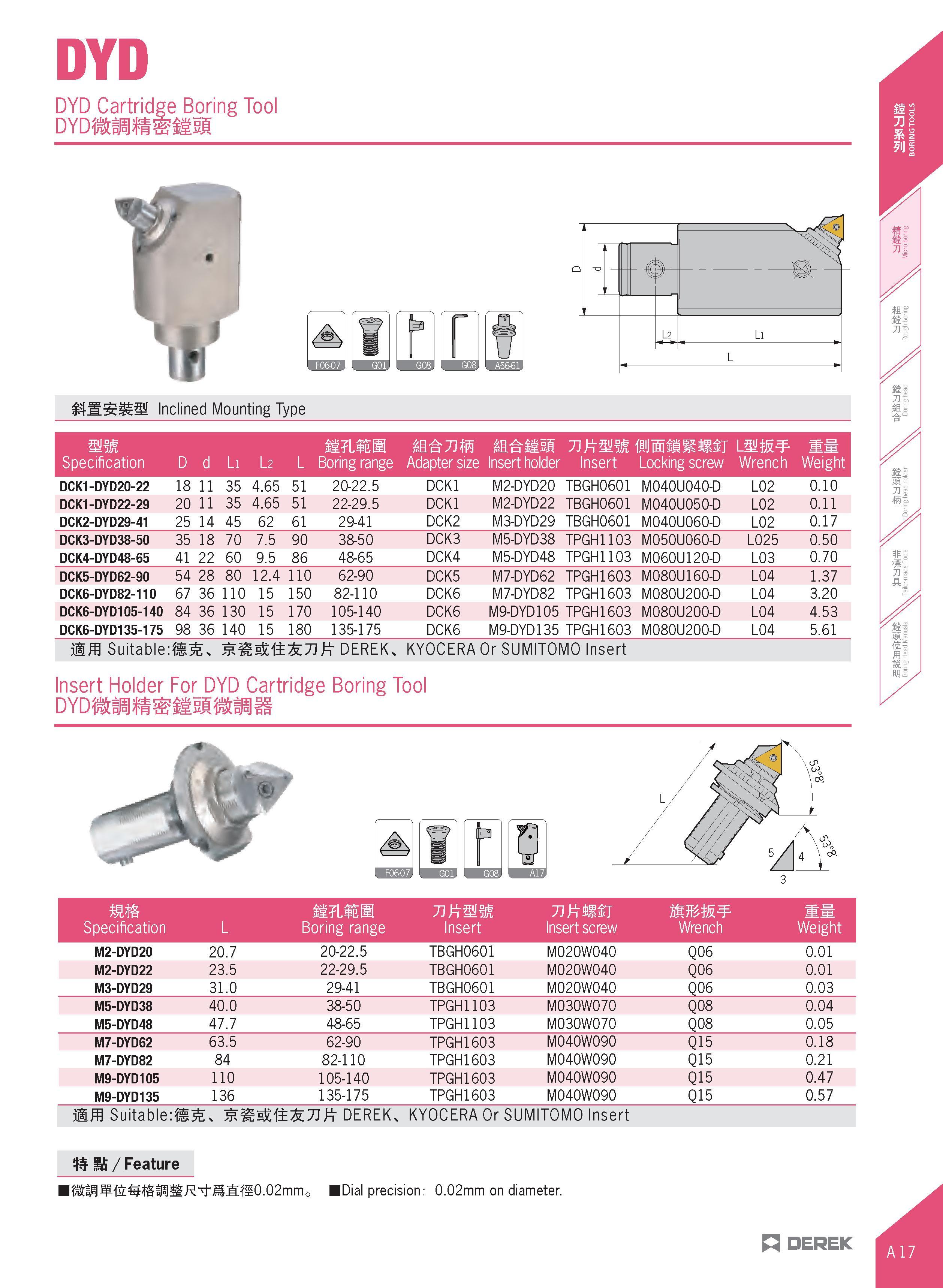

DYD DYD Cartridge Boring Tool DYD ftilisI aiaiM Inclined Mounting Type mm fULffiHI li-niisl nxmm tmmmmij usf ii Specification D d Li l 2 L Boring range Adapter size Insert holder Insert Locking screw Wrench Weight DCK1-DYD20-22 18 11 35 4.65 51 20-22.5 DCK1 M2-DYD20 TBGH0601 M040U040-D L02 0.10 DCK1-DYD22-29 20 11 35 4.65 51 22-29.5 DCK1 M2-DYD22 TBGH0601 M040U050-D L02 0.11 DCK2-DYD29-41 25 14 45 62 61 29-41 DCK2 M3-DYD29 TBGH0601 M040U060-D L02 0.17 DCK3-DYD38-50 35 18 70 7.5 90 38-50 DCK3 M5-DYD38 TPGH1103 M050U060-D L025 0.50 DCK4-DYD48-65 41 22 60 9.5 86 48-65 DCK4 M5-DYD48 TPGH1103 M060U120-D L03 0.70 DCK5-DYD62-90 54 28 80 12.4 110 62-90 DCK5 M7-DYD62 TPGH1603 M080U160-D L04 1.37 DCK6-DYD82-110 67 36 110 15 150 82-110 DCK6 M7-DYD82 TPGH1603 M080U200-D L04 3.20 DCK6-DYD105-140 84 36 130 15 170 105-140 DCK6 M9-DYD105 TPGH1603 M080U200-D L04 4.53 DCK6-DYD135-175 98 36 140 15 180 135-175 DCK6 M9-DYD135 TPGH1603 M080U200-D L04 5.61 MM Suitable:fl£, DEREK, KYOCERA Or SUMITOMO Insert Insert Holder For DYD Cartridge Boring Tool DYD s i fit5s1 Hi sl 'gf Specification L HfLfiiH Boring range uxrnm Insert Insert screw tmw Wrench Weight M2-DYD20 20.7 20-22.5 TBGH0601 M020W040 Q06 0.01 M2-DYD22 23.5 22-29.5 TBGH0601 M020W040 Q06 0.01 M3-DYD29 31.0 29-41 TBGH0601 M020W040 006 0.03 M5-DYD38 40.0 38-50 TPGH1103 M030W070 Q08 0.04 M5-DYD48 47.7 48-65 TPGH1103 M030W070 Q08 0.05 M7-DYD62 63.5 62-90 TPGH1603 M040W090 Q15 0.18 M7-DYD82 84 82-110 TPGH1603 M040W090 Q15 0.21 M9-DYD105 110 105-140 TPGH1603 M040W090 Q15 0.47 M9-DYD135 136 135-175 TPGH1603 M040W090 Q15 0.57 SuitableiflS, DEREK, KYOCERA Or SUMITOMO Insert S IS / Feature Dial precision: 0.02mm on diameter. DEREK
