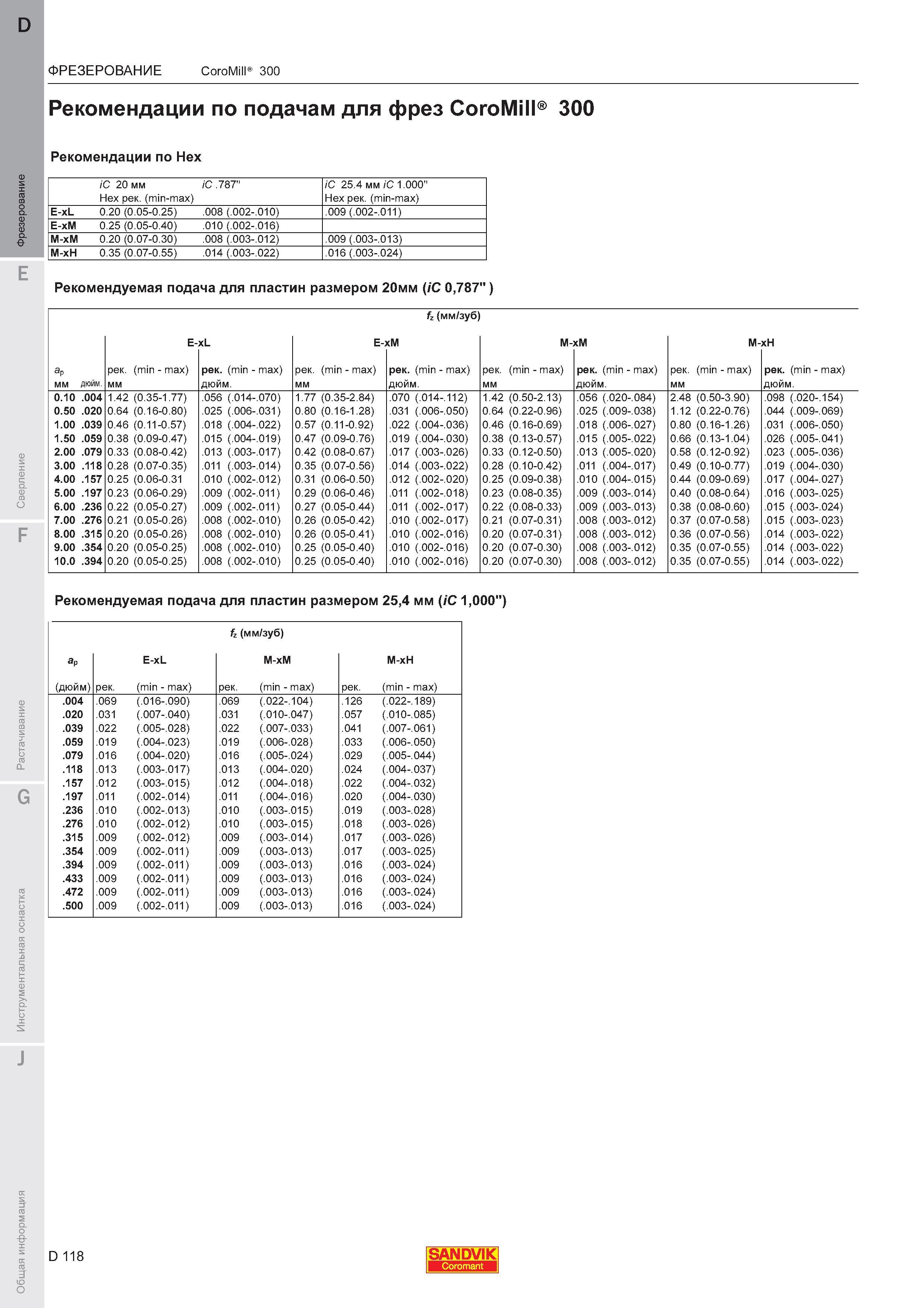

122 Каталог SANDVIK COROMANT 2011 Вращающийся металлорежущий инструмент и оснастка Стр.D118

Каталог SANDVIK COROMANT 2011 Вращающийся инструмент Стр. D118 0122 Lab2u

ФРЕЗЕРОВАНИЕ CoroMill 300 Рекомендации по подачам для фрез CoroMill 300 Рекомендации по Hex iC 20 мм Hex рек. (min-max) iC .787" iC 25.4 мм iC 1.000" Hex рек. (min-max) E-xL 0.20 (0.05-0.25) .008 (.002-.010) .009 (.002-.011) E-xM 0.25 (0.05-0.40) .010 (.002-.016) M-xM 0.20 (0.07-0.30) .008 (.003-.012) .009 (.003-.013) M-xH 0.35 (0.07-0.55) .014 (.003-.022) .016 (.003-.024) Рекомендуемая подача для пластин размером 20мм (iC 0787" ) f (мм зуб) E- xL E- xM M- xM M- xH a рек. (min - max) рек. (min - max) рек. (min - max) рек. (min - max) рек. (min - max) рек. (min - max) рек. (min - max) рек. (min - max) мм дюйм. мм дюйм. мм дюйм. мм дюйм. мм дюйм. 0.10 .004 1.42 (0.35-1.77) .056 (.014-.070) 1.77 (0.35-2.84) .070 (.014-. 112) 1.42 (0.50-2.13) .056 (.020-.084) 2.48 (0.50-3.90) .098 (.020-.154) 0.50 .020 0.64 (0.16-0.80) .025 (.006-.031) 0.80 (0.16-1.28) .031 (.006-.050) 0.64 (0.22-0.96) .025 (.009-.038) 1.12 (0.22-0.76) .044 (.009-.069) 1.00 .039 0.46 (0.11-0.57) .018 (.004-.022) 0.57 (0.11-0.92) .022 (.004-.036) 0.46 (0.16-0.69) .018 (.006-.027) 0.80 (0.16-1.26) .031 (.006-.050) 1.50 .059 0.38 (0.09-0.47) .015 (.004-.019) 0.47 (0.09-0.76) .019 (.004-.030) 0.38 (0.13-0.57) .015 (.005-.022) 0.66 (0.13-1.04) .026 (.005-.041) 2.00 .079 0.33 (0.08-0.42) .013 (.003-.017) 0.42 (0.08-0.67) .017 (.003-.026) 0.33 (0.12-0.50) .013 (.005-.020) 0.58 (0.12-0.92) .023 (.005-.036) 3.00 .118 0.28 (0.07-0.35) .011 (.003-.014) 0.35 (0.07-0.56) .014 (.003-.022) 0.28 (0.10-0.42) .011 (.004-.017) 0.49 (0.10-0.77) .019 (.004-.030) 4.00 .157 0.25 (0.06-0.31 .010 (.002-.012) 0.31 (0.06-0.50) .012 (.002-.020) 0.25 (0.09-0.38) .010 (.004-.015) 0.44 (0.09-0.69) .017 (.004-.027) 5.00 .197 0.23 (0.06-0.29) .009 (.002-.011) 0.29 (0.06-0.46) .011 (.002-.018) 0.23 (0.08-0.35) .009 (.003-.014) 0.40 (0.08-0.64) .016 (.003-.025) 6.00 .236 0.22 (0.05-0.27) .009 (.002-.011) 0.27 (0.05-0.44) .011 (.002-.017) 0.22 (0.08-0.33) .009 (.003-.013) 0.38 (0.08-0.60) .015 (.003-.024) 7.00 .276 0.21 (0.05-0.26) .008 (.002-.010) 0.26 (0.05-0.42) .010 (.002-.017) 0.21 (0.07-0.31) .008 (.003-.012) 0.37 (0.07-0.58) .015 (.003-.023) 8.00 .315 0.20 (0.05-0.26) .008 (.002-.010) 0.26 (0.05-0.41) .010 (.002-.016) 0.20 (0.07-0.31) .008 (.003-.012) 0.36 (0.07-0.56) .014 (.003-.022) 9.00 .354 0.20 (0.05-0.25) .008 (.002-.010) 0.25 (0.05-0.40) .010 (.002-.016) 0.20 (0.07-0.30) .008 (.003-.012) 0.35 (0.07-0.55) .014 (.003-.022) 10.0 .394 0.20 (0.05-0.25) .008 (.002-.010) 0.25 (0.05-0.40) .010 (.002-.016) 0.20 (0.07-0.30) .008 (.003-.012) 0.35 (0.07-0.55) .014 (.003-.022) Рекомендуемая подача для пластин размером 254 мм (iC 1000") G f (мм зуб) ap (дюйм) рек. E-xL (min - max) рек. M-xM (min - max) рек. M-xH (min - max) .004 .069 (.016-.090) .069 (.022-.104) .126 (.022-.189) .020 .031 (.007-.040) .031 (.010-.047) .057 (.010-.085) .039 .022 (.005-.028) .022 (.007-.033) .041 (.007-.061) .059 .019 (.004-.023) .019 (.006-.028) .033 (.006-.050) .079 .016 (.004-.020) .016 (.005-.024) .029 (.005-.044) .118 .013 (.003-.017) .013 (.004-.020) .024 (.004-.037) .157 .012 (.003-.015) .012 (.004-.018) .022 (.004-.032) .197 .011 (.002-.014) .011 (.004-.016) .020 (.004-.030) .236 .010 (.002-.013) .010 (.003-.015) .019 (.003-.028) .276 .010 (.002-.012) .010 (.003-.015) .018 (.003-.026) .315 .009 (.002-.012) .009 (.003-.014) .017 (.003-.026) .354 .009 (.002-.011) .009 (.003-.013) .017 (.003-.025) .394 .009 (.002-.011) .009 (.003-.013) .016 (.003-.024) .433 .009 (.002-.011) .009 (.003-.013) .016 (.003-.024) .472 .009 (.002-.011) .009 (.003-.013) .016 (.003-.024) .500 .009 (.002-.011) .009 (.003-.013) .016 (.003-.024) О D 118 SANDVIK
