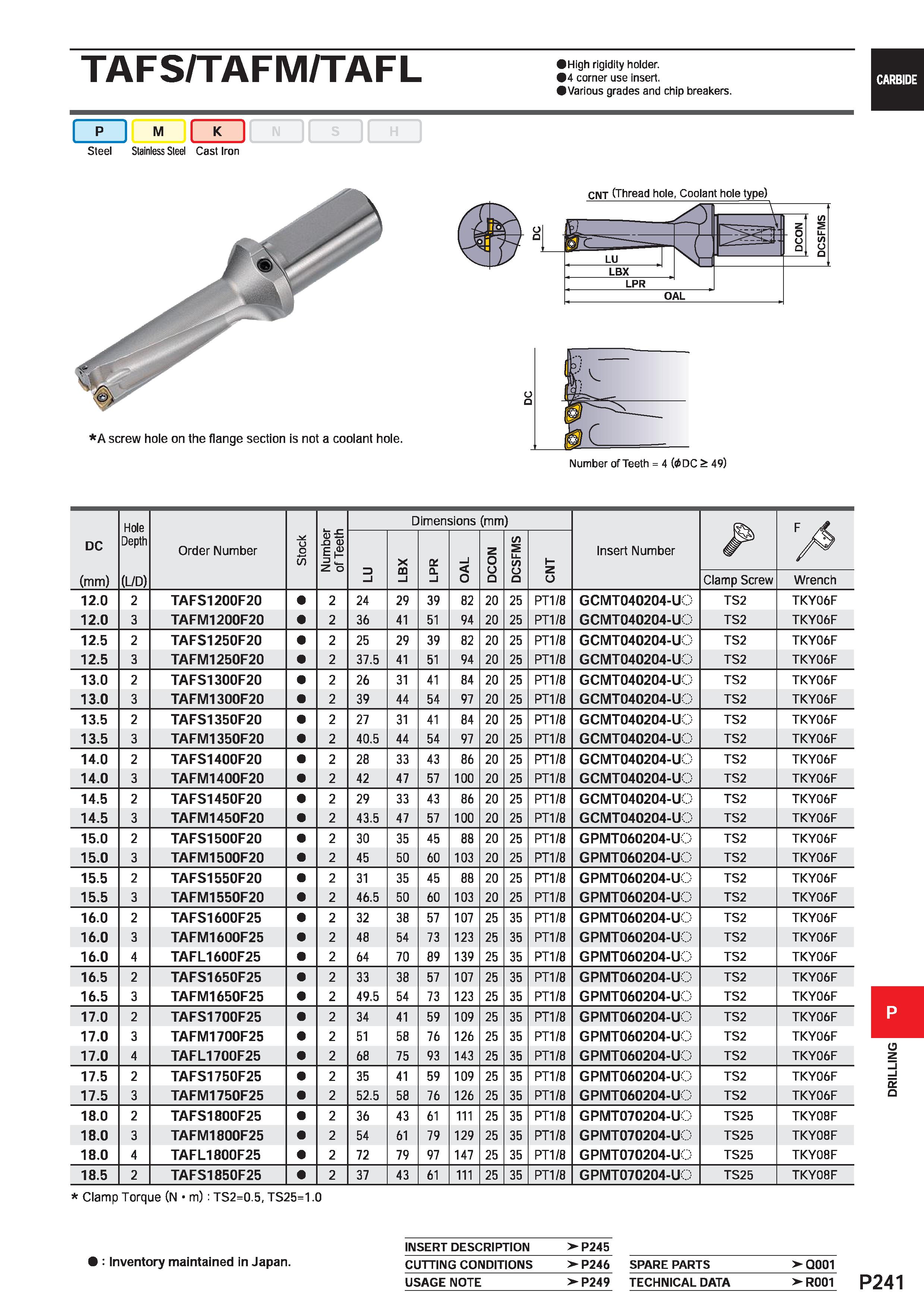

T ACC /T” A f M /T A Cl High rigidity holder. I 1 I m 1 IVI I m 1 4 corner use insert. Various grades and chip breakers. I P I M m Steel Stainless Steel Cast Iron CNT (Thread hole, Coolant hole type) A screw hole on the flange section is not a coolant hole. Number of Teeth = 4 ( DC > 49) DC (mm) Hole Depth (L/D) Order Number u o 05 Number of Teeth Dimensions (mm Insert Number FA 3 l LBX LPR i O DCON DCSFMS CNT Clamp Screw Wrench 12.0 2 TAFS1200F20 2 24 29 39 82 20 25 PT1/8 GCMT040204-UO TS2 TKY06F 12.0 3 TAFM1200F20 2 36 41 51 94 20 25 PT1/8 GCMT040204-UG TS2 TKY06F 12.5 2 TAFS1250F20 2 25 29 39 82 20 25 PT1/8 GCMT040204-UG TS2 TKY06F 12.5 3 TAFM1250F20 2 37.5 41 51 94 20 25 PT1/8 GCMT040204-UC) TS2 TKY06F 13.0 2 TAFS1300F20 2 26 31 41 84 20 25 PT1/8 GCMT040204-UO TS2 TKY06F 13.0 3 TAFM1300F20 2 39 44 54 97 20 25 PT1/8 GCMT040204-U0 TS2 TKY06F 13.5 2 TAFS1350F20 2 27 31 41 84 20 25 PT1/8 GCMT040204-U0 TS2 TKY06F 13.5 3 TAFM1350F20 2 40.5 44 54 97 20 25 PT1/8 GCMT040204-UO TS2 TKY06F 14.0 2 TAFS1400F20 2 28 33 43 86 20 25 PT1/8 GCMT040204-UO TS2 TKY06F 14.0 3 TAFM1400F20 2 42 47 57 100 20 25 PT1/8 GCMT040204-UO TS2 TKY06F 14.5 2 TAFS1450F20 2 29 33 43 86 20 25 PT1/8 GCMT040204-UO TS2 TKY06F 14.5 3 TAFM1450F20 2 43.5 47 57 100 20 25 PT1/8 GCMT040204-UC) TS2 TKY06F 15.0 2 TAFS1500F20 2 30 35 45 88 20 25 PT1/8 GPMT060204-U0 TS2 TKY06F 15.0 3 TAFM1500F20 2 45 50 60 103 20 25 PT1/8 G PMT060204-UO TS2 TKY06F 15.5 2 TAFS1550F20 2 31 35 45 88 20 25 PT1/8 G PMT060204-UO TS2 TKY06F 15.5 3 TAFM1550F20 2 46.5 50 60 103 20 25 PT1/8 G PMT060204-UO TS2 TKY06F 16.0 2 TAFS1600F25 2 32 38 57 107 25 35 PT1/8 GPMT060204-UG TS2 TKY06F 16.0 3 TAFM1600F25 2 48 54 73 123 25 35 PT1/8 GPMT060204-U0 TS2 TKY06F 16.0 4 TAFL1600F25 2 64 70 89 139 25 35 PT1/8 G PMT060204-UO TS2 TKY06F 16.5 2 TAFS1650F25 2 33 38 57 107 25 35 PT1/8 G PMT060204-UO TS2 TKY06F 16.5 3 TAFM1650F25 2 49.5 54 73 123 25 35 PT1/8 G PMT060204-UO TS2 TKY06F 17.0 2 TAFS1700F25 2 34 41 59 109 25 35 PT1/8 G PMT060204-UO TS2 TKY06F 17.0 3 TAFM1700F25 2 51 58 76 126 25 35 PT1/8 GPMT060204-UG TS2 TKY06F 17.0 4 TAFL1700F25 2 68 75 93 143 25 35 PT1/8 G PMT060204-U0 TS2 TKY06F 17.5 2 TAFS1750F25 2 35 41 59 109 25 35 PT1/8 G PMT060204-U0 TS2 TKY06F 17.5 3 TAFM1750F25 2 52.5 58 76 126 25 35 PT1/8 G PMT060204-UO TS2 TKY06F 18.0 2 TAFS1800F25 2 36 43 61 111 25 35 PT1/8 G PMT070204-UO TS25 TKY08F 18.0 3 TAFM1800F25 2 54 61 79 129 25 35 PT1/8 G PMT070204-UO TS25 TKY08F 18.0 4 TAFL1800F25 2 72 79 97 147 25 35 PT1/8 G PMT070204-UO TS25 TKY08F 18.5 2 TAFS1850F25 2 37 43 61 111 25 35 PT1/8 G PMT070204-UO TS25 TKY08F Clamp Torque (N m) : TS2=0.5, TS25=1.0 CARBIDE : Inventory maintained in Japan. INSERT DESCRIPTION > P245 CUTTING CONDITIONS >- P246 SPARE PARTS USAGE NOTE > P249 TECHNICAL DATA > 0001 > R001 P241 DRILLING
