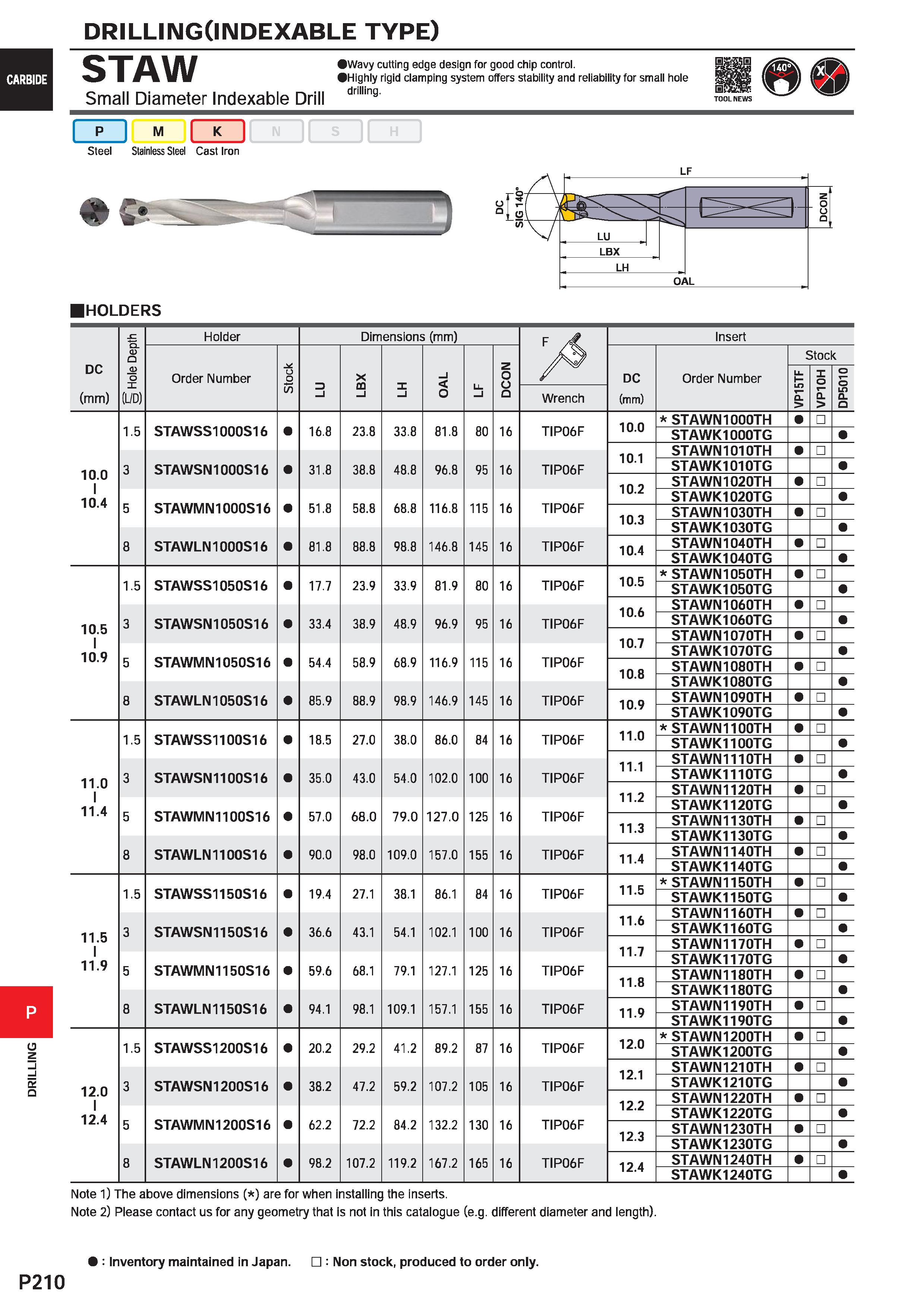

DRILLING CARBIDE DRILLINGClNDEXABLE TYPE) STAW Small Diameter Indexable Drill Wavy cutting edge design for good chip control. Highly rigid clamping system offers stability and reliability for small hole drilling. I P I M S II H Steel Stainless Steel Cast Iron IHOLDERS DC (mm) (L/D) Holder Order Number to Dimensions (mm) x 00 o Wrench Insert DC (mm) Order Number Stock 10.0 I 10.4 1.5 3 5 8 STAWSS1000S16 STAWSN1000S16 STAWM N1000S16 STAWLN1000S16 16.8 31.8 51.8 81.8 23.8 38.8 58.8 33.8 48.8 68.8 98.8 81.1 96.1 116.1 146.1 80 95 115 145 TIP06F TIP06F TIP06F TIP06F 10.0 STAWN1000TH STAWK1000TG 10.1 STAWN1010TH STAWK1010TG 10.2 STAWN1020TH STAWK1020TG 10.3 STAWN1030TH STAWK1030TG 10.4 STAWN1040TH STAWK1040TG 10.5 I 10.9 1.5 3 5 8 STAWSS1050S16 STAWSN1050S16 STAWMN1050S16 STAWLN1050S16 17.7 33.4 54.4 85.9 23.9 38.9 58.9 88.9 33.9 48.9 68.9 98.9 81.9 96.9 116.9 146.9 80 95 115 145 TIP06F TIP06F TIP06F TIP06F 10.5 STAWN1050TH STAWK1050TG 10.6 STAWN1060TH STAWK1060TG 10.7 STAWN1070TH STAWK1070TG 10.8 STAWN1080TH STAWK1080TG 10.9 STAWN1090TH STAWK1090TG 11.0 I 11.4 1.5 3 5 8 STAWSS1100S16 STAWSN1100S16 STAWMN1100S16 STAWLN1100S16 18.5 35.0 57.0 90.0 27.0 43.0 68.0 98.0 38.0 54.0 79.0 109.0 86.0 102.0 127.0 157.0 84 100 125 155 TIP06F TIP06F TIP06F TIP06F 11.0 STAWN1100TH STAWK1100TG 11.1 STAWN1110TH STAWK1110TG 11.2 STAWN1120TH STAWK1120TG 11.3 STAWN1130TH STAWK1130TG 11.4 STAWN1140TH STAWK1140TG 11.5 I 11.9 1.5 3 5 8 STAWSS1150S16 STAWSN1150S16 STAWMN1150S16 STAWLN1150S16 19.4 36.6 59.6 94.1 27.1 43.1 68.1 98.1 38.1 54.1 79.1 109.1 86.1 102.1 127.1 157.1 84 100 125 155 TIP06F TIP06F TIP06F TIP06F 11.5 STAWN1150TH STAWK1150TG 11.6 STAWN1160TH STAWK1160TG 11.7 STAWN1170TH STAWK1170TG 11.8 STAWN1180TH STAWK1180TG 11.9 STAWN1190TH STAWK1190TG 12.0 I 12.4 1.5 3 5 8 STAWSS1200S16 STAWSN1200S16 STAWM N1200S16 STAWLN1200S16 20.2 38.2 62.2 98.2 29.2 47.2 72.2 107.2 41.2 59.2 84.2 119.2 89.2 107.2 132.2 167.2 87 105 130 165 TIP06F TIP06F TIP06F TIP06F 12.0 STAWN1200TH STAWK1200TG 12.1 STAWN1210TH STAWK1210TG 12.2 STAWN1220TH STAWK1220TG 12.3 STAWN1230TH STAWK1230TG 12.4 STAWN1240TH STAWK1240TG Note 1) The above dimensions ( ) are for when installing the inserts. Note 2) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). : Inventory maintained in Japan. : Non stock, produced to order only. P210
