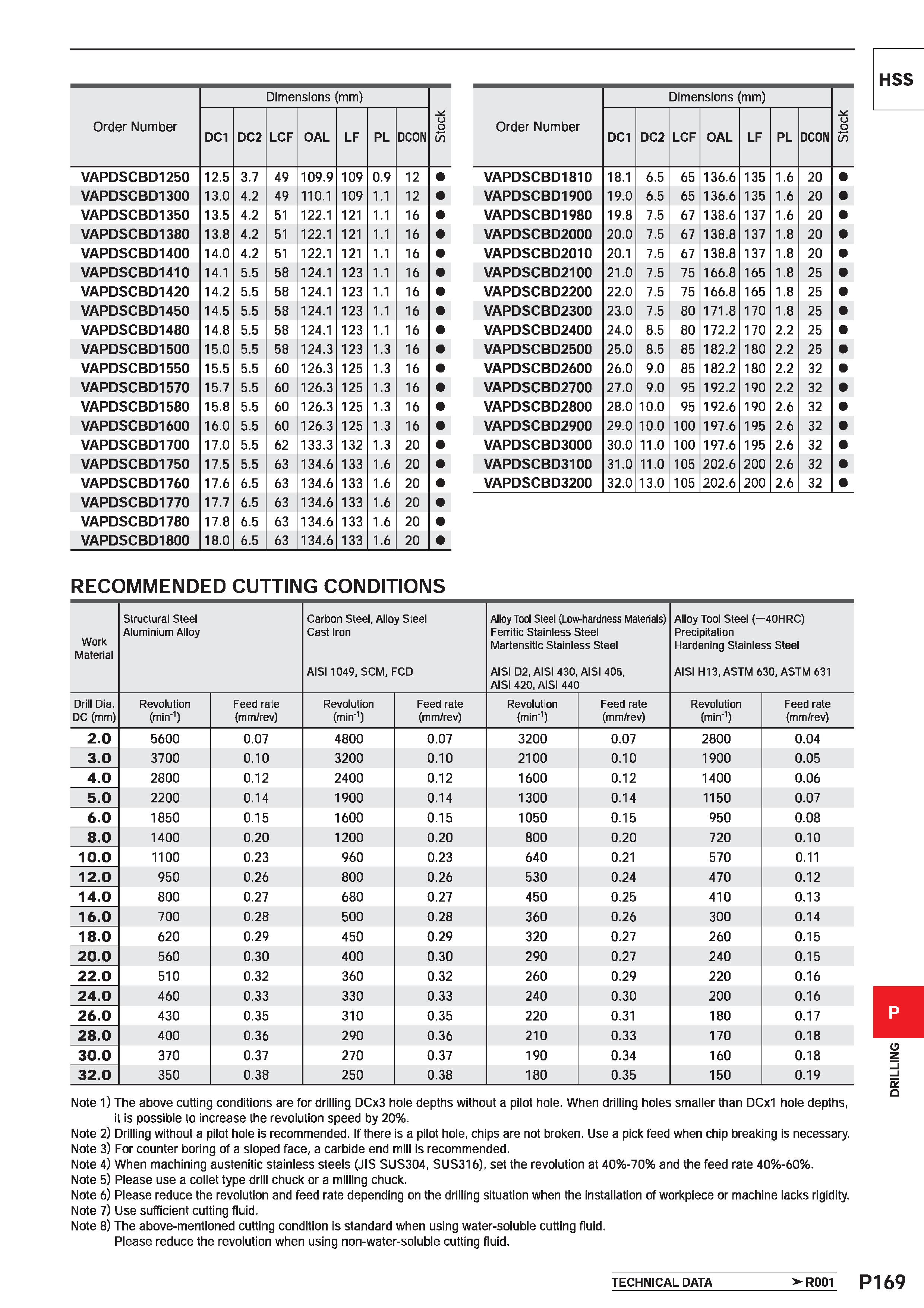

Order Number Dimensions (mm) £5 DC1 DC2 LCF OAL LF PL DCON VAPDSCBD1810 18.1 6.5 65 136.6 135 1.6 20 VAPDSCBD1900 19.0 6.5 65 136.6 135 1.6 20 VAPDSCBD1980 19.8 7.5 67 138.6 137 1.6 20 VAPDSCBD2000 20.0 7.5 67 138.8 137 1.8 20 VAPDSCBD2010 20.1 7.5 67 138.8 137 1.8 20 VAPDSCBD2100 21.0 7.5 75 166.8 165 1.8 25 VAPDSCBD2200 22.0 7.5 75 166.8 165 1.8 25 VAPDSCBD2300 23.0 7.5 80 171.8 170 1.8 25 VAPDSCBD2400 24.0 8.5 80 172.2 170 2.2 25 VAPDSCBD2500 25.0 8.5 85 182.2 180 2.2 25 VAPDSCBD2600 26.0 9.0 85 182.2 180 2.2 32 VAPDSCBD2700 27.0 9.0 95 192.2 190 2.2 32 VAPDSCBD2800 28.0 10.0 95 192.6 190 2.6 32 VAPDSCBD2900 29.0 10.0 100 197.6 195 2.6 32 VAPDSCBD3000 30.0 11.0 100 197.6 195 2.6 32 VAPDSCBD3100 31.0 11.0 105 202.6 200 2.6 32 VAPDSCBD3200 32.0 13.0 105 202.6 200 2.6 32 Order Number Dimensions (mm) u o 55 DC1 DC2 LCF OAL LF PL DCON VAPDSCBD1250 12.5 3.7 49 109.9 109 0.9 12 VAPDSCBD1300 13.0 4.2 49 110.1 109 1.1 12 VAPDSCBD1350 13.5 4.2 51 122.1 121 1.1 16 VAPDSCBD1380 13.8 4.2 51 122.1 121 1.1 16 VAPDSCBD1400 14.0 4.2 51 122.1 121 1.1 16 VAPDSCBD1410 14.1 5.5 58 124.1 123 1.1 16 VAPDSCBD1420 14.2 5.5 58 124.1 123 1.1 16 VAPDSCBD1450 14.5 5.5 58 124.1 123 1.1 16 VAPDSCBD1480 14.8 5.5 58 124.1 123 1.1 16 VAPDSCBD1500 15.0 5.5 58 124.3 123 1.3 16 VAPDSCBD1550 15.5 5.5 60 126.3 125 1.3 16 VAPDSCBD1570 15.7 5.5 60 126.3 125 1.3 16 VAPDSCBD1580 15.8 5.5 60 126.3 125 1.3 16 VAPDSCBD1600 16.0 5.5 60 126.3 125 1.3 16 VAPDSCBD1700 17.0 5.5 62 133.3 132 1.3 20 VAPDSCBD1750 17.5 5.5 63 134.6 133 1.6 20 VAPDSCBD1760 17.6 6.5 63 134.6 133 1.6 20 VAPDSCBD1770 17.7 6.5 63 134.6 133 1.6 20 VAPDSCBD1780 17.8 6.5 63 134.6 133 1.6 20 VAPDSCBD1800 18.0 6.5 63 134.6 133 1.6 20 RECOMMENDED CUTTING CONDITIONS Work Material Structural Steel Aluminium Alloy Carbon Steel, Alloy Steel Cast Iron AIS11049, SCM, FCD Alloy Tool Steel (Low-hardness Materials) Ferritic Stainless Steel Martensitic Stainless Steel AISI D2, AISI 430, AISI 405, AISI 420, AISI 440 Alloy Tool Steel (-40HRC) Precipitation Hardening Stainless Steel AISI H13, ASTM 630, ASTM 631 Drill Dia. DC (mm) Revolution (min'1) Feed rate (mm/rev) Revolution (min'1) Feed rate (mm/rev) Revolution (min'1) Feed rate (mm/rev) Revolution (min'1) Feed rate (mm/rev) 2.0 5600 0.07 4800 0.07 3200 0.07 2800 0.04 3.0 3700 0.10 3200 0.10 2100 0.10 1900 0.05 4.0 2800 0.12 2400 0.12 1600 0.12 1400 0.06 5.0 2200 0.14 1900 0.14 1300 0.14 1150 0.07 6.0 1850 0.15 1600 0.15 1050 0.15 950 0.08 8.0 1400 0.20 1200 0.20 800 0.20 720 0.10 10.0 1100 0.23 960 0.23 640 0.21 570 0.11 12.0 950 0.26 800 0.26 530 0.24 470 0.12 14.0 800 0.27 680 0.27 450 0.25 410 0.13 16.0 700 0.28 500 0.28 360 0.26 300 0.14 18.0 620 0.29 450 0.29 320 0.27 260 0.15 20.0 560 0.30 400 0.30 290 0.27 240 0.15 22.0 510 0.32 360 0.32 260 0.29 220 0.16 24.0 460 0.33 330 0.33 240 0.30 200 0.16 26.0 430 0.35 310 0.35 220 0.31 180 0.17 28.0 400 0.36 290 0.36 210 0.33 170 0.18 30.0 370 0.37 270 0.37 190 0.34 160 0.18 32.0 350 0.38 250 0.38 180 0.35 150 0.19 Note 1) The above cutting conditions are for drilling DCx3 hole depths without a pilot hole. When drilling holes smaller than DCx1 hole depths, it is possible to increase the revolution speed by 20%. Note 2) Drilling without a pilot hole is recommended. If there is a pilot hole, chips are not broken. Use a pick feed when chip breaking is necessary. Note 3) For counter boring of a sloped face, a carbide end mill is recommended. Note 4) When machining austenitic stainless steels (JIS SUS304, SUS316), set the revolution at 40%-70% and the feed rate 40%-60%. Note 5) Please use a collet type drill chuck or a milling chuck. Note 6) Please reduce the revolution and feed rate depending on the drilling situation when the installation of workpiece or machine lacks rigidity. Note 7) Use sufficient cutting fluid. Note 8) The above-mentioned cutting condition is standard when using water-soluble cutting fluid. Please reduce the revolution when using non-water-soluble cutting fluid. TECHNICAL DATA > R001
